Martindale TEK 200 Magnetic Field Detector ±10mT, 100V ac to 600V ac With RS Calibration

  • RS-artikelnummer 716-1064
  • Tillv. art.nr RSTEK200
  • Tillverkare / varumärke Martindale
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

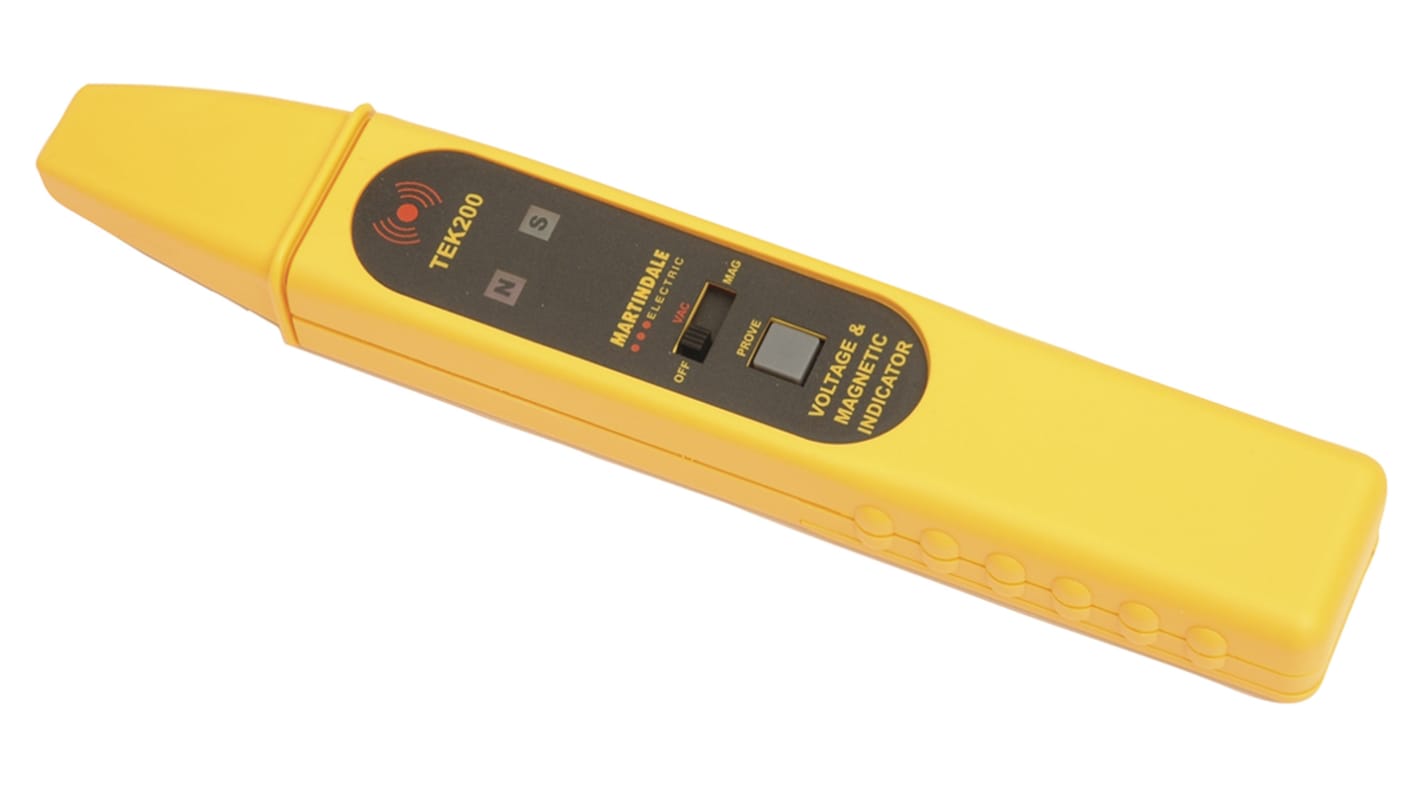

Martindale TEK200 Non-Contact Voltage and Magnetic Field Detector

A non-contact voltage detector with the additional ability to detect magnetic fields, the TEK200 has audible warning and a self-test feature. Sleek in design and designed to be durable the detector can operate in an altitude of up to 2000m.
Suitable for permanent magnets and for indication of the polarity of machine windings, it has a magnetic sensitivity of ±10 mT. Indicating the operation of solenoid valves in pneumatic and hydraulic control equipment, testing relays or solenoids in a wide range of controls it has a wide variety of applications.

Features and Benefits:

• Senses AC voltages from 100 - 600V
• Detects electrical field
• Eliminates need for separate proving unit
• Self-testing
• Displays polarity of magnetic fields
• Powered by PP3 battery (RS Stock No. 394-9059)

How do magnetic field sensors and detectors work?

Magnetic field sensors are able to detect changes such as direction, strength or flux in a magnetic field. Magnetic field detectors are able to detect fields, such as unipolar, bipolar and electro-magnetic. There are many types of technology used for this and they all have different approaches. Some record the resistance, some have coils surrounding magnetic material, another measures fields against an internal magnet based response that runs through a fluxing set of parameters. Some devices contain switches, when the state of the switch is changed for example from open to closed, a magnetic field has been detected. The most commonly known technologies are Fluxgate, Hall Effect, Magnetoresistive, magnetoinductive and SQUID. (Superconducting quantum interference devices)

Specifikationer
Attribute Value
Indicator Type Magnetic Field, Voltage
Magnetic Sensitivity ±10mT
Calibrated RSCAL
Battery Type 9V
Audible Tone Yes
Power Source Battery
Safety Category CAT III 1000 V, CAT IV 600 V
Dimensions 32 x 22 x 202mm
Weight 150g
Height 202mm
Length 32mm
Maximum Detection Voltage 600V ac
Maximum Operating Temperature +50°C
Safety Category Voltage 600 V, 1000 V
Safety Category Level CAT III, CAT IV
Model Number p TEK 200
Minimum Detection Voltage 100V ac
Minimum Operating Temperature 0°C
Width 22mm
