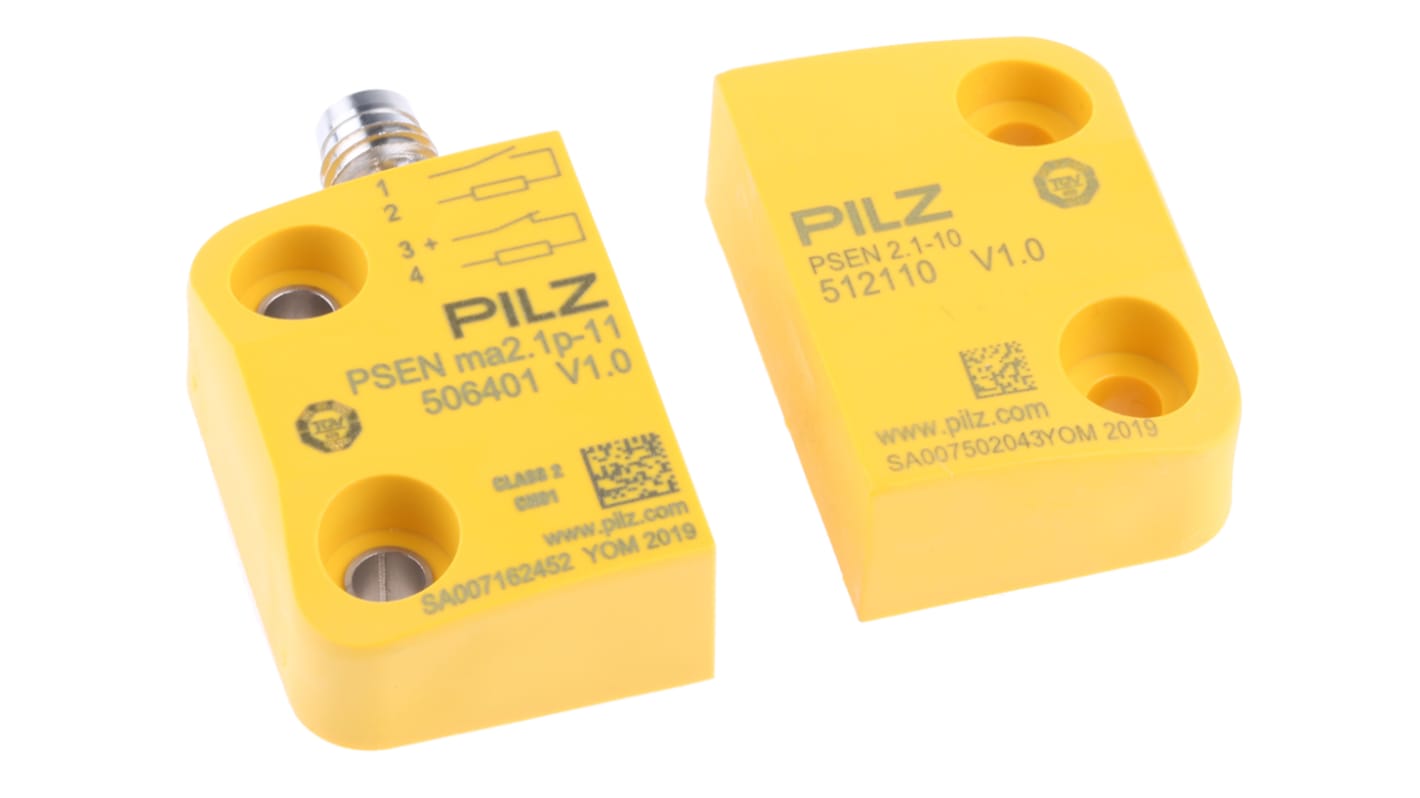

PSENmag Magnetic Safety Switch, Plastic, 24 V dc

  • RS-artikelnummer 824-4918
  • Tillv. art.nr 506406
  • Tillverkare / varumärke Pilz
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CH
Produktdetaljer

Pilz Non-contact Switch

The Pilz PSENmag series non-contact safety switch has an assured switching distance of 3mm. It has 1NO/1NC safety contact. It meets the highest safety requirements and offers a complete solution that is safe and economical.
Supplied with actuator
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENmag), an actuator (PSENmag) and a safety-monitoring module (PNOZ X) is used.
Note:
Only stock nos. 744-8702 and 824-4918 have an LED.

Features and Benefits

Input The supply voltage is 24VDC
Status indicator with LED
Extra signal contact
Connected via a plug connection or with cable
Flexible cable outlet, including connector, so there is no need for an angled connector
Flexible mounting, both the sensor and actuator support every conceivable mounting configuration
Cost effective because of the series connection
Connection type is M8, 4-pin male
Housing material is Plastic
Operating temperature ranges between -25°C and 70°C

Applications

Heavy soiling

Certifications

IP65 rated
IP67 rated
EN954-1 (Cat 4)
EN60204-1
EN60947-5-3
ATEX approved
Electrosuisse certified
CE certified
UL approved
TÜV certified
BG certified
CCC certified

Specifikationer
Attribute Value
Supply Voltage 24 V dc
Safety Contacts NO/NC
Housing Material Plastic
Connection Type M8
Switch Type Square
Range PSENmag
Terminal Type PCB Pin
Switching Distance 3 mm
IP Rating IP67
Actuator Included Yes
Safety Category 4
Depth 13mm
Length 36mm
Width 26mm
Actuator Type Magnetic
Housing Colour Yellow
Dimensions 36 x 26 x 13 mm
Sensor Principle Magnetic
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Pris (ex. moms) Each
611,95 kr
(exkl. moms)
764,94 kr
(inkl. moms)
Enheter
Per unit
1 +
611,95 kr
Nästa dag-leverans inte möjlig
