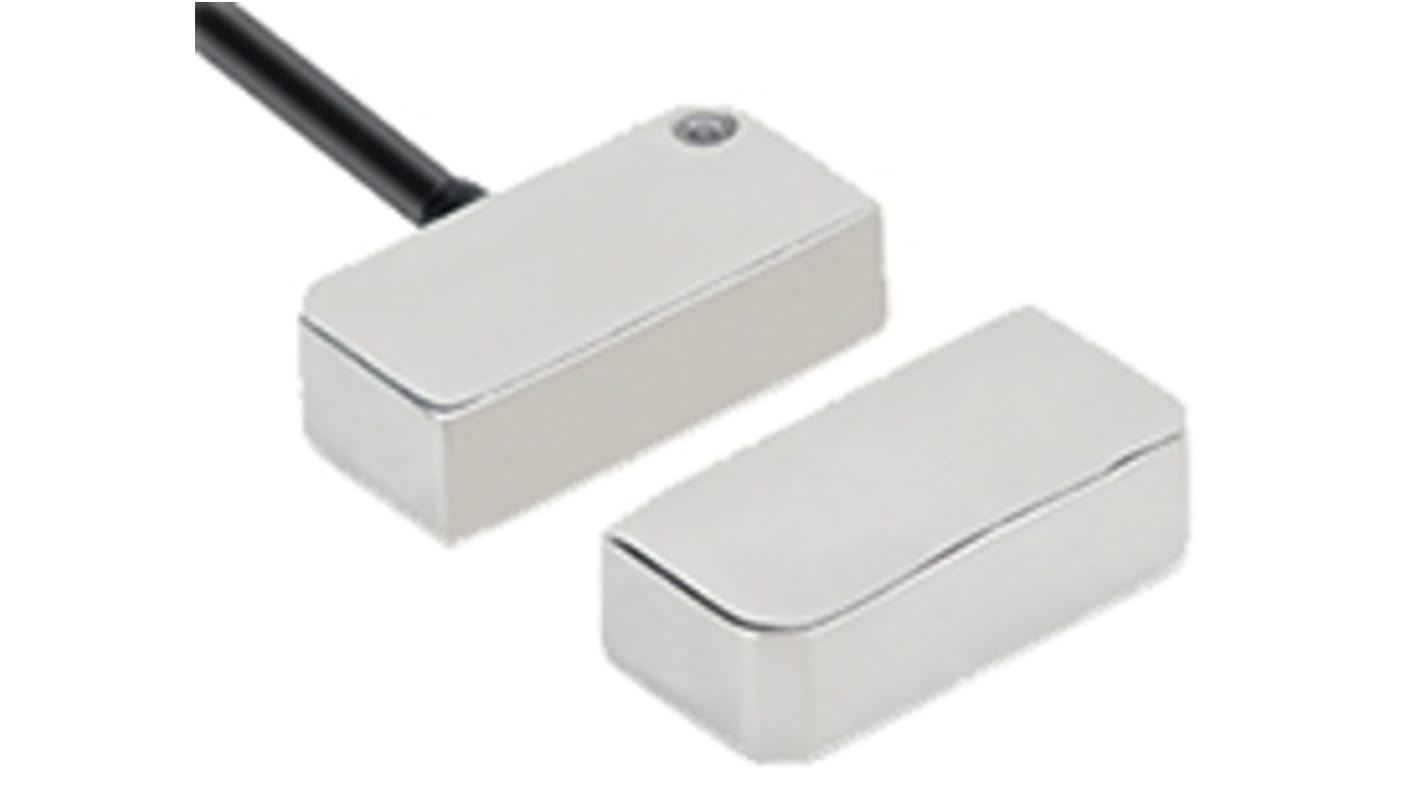

F3S-TGR-N_C Magnetic Safety Switch, Stainless Steel, 24 V dc

  • RS-artikelnummer 820-3847
  • Tillv. art.nr F3S-TGR-NSFC-21-10
  • Tillverkare / varumärke Omron
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

F3S-TGR Non Contact Safety Switch

The F3S-TGR non contact safety switches are designed to interlock hinge, sliding or removable guard doors. Plastic and stainless steel switches are available, the latter are ideally suited to high hygiene demands in the food industry. The switches have a long sensing range to avoid false signals resulting from an ill aligned door, for example.

Non-contact equals no abrasion which means no particles
Excellent coverage of mechanical tolerances
Can operate behind stainless steel fittings
Screw hole covers

F3S-TGR-N_C Switch

Connect up to 3 switches in series
LED for easy diagnosis
Electronic output (potential-free optocoupler output)
IP67 protection

F3S-TGR-N_R Switch

Connect up to 6 switches in series
Reed contacts
IP67 protection

Note

Models F3S-TGR-N_C are coded.
Actuator is included.
For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system.

Standards

EN standards certified by TÜV Rheinland, EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1 conformance.

Specifikationer
Attribute Value
Supply Voltage 24 V dc
Safety Contacts 2NC/NO
Housing Material Stainless Steel
Connection Type Cable
Switch Type Rectangular
Terminal Type 10m cable
Series F3S-TGR-N_C
Switching Distance 10 mm
IP Rating IP69K
Supply Current 50 mA
Actuator Included Yes
Safety Category 4
Sensor Principle Magnetic
Number of Approach Directions 3
Actuator Type Coded
Housing Colour White
3 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
2 300,00 kr
(exkl. moms)
2 875,00 kr
(inkl. moms)
Enheter
Per unit
1 +
2 300,00 kr
