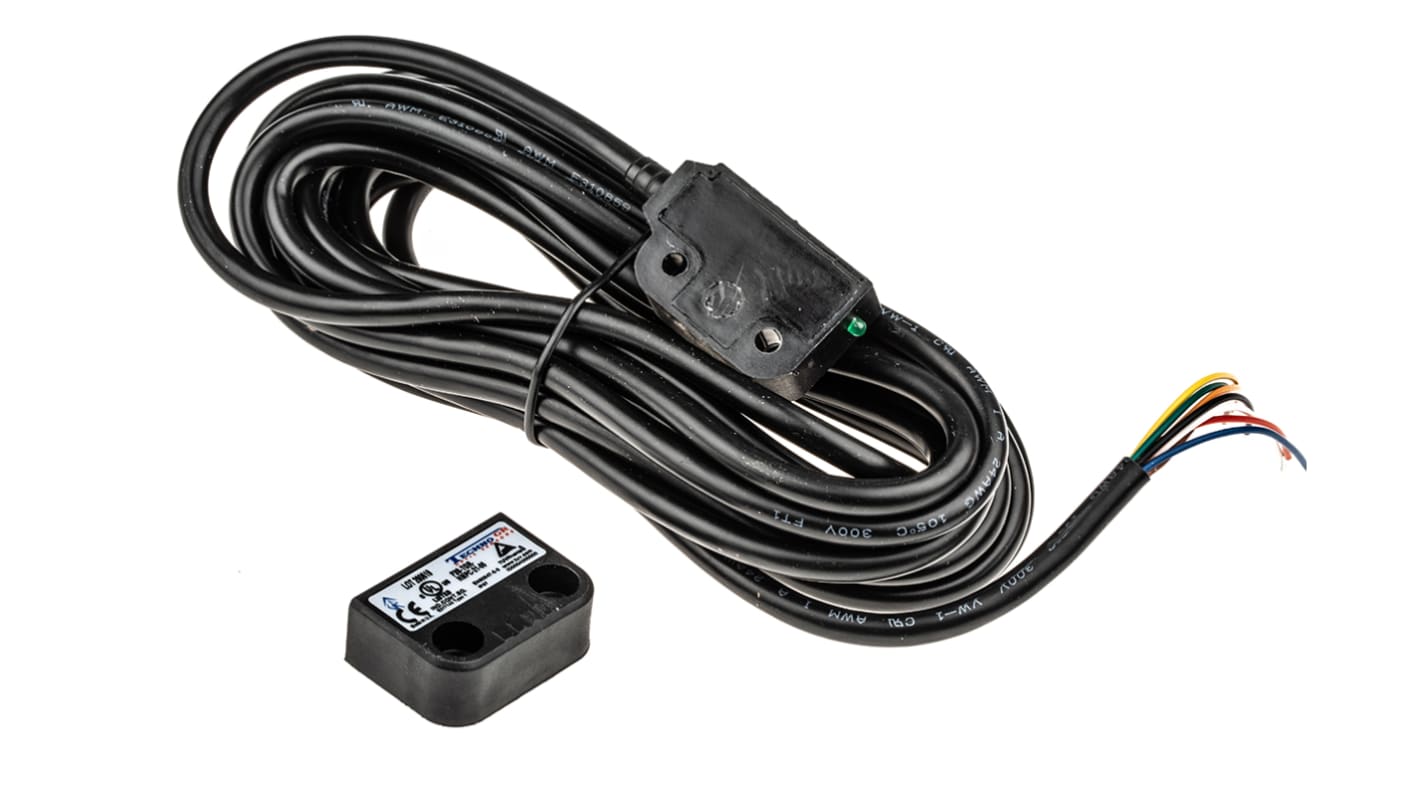

F3S-TGR-N_C Magnetic Safety Switch, Plastic, 24 V dc


38 I lager för leverans inom 1 arbetsdagar
Add to Basket

Pris (ex. moms) Each

1 241,00 kr

(exkl. moms)

1 551,25 kr

(inkl. moms)

Enheter

Lagt till varukorgen

RS-artikelnummer:
757-9250
Tillv. art.nr:
F3S-TGR-NMPC-21-05
Tillverkare / varumärke:
Omron
COO (Country of Origin):
GB
EnheterPer unit
1 +1 241,00 kr

Omron Non-Contact Switch


The Omron F3S-TGR-N_C series non-contact switch has a switching distance of 12mm and 24VDC supply voltage. This is miniature sensors with 5m pre-wired cable connection. It has 2 normally closed contacts and 1 normally open contact. This switch is designed to interlock hinged, sliding or removable guard doors. Both plastic and stainless steel switches are available but the latter is ideally suited to high hygiene demands in the food industry. It has a long sensing range to avoid false signals resulting from an ill-aligned door.
Note:
Models F3S-TGR-N_C are coded. Actuator is included. For a suitable controller see the G9SA or G9SB from Omron or the NE1A DeviceNet system.


Features and Benefits


Contactless operation for no abrasion
Excellent coverage of mechanical tolerances
Can operate behind stainless steel fittings
Screw hole covers


Certifications


IP67 rated
EN 954-1
EN ISO13849-1
EN 60204-1
EN/IEC 60947-5-3
UL 508
CSA C22.2
BS 5304
EN1088-1


AttributeValue
Supply Voltage24 V dc
Safety Contacts2NC/NO
Housing MaterialPlastic
Connection Type5m cable
Switch TypeRectangular
Terminal TypePre-Wired
SeriesF3S-TGR-N_C
Switching Distance12 mm
IP RatingIP67
Actuator IncludedYes
Actuator TypeCoded
Width26mm
Length36mm
Dimensions36 x 26 x 13 mm
Safety Category4
Depth13mm
Number of Approach Directions2
Sensor PrincipleMagnetic
Housing ColourBlack
