PSENmag Magnetic Safety Switch, Plastic, 24 V dc


16 I lager för leverans inom 1 arbetsdagar
999983 Inom 2 arbetsdag(ar) (UK lager)
Add to Basket

Pris (ex. moms) Each

604,25 kr

(exkl. moms)

755,31 kr

(inkl. moms)

Enheter

Lagt till varukorgen

RS-artikelnummer:
619-2830
Tillv. art.nr:
505220
Tillverkare / varumärke:
Pilz

Ej tillämpbart

COO (Country of Origin):
CH
EnheterPer unit
1 +604,25 kr

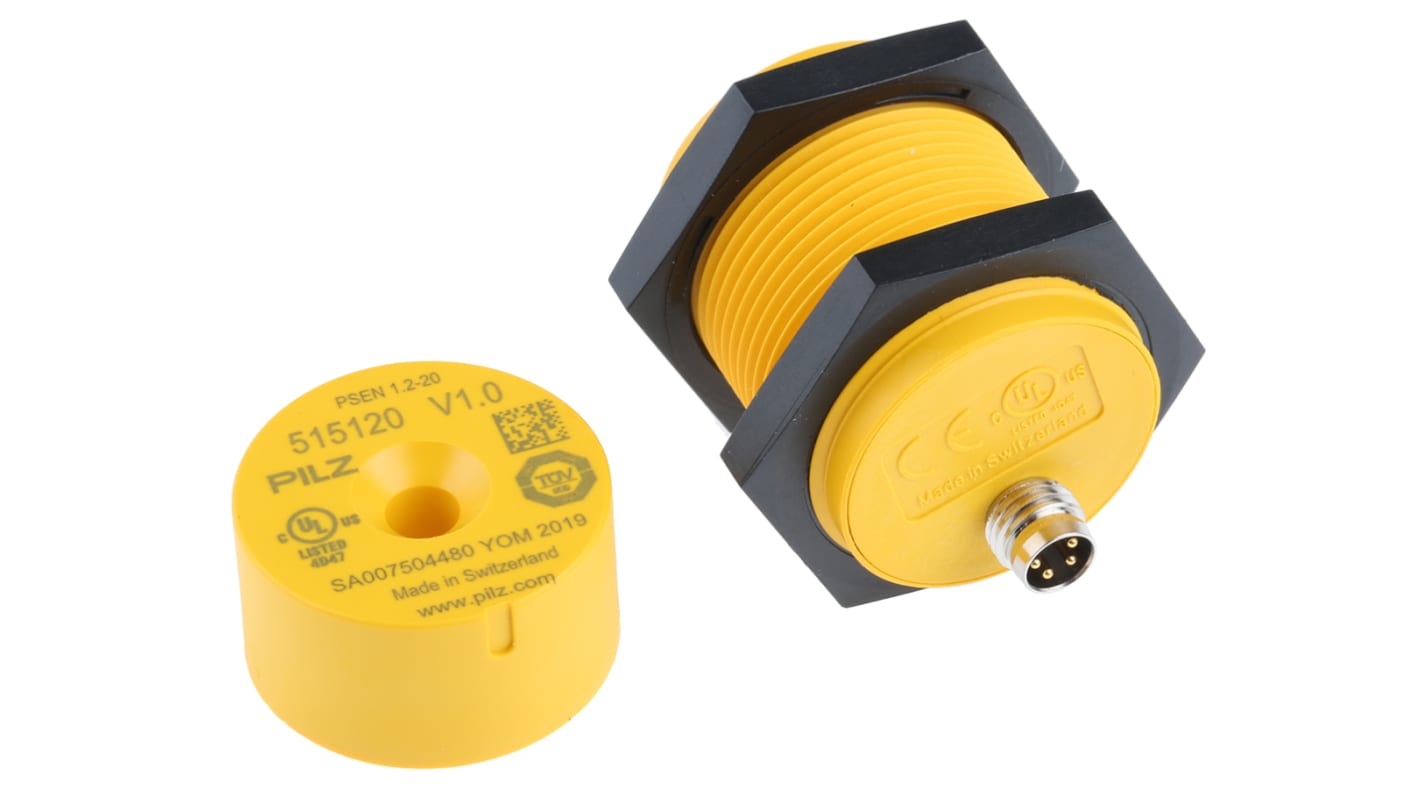

Pilz Non-contact Switch


The Pilz PSENmag series non-contact safety switch has an assured switching distance of 8mm with round M30 design. It has 2NO safety contacts. It meets the highest safety requirements and offers a complete solution that is safe and economical.
Supplied with actuator
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENmag), an actuator (PSENmag) and a safety-monitoring module (PNOZ X) is used.


Features and Benefits


Input The supply voltage is 24VDC
Connected via a plug connection or with cable
Flexible cable outlet, including connector, so there is no need for an angled connector
Flexible mounting, both the sensor and actuator support every conceivable mounting configuration
Cost effective because of the series connection
Operating distance of 3mm or 10mm
Extra signal contact
Connection type is M8, 4-pin male
Housing material is PBT
Operating temperature ranges between -10°C and 55°C


Applications


Heavy soiling


Certifications


IP65 rated
IP67 rated
EN954-1 (Cat 4)
EN60204-1
EN60947-5-3
CE certified
UL approved
TÜV certified
BG certified
CCC certified


Approvals

BG, cUL, CCC

AttributeValue
Supply Voltage24 V dc
Housing MaterialPlastic
SeriesPSENmag
Switching Distance8 mm
IP RatingIP65, IP67
Actuator IncludedYes
Safety Category4
Sensor PrincipleMagnetic
Actuator TypeMagnetic
Length42.7mm
Dimensions28 (Dia.) x 42.7 mm
Housing ColourBlack, White
Width28 (Dia.)mm
