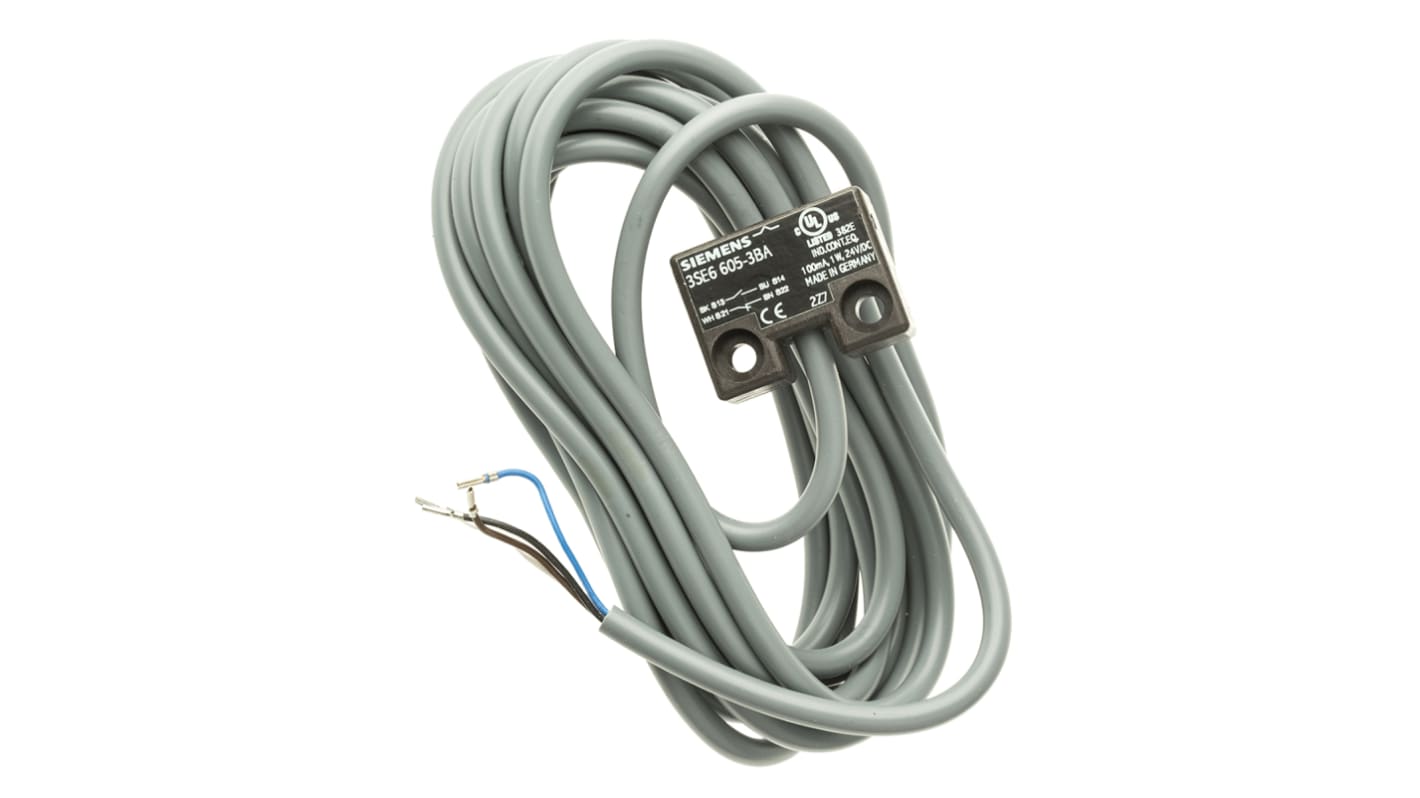

Sirius 3SE6 Magnetic Safety Switch, Plastic

  • RS-artikelnummer 528-0835
  • Tillv. art.nr 3SE6605-3BA
  • Tillverkare / varumärke Siemens
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

3SE6, Coded, Miniature

Magnet switches designed for mounting on movable protective guards such as covers, flaps and doors.
Suitable for areas where cleaning, disinfecting or contamination is involved
IP67 rated
For a suitable safety relay, use 528-0908
Effective operating distance 4-14mm
For a suitable coded magnet, use stock no 528-0857
Cable length of 3m

Note

Magnet supplied separately

Specifikationer
Attribute Value
Housing Material Plastic
Switch Type Safety
Range Sirius
Terminal Type 3m cable
Series 3SE6
Switching Distance 4 mm, 14 mm
IP Rating IP67
Actuator Included No
Safety Category 4
Length 88mm
Dimensions 88 x 25 x 13 mm
Depth 13mm
Sensor Principle Magnetic
Actuator Type Coded, Unique Coded
Width 25mm
Housing Colour Amber
8 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
617,00 kr
(exkl. moms)
771,25 kr
(inkl. moms)
Enheter
Per unit
1 +
617,00 kr
