Ferrogard 440N Magnetic Safety Switch, Plastic, 24 V dc

Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

Ferrogard 6, 9 & 10 Slim Non Contact Safety Switch

The Ferrogard FRS 6, 9 and 10 are magnetically actuated non-contact safety switches which offer reliability and a high tolerance to misalignment. Designed to be installed on a guard door, the action of the magnetic actuator being removed from the switch opens the N.C. safety contacts therefore isolating the control power to the machines primary control element. Moulded in ABS plastic with a slim rectangular housing to accommodate narrow mounting areas and sealed to IP67 (NEMA 6P), these non-contact switches are ideal for wet environments. They have two active sensing faces allowing more flexible mounting options.

Slim housings to accomodate narrow mounting areas
Two active sensing faces allowing more flexible mounting options
Operating distance for safety contacts: make 12mm; break 23mm
Operating temperature range: -10°C to +65°C
M4 mounting
IP67 rating (NEMA 6P)
Cat. 1 Device per EN954-1 Dual channel interlocks suitable for Cat. 3 or 4 systems

Standards

EN954-1, ISO13849-1, IEC/EN60204-1, NFPA79, EN1088, ISO14119, ANSI B11.19, AS4024.1.

Approvals

CE Marked for all applicable directives and cULus.

//media.rs-online.com/t_line/L2963155-30.gif
//media.rs-online.com/t_line/L2963161-30.gif

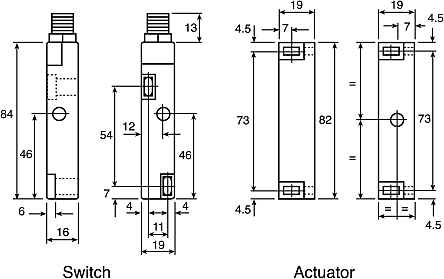

//media.rs-online.com/t_line/L333574-14.gif
Specifikationer
Attribute Value
Supply Voltage 24 V dc
Safety Contacts NC
Housing Material Plastic
Connection Type 4-Pin Micro QD
Switch Type Safety
Range Ferrogard
Series 440N
Switching Distance 12 mm, 23 mm
IP Rating IP67
Actuator Included Yes
Sensor Principle Magnetic
Housing Colour Red
Depth 16mm
Dimensions 84 x 19 x 16 mm
Actuator Type Magnetic
Width 19mm
Length 84mm
Safety Category 1
