Eclipse Neodymium Magnet 0.16kg, Width 3mm

  • RS-artikelnummer 434-6827
  • Tillv. art.nr N700-RB
  • Tillverkare / varumärke Eclipse
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

Eclipse Neodymium Disc Magnet

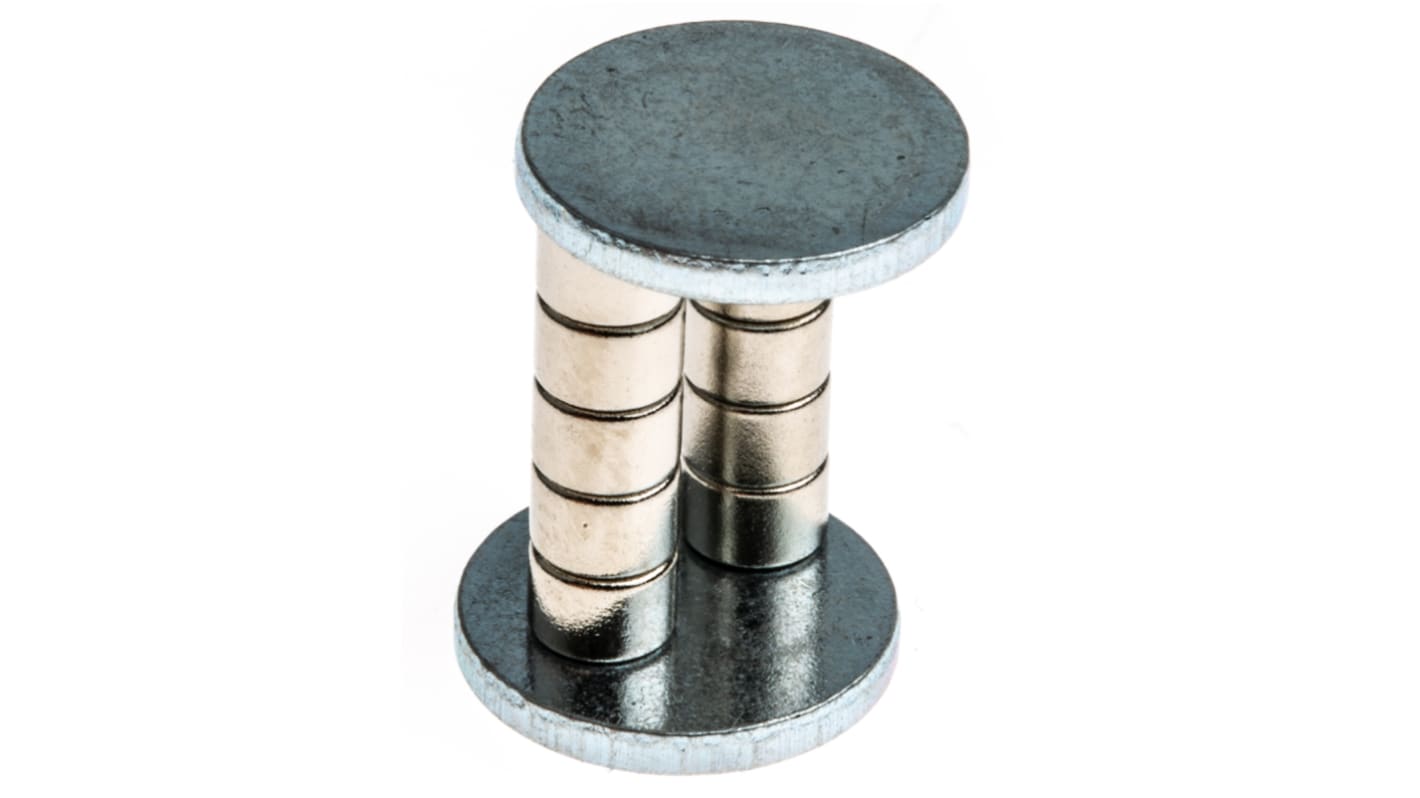

The Eclipse neodymium disc magnet is made of 'rare-earth' iron boron and has a pull force of 0.3kg. This coin-shaped axially magnetised magnet can be stacked in attraction to create thicker magnets. Increasing the thickness can give an increase in magnetic output from the magnet but there is a thickness at which adding extra magnet height gives less and less performance benefit. It can be used at temperatures of up to 80°C.

Features and Benefits

Total thickness of 2mm and diameter of 3mm
Anisotropic
High resistance to de-magnetisation
N35 grade material
Nickel plated
Strongest magnetic performance
Weight is 0.0001kg

Applications

Attracting
Clamping
Positioning

Specifikationer
Attribute Value
Magnet Type Disc
Width/Diameter 3mm
Pull Force 0.16kg
Thickness 2mm
Attachment Type None
651 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) 1 Box of 10
135,81 kr
(exkl. moms)
169,76 kr
(inkl. moms)
Låda(or)
Per Box
Per unit*
1 - 4
135,81 kr
13,581 kr
5 - 9
129,02 kr
12,902 kr
10 - 29
122,22 kr
12,222 kr
30 +
114,08 kr
11,408 kr
