GILGEN Muller & Weigert LED Digital Panel Multi-Function Meter for Current, 22.2mm x 92mm

Se alla Multi Function Panel Meters
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.

Alternativ

Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

presentation
Simex LED Digital Panel Multi-Function Meter for Current, Voltage, 90.5mm x 43mm
RS-artikelnummer
914-8520

Varje

3 328,53 kr

(exkl. moms)

4 160,66 kr

(inkl. moms)

RS-artikelnummer:
619-9724
Tillv. art.nr:
A1410MF-RS
Tillverkare / varumärke:
GILGEN Muller & Weigert
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

GILGEN Muller & Weigert

Properties Measured

Current

Display Type

LED

Cutout Height

22.2mm

Cutout Width

92mm

Minimum Temperature

0°C

Maximum Temperature

+50°C

COO (Country of Origin):
DE

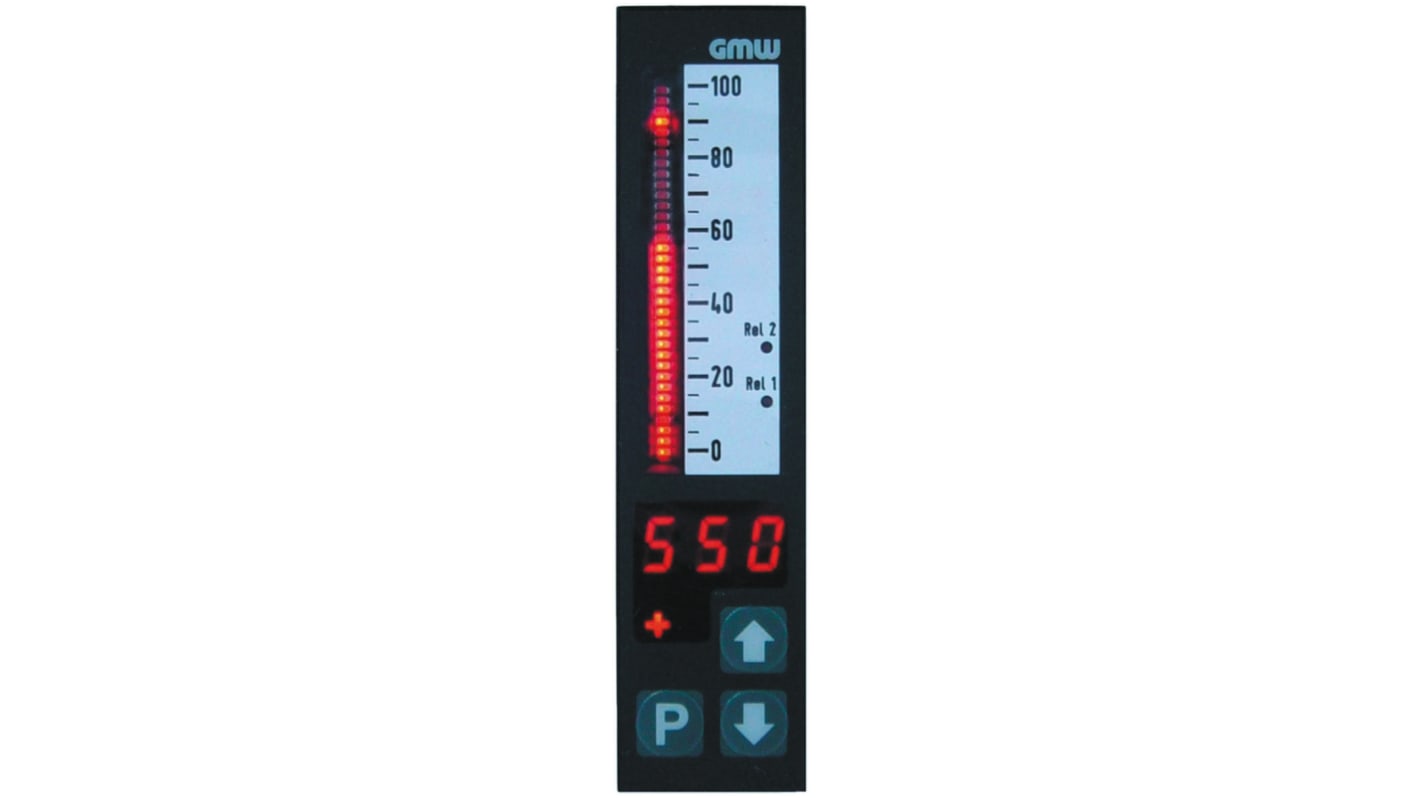

Bargraph Indicators


Simple at-a-glance indication, plus digital precision
Accurate 3-digit numeric readout
User programmable MIN/MAX limit values. The A1400 model has MIn/MAX with separate bargraph indication and the A1410 has MIN/MAX with LED indication
User selectable DC current or voltage input range
User programmable display range (3 keys)
Adjustable display brightness
Power supply electrically isolated from measuring inputs
Easy plug-in-screw-terminal connections
Digit display: from -999 to 999 (8mm)
Digit Accuracy: +/-0.1% of reading + 2 digits
Operating temperature: 0 to 50°C (storage: -20 to 70°C)
Front protection: IP65
Dimensions: A1400 - 144x36x127mm (cutout: 138x33mm)
A1410 - 96x24x126mm (cutout: 92x22.2mm)
