Druck DPI 880 Multi Function Calibrator 30V 55mA

  • RS-artikelnummer 532-7530
  • Tillv. art.nr DPI 880
  • Tillverkare / varumärke Druck
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

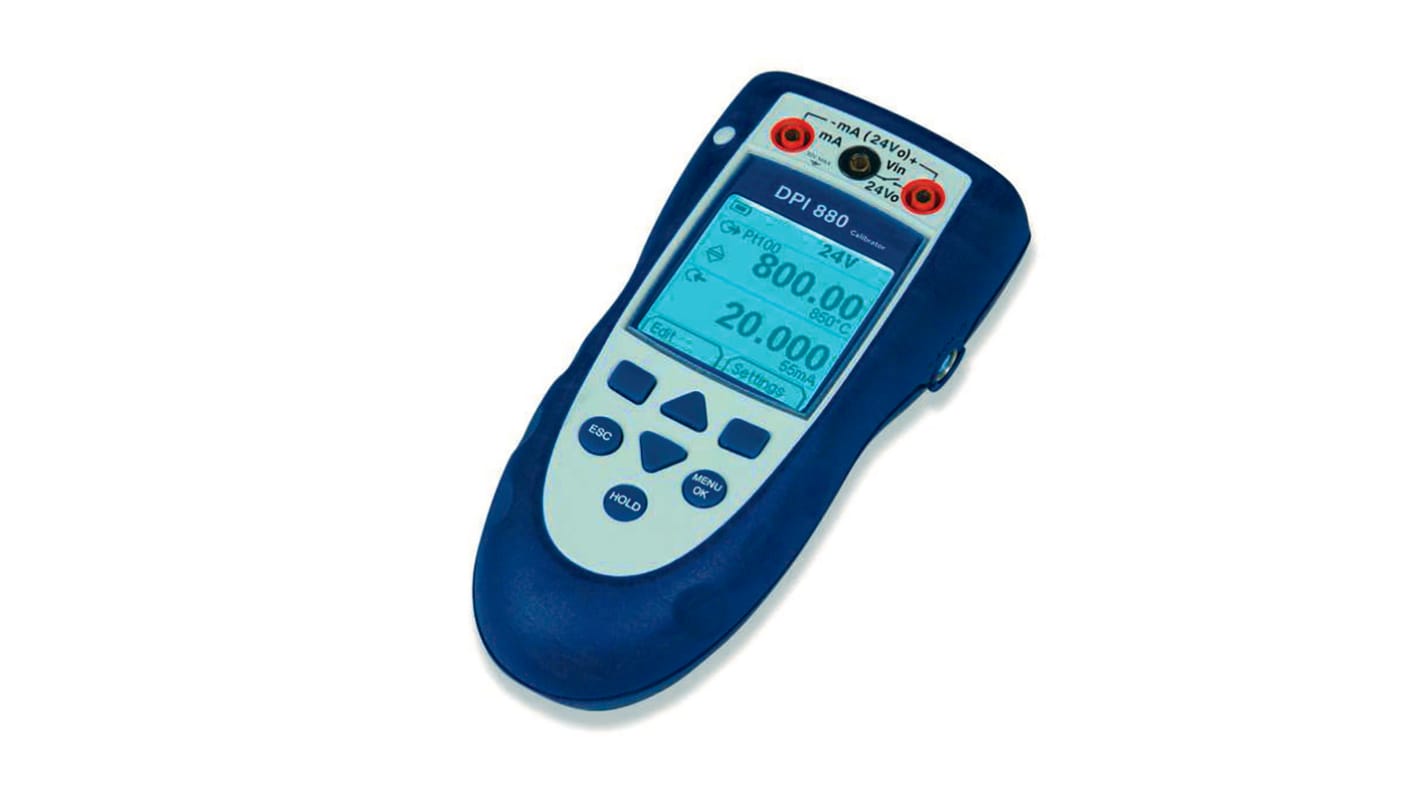

Druck DPI880 Multi-function Calibrator

The DPI 880 multifunction calibrator forms part of the DPI 800 series of calibrators. This series has been designed to offer a complete range of advanced, robust and simple to use handheld instruments. Druck's multifunctional calibrator is the ideal solution for test and calibration of many popular process parameters. The advanced features combined with technical innovations address more applications in a considerably less amount of time to others, delivering fast and reliable results. The compact design enables the tool to be portable, making it even handier for users needing it for on the go testing, configuring and calibrating.

Features & Benefits

• Highly cost-effective
• Living up to the title of being "multi-functional" the DPI 800 measures, sources and simulates mA, mV, V, RTD's, thermocouples, ohms, frequency, pulses and pressure, captures switch values and provides 24 V (voltage) loop power
• Simultaneous dual reading - reads both input and output parameters, simplifying calibrators and system diagnostics
• Programmable step and ramp outputs - Users can quickly step through calibrations with % step output or make zero and full-scale adjustments using the span check
• Adjustable nudge output - This feature provides small incremental output changes for accurately setting valve positioners, switches, trips and alarms
• HART resistor - The calibrator has the capability to be switched into the loop when required for a HART digital communicator, avoiding the inconvenience of carrying a 250 resistor
• The device has 32 pressure modules from 10 in H2o to 10,000 psi (25 mbar to 700 bar)
• 1000 point data storage with real-time clock
• Large backlit display, robust and weatherproof
• Plug/Play connector for IDOS Universal Pressure Modules
• The measurements of the hand-held multifunctional calibrator are 7.1 in x 3.3 in x 2 in (180 mm x 85 mm x 50 mm)

What is supplied with this kit?

• Multi-functional Calibrator
• 3 AA alkaline batteries
• User guide
• Calibration certificate
• A set of electrical test leads

Specifikationer
Attribute Value
Maximum Voltage Measurement 30V
Maximum Current Measurement 55mA
Port Connections 4 mm Socket
Battery Life 50 h
Battery Type AA
Power Source Battery
Dimensions 180 x 85 x 50mm
Weight 425g
Height 50mm
Length 180mm
Maximum Operating Temperature +50°C
Minimum Operating Temperature -10°C
Model Number p DPI 880
Width 85mm
38 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
21 962,16 kr
(exkl. moms)
27 452,70 kr
(inkl. moms)
Enheter
Per unit
1 +
21 962,16 kr
