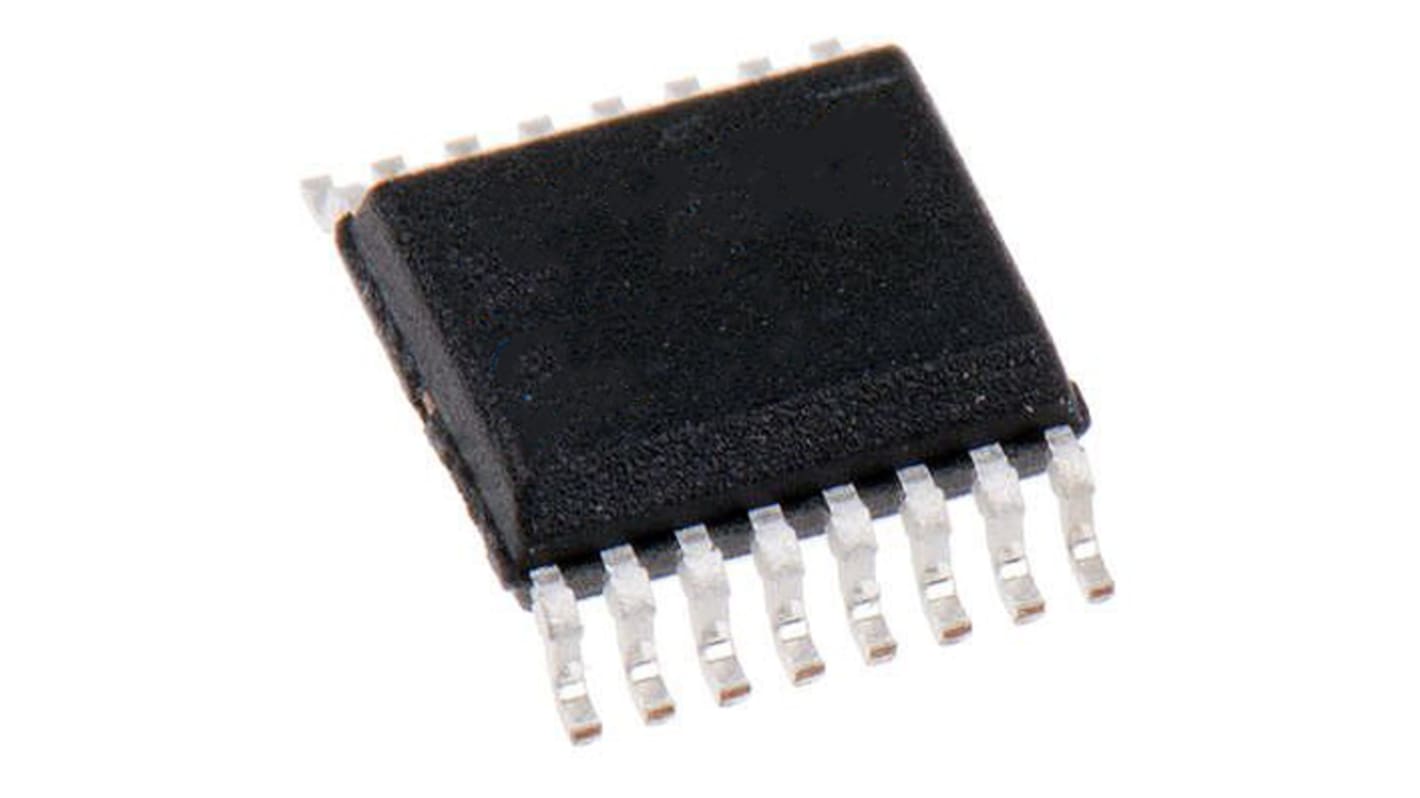

ROHM BD65491FV-E2, Brushed Motor Driver IC 16-Pin, SSOP
- RS-artikelnummer:
- 171-4110
- Tillv. art.nr:
- BD65491FV-E2
- Tillverkare / varumärke:
- ROHM
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 2)
45,915 kr
(exkl. moms)
57,394 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 2 - 98 | 45,915 kr | 91,83 kr |
| 100 - 248 | 41,365 kr | 82,73 kr |
| 250 - 498 | 37,485 kr | 74,97 kr |
| 500 - 998 | 34,435 kr | 68,87 kr |
| 1000 + | 33,215 kr | 66,43 kr |
- RS-artikelnummer:
- 171-4110
- Tillv. art.nr:
- BD65491FV-E2
- Tillverkare / varumärke:
- ROHM
Lagstiftning och ursprungsland
Produktdetaljer
The BD65491FV motor driver provides 1 Full-ON Drive H-bridge channel, while BD65492MUV provides 2 Full-ON Drive H-bridge channels. These ICs feature wide range operating from 1.8V and low power consumption by high switching speed in a compact surface mount package.
Low ON-Resistance Power DMOS output: Full-ON Drive block with 0.35Ω Typ.
Range of motor power supply voltage: 1.8V to 16.0V
Charge pump-less type with p-channel DMOS for the upper side transistor
The highest performance in regard to switching speed, and 4-values selection
Turn On Time: 150ns & Turn Off Time: 50ns
Drive mode switch function
Maximum output current for H-bridge: DC maximum 1.2A, Peak maximum 4.0A
Control input pins corresponding to the signal of 1.8V system
Built-in UVLO (Under Voltage Lockout Protection) function & TSD (Thermal Shut Down) circuit
Standby current: 0μA Typ.
Applications:
Coin Processing Machines
Digital Still Camera
Machine Vision Camera for Industrial
Range of motor power supply voltage: 1.8V to 16.0V
Charge pump-less type with p-channel DMOS for the upper side transistor
The highest performance in regard to switching speed, and 4-values selection
Turn On Time: 150ns & Turn Off Time: 50ns
Drive mode switch function
Maximum output current for H-bridge: DC maximum 1.2A, Peak maximum 4.0A
Control input pins corresponding to the signal of 1.8V system
Built-in UVLO (Under Voltage Lockout Protection) function & TSD (Thermal Shut Down) circuit
Standby current: 0μA Typ.
Applications:
Coin Processing Machines
Digital Still Camera
Machine Vision Camera for Industrial
Specifikationer
Attribute | Value |
|---|---|
| Motor Type | Brushed DC |
| Output Configuration | Half Bridge |
| Configuration | Half Bridge |
| Maximum Output Current | 4A |
| Maximum Supply Voltage | 16 (Motor) V, 5.5 (Power) V |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 16 |
| Maximum Operating Supply Voltage | 16 (Motor) V, 5.5 (Power) V |
| Minimum Operating Supply Voltage | 1.8 (Motor) V, 2.5 (Power) V |
| Typical Switching Frequency | 500 (Maximum)kHz |
| Product Width | 4.4mm |
| Maximum Operating Temperature | +85 °C |
| Length | 5mm |
| Product Length | 5mm |
| Height | 1.15mm |
| Width | 4.4mm |
| Product Height | 1.15mm |
| Minimum Operating Temperature | -30 °C |
| Dimensions | 5 x 4.4 x 1.15mm |
