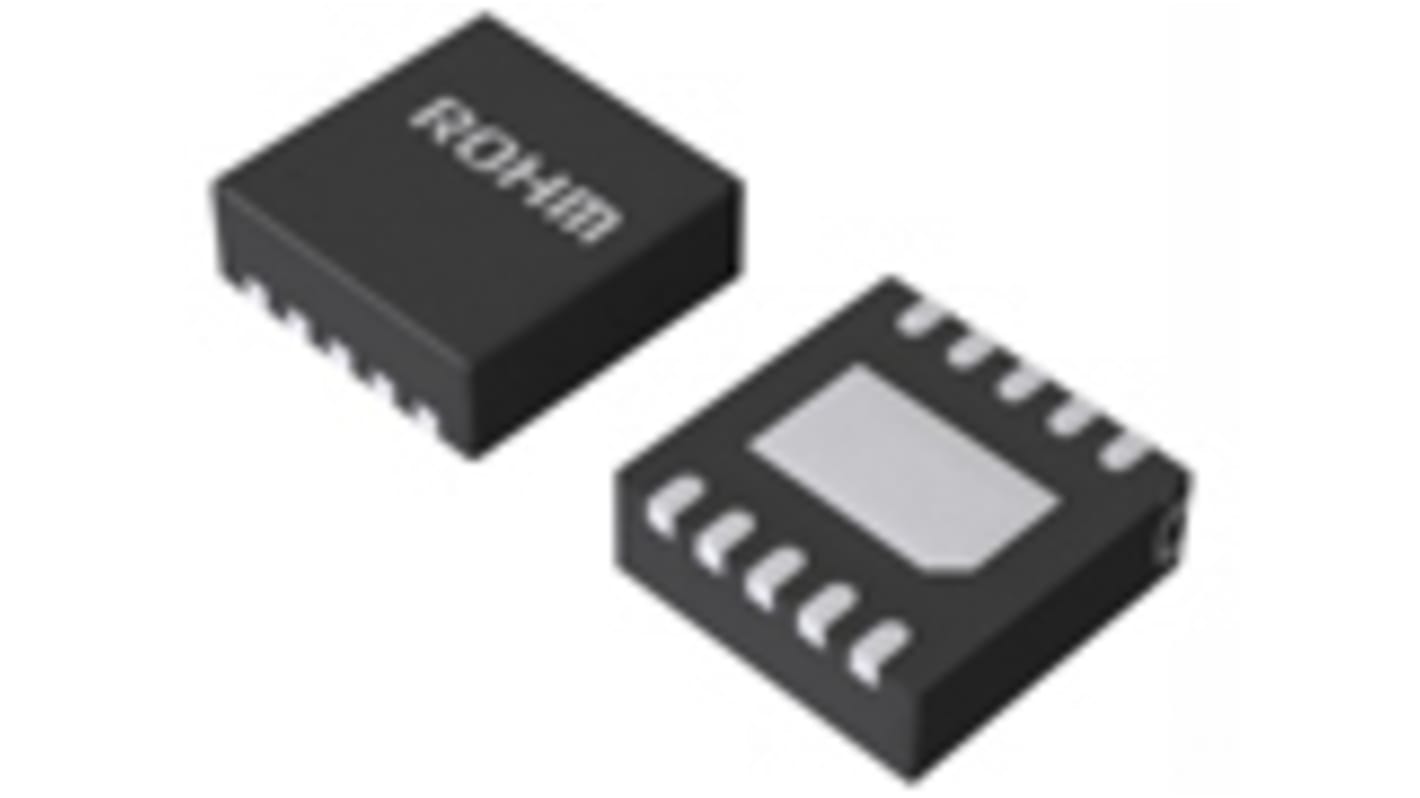

ROHM BD63573NUV-E2, Brushed Motor Driver IC 10-Pin, VSON

  • RS-artikelnummer 171-2096
  • Tillv. art.nr BD63573NUV-E2
  • Tillverkare / varumärke ROHM
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

The BD63573NUV provides a single H-bridge motor driver which features wide range of motor power supply voltage from 2.0V to 16.0V and low power consumption to switch low ON-Resistance DMOS transistors at high speed. This small surface mounting package is most suitable for mobile system, home appliance and various applications.

Low ON-Resistance Power DMOS Output
Charge Pump-Less with PDMOS High-Side Driver
Drive Mode Switch Function
Control Input Voltage Range Fit 1.8V Controller
Under Voltage Locked Out Protection & Thermal Shut Down Function

Specifikationer
Attribute Value
Motor Type Brushed DC
Configuration Half Bridge
Output Configuration Half Bridge
Maximum Output Current 3.2A
Maximum Supply Voltage 5.5 (Power) V, 16 (Motor) V
Mounting Type Surface Mount
Package Type VSON
Maximum Operating Supply Voltage 5.5 (Power) V, 16 (Motor) V
Pin Count 10
Minimum Operating Supply Voltage 2 (Motor) V, 2.5 (Power) V
Typical Switching Frequency 500 (Maximum)kHz
Width 3mm
Product Height 0.98mm
Minimum Operating Temperature -30 °C
Length 3mm
Dimensions 3 x 3 x 0.98mm
Product Width 3mm
Maximum Operating Temperature +85 °C
Product Length 3mm
Height 0.98mm
I lager för leverans inom 2 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
14,27 kr
(exkl. moms)
17,84 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 95
14,27 kr
71,35 kr
100 - 245
12,80 kr
64,00 kr
250 - 495
11,622 kr
58,11 kr
500 - 995
10,692 kr
53,46 kr
1000 +
10,258 kr
51,29 kr
