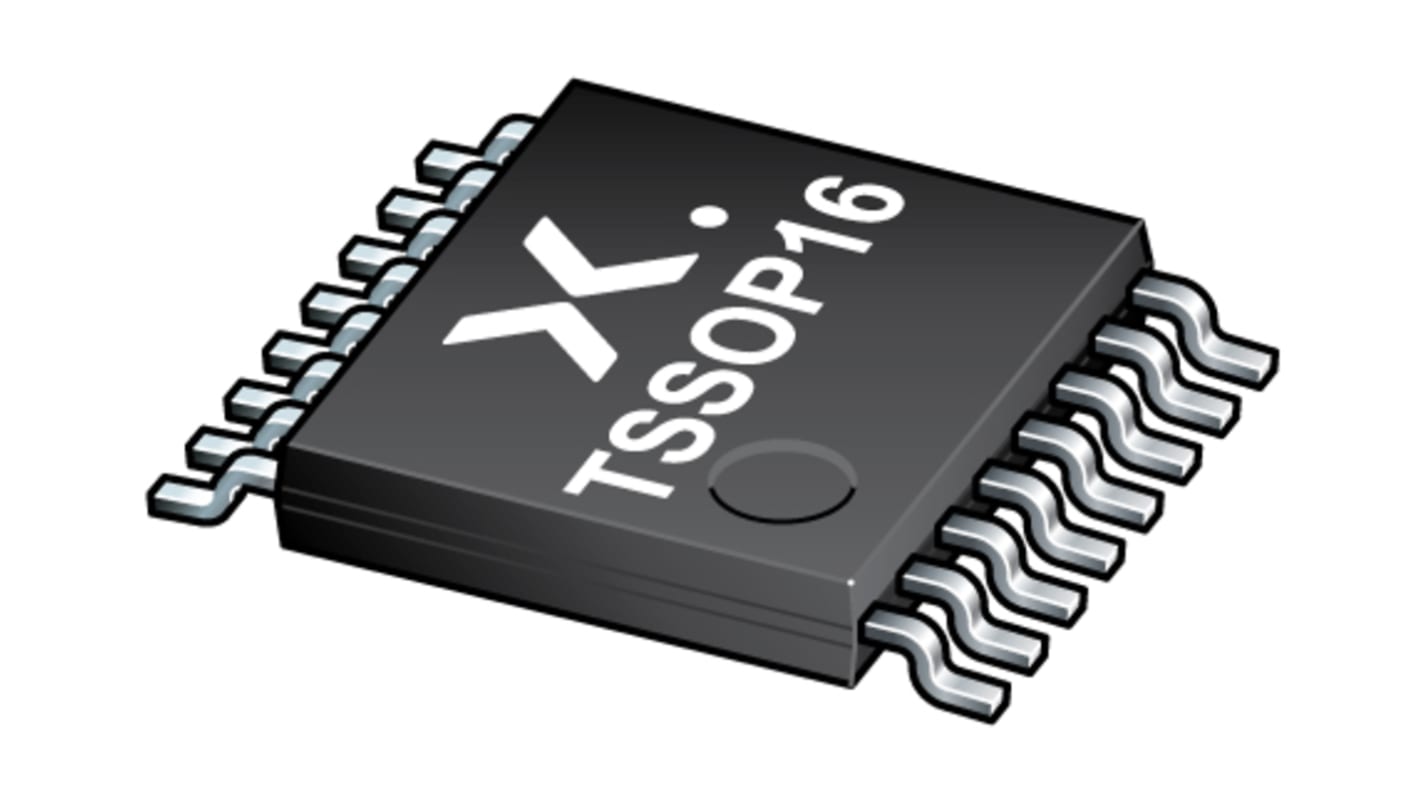

Nexperia 74HC123PW,118, Dual Dual Monostable Multivibrator 4mA, 16-Pin TSSOP16

  • RS-artikelnummer 151-3398
  • Tillv. art.nr 74HC123PW,118
  • Tillverkare / varumärke Nexperia
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Dual retriggerable monostable multivibrator with reset, The 74HC123, 74HCT123 are high-speed Si-gate CMOS devices and are pin compatible with Low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC123, 74HCT123 are dual retriggerable monostable multivibrators with output pulse width control by three methods, The basic pulse is programmed by selection of an external resistor (REXT) and capacitor (CEXT). Once triggered, the basic output pulse width may be extended by retriggering the gated active LOW-going edge input (nA) or the active HIGH-going edge input (nB).

DC triggered from active HIGH or active LOW inputs
Retriggerable for very long pulses up to 100 % duty factor
Direct reset terminates output pulse
Schmitt-trigger action on all inputs except for the reset input

Specifikationer
Attribute Value
Logic Family HC
Logic Function Monostable Multivibrator
Number of Elements per Chip 2
Maximum High Level Output Current -4mA
Maximum Low Level Output Current 4mA
Minimum Pulse Width 26 ns
Maximum Propagation Delay Time @ Maximum CL 385 ns @ 15 pF
Mounting Type Surface Mount
Package Type TSSOP16
Pin Count 16
Dimensions 5.1 x 4.5 x 0.95mm
Height 0.95mm
Length 5.1mm
Minimum Operating Supply Voltage -0.5 V
Minimum Operating Temperature -40 °C
Maximum Operating Supply Voltage +7 V
Propagation Delay Test Condition 15pF
Maximum Operating Temperature +125 °C
Width 4.5mm
4800 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 50)
2,75 kr
(exkl. moms)
3,44 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
50 - 100
2,75 kr
137,50 kr
150 - 250
1,65 kr
82,50 kr
300 - 550
1,568 kr
78,40 kr
600 - 1200
1,489 kr
74,45 kr
1250 +
1,319 kr
65,95 kr
Förpackningsalternativ:
