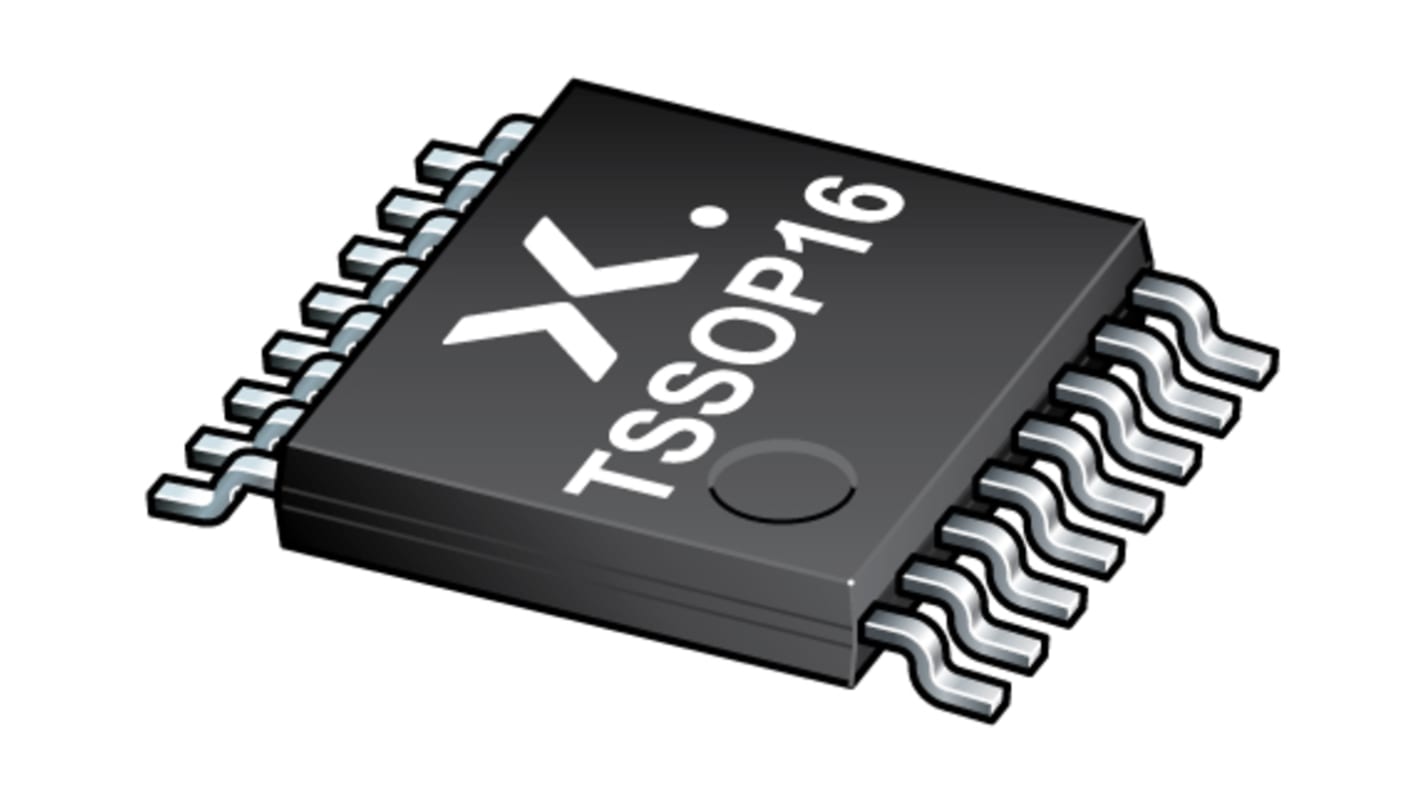

Nexperia 74HC4538PW,118 Dual Dual Monostable Multivibrator 5.2mA, 16-Pin TSSOP16

  • RS-artikelnummer 151-3351
  • Tillv. art.nr 74HC4538PW,118
  • Tillverkare / varumärke Nexperia
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Dual retriggerable precision monostable multivibrator, The 74HC4538 is a dual retriggerable-resettable monostable multivibrator. Each multivibrator has two trigger/retrigger inputs (nA and nB), a direct reset input (nCD), two complementary outputs (nQ and nQ), and two pins (nREXT/CEXT and nCEXT) for connecting the external timing components CEXT and REXT. Typical pulse width variation over temperature range is ± 0.2 %. The device may be triggered by either the positive or the negative edges of the input pulse.

Tolerant of slow trigger rise and fall times
Separate reset inputs
Triggering from falling or rising edge
Complies with JEDEC standard no. 7A
CMOS input levels

Specifikationer
Attribute Value
Logic Family HC
Logic Function Monostable Multivibrator
Number of Elements per Chip 2
Maximum High Level Output Current -5.2mA
Maximum Low Level Output Current 5.2mA
Minimum Pulse Width 20 ns
Maximum Propagation Delay Time @ Maximum CL 400 ns @ 15 pF
Mounting Type Surface Mount
Package Type TSSOP16
Pin Count 16
Dimensions 5.1 x 4.5 x 0.95mm
Height 0.95mm
Length 5.1mm
Width 4.5mm
Propagation Delay Test Condition 15pF
Maximum Operating Temperature +125 °C
Minimum Operating Temperature -40 °C
Minimum Operating Supply Voltage -0.5 V
Maximum Operating Supply Voltage +7 V
2500 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (On a Reel of 2500)
1,515 kr
(exkl. moms)
1,894 kr
(inkl. moms)
Enheter
Per unit
Per Reel*
2500 - 2500
1,515 kr
3 787,50 kr
5000 - 10000
1,475 kr
3 687,50 kr
12500 - 22500
1,437 kr
3 592,50 kr
25000 +
1,401 kr
3 502,50 kr
