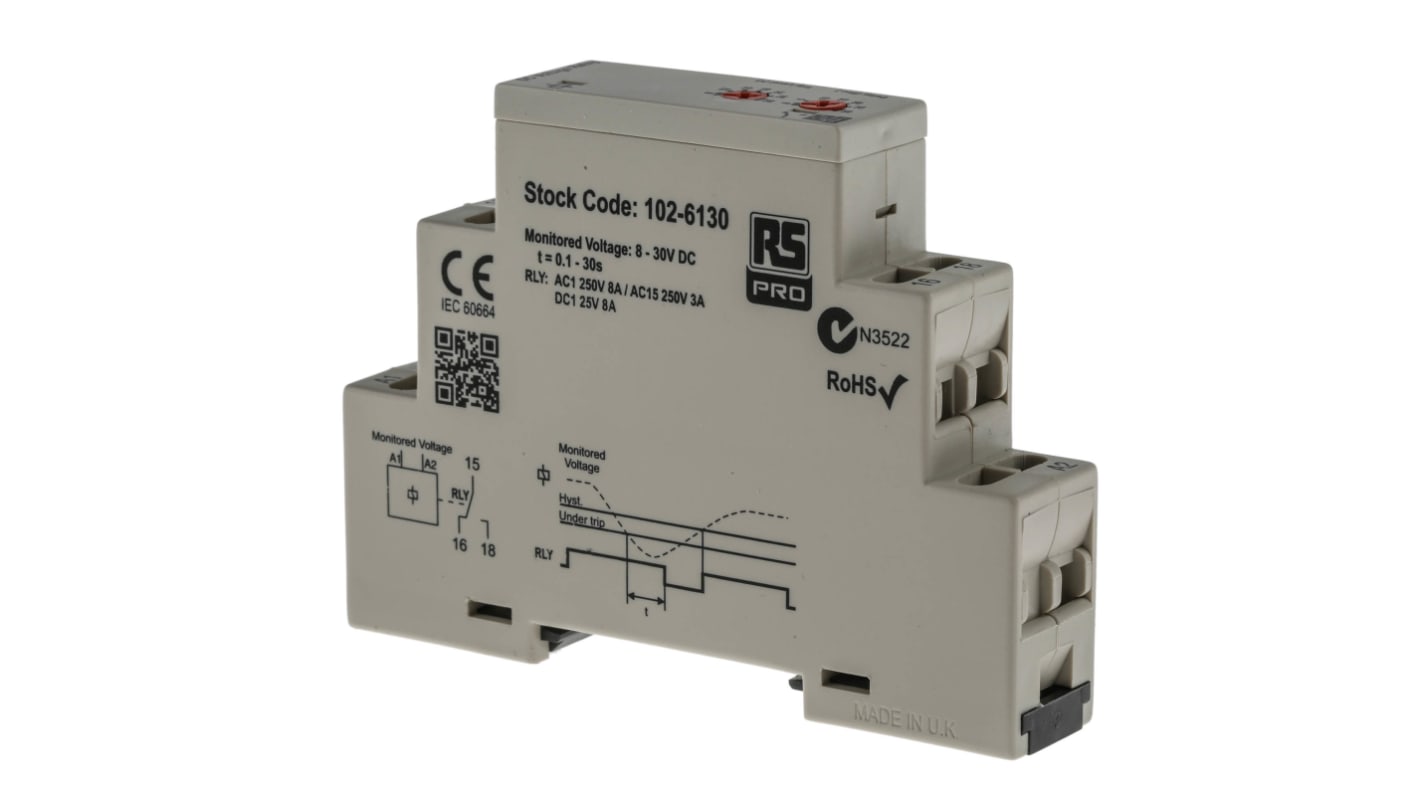

RS PRO Voltage Multi timer With SPDT Contacts, 1 Phase, 12 24 V dc

  • RS-artikelnummer 102-6130
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

L Series - Control Relays

L Series relay range of Timers, Control and Three Phase relays incorporate the latest technology and offer a wide range of user adjustable features.

17.5mm DIN rail housing
Microprocessor based
1 x SPDT relay output 8A
Green LED indication for supply status
Red LED indication for relay status

Approvals

UL Certification

Specifikationer
Attribute Value
Monitoring Application Voltage
Supply Voltage 12 24 V dc
Contact Configuration SPDT
Voltage Sensitivity Undervoltage
Electrical Phase 1
Voltage Sensing Range 12 24 V dc
Time Delay 0 30 s
Standards Met CE, EMC EN 61000-6, IEC
Series L-Series
Length 66.5mm
Width 17.5mm
Minimum Operating Temperature -20°C
Minimum Voltage Sensed 12 V dc
Number of Poles 1
Maximum Operating Temperature +60°C
Operating Temperature Range -20 +60 °C
Terminal Type Screw
Mounting Type DIN Rail
Maximum Voltage Sensed 24V dc
Height 89mm
Dimensions 17.5 x 66.5 x 89 mm
8 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
456,06 kr
(exkl. moms)
570,08 kr
(inkl. moms)
Enheter
Per unit
1 - 4
456,06 kr
5 - 9
437,82 kr
10 - 24
433,26 kr
25 +
410,47 kr
