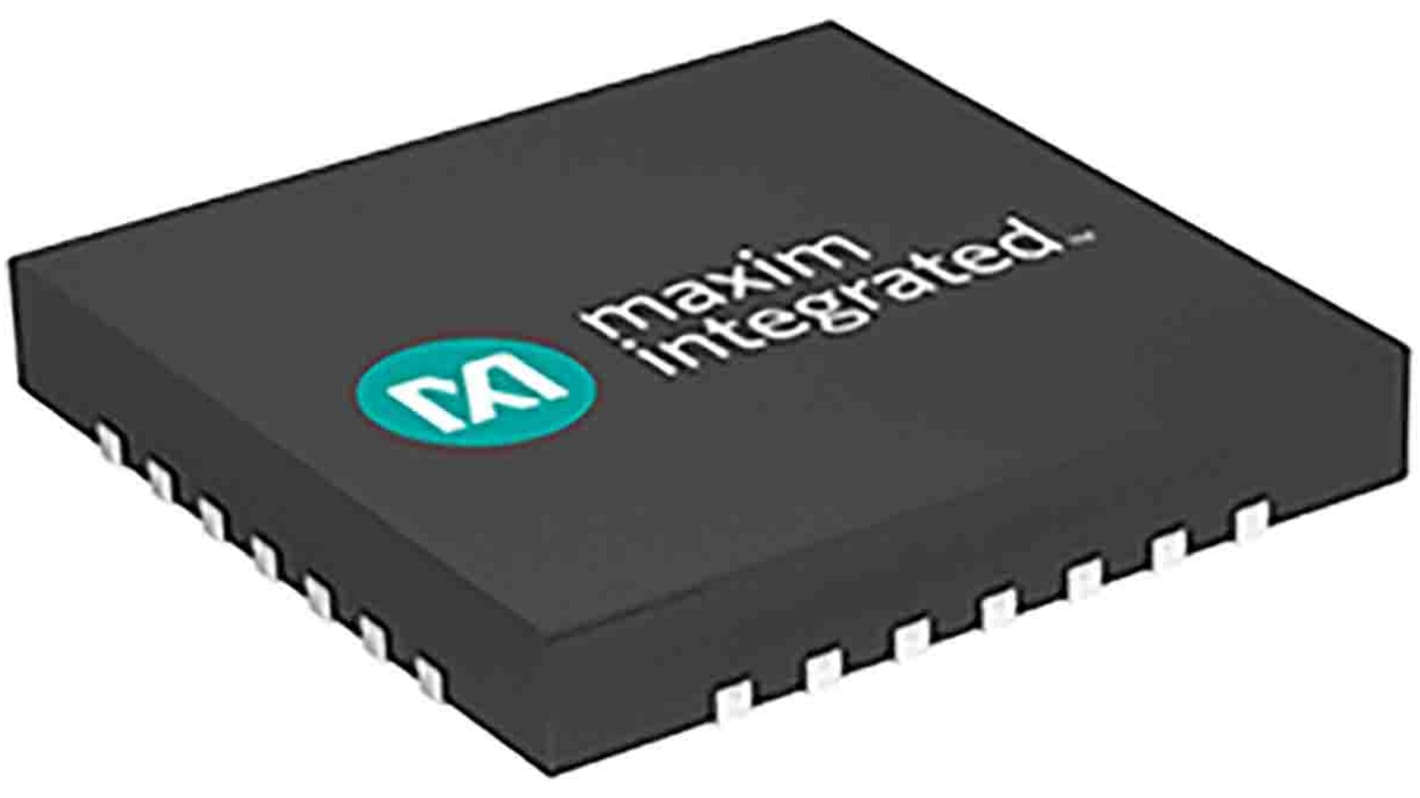

MAX2309ETI+, ,Demodulator ,Quadrature 110dB 300MHz ,28-Pin TQFN

RS-artikelnummer:: 191-6888
Tillv. art.nr:: MAX2309ETI+
Tillverkare / varumärke:: Maxim Integrated

MAX2309ETI+, ,Demodulator ,Quadrature 110dB 300MHz ,28-Pin TQFN

Se kategorien

16 I lager för avsändande samma dag

Lagt till varukorgen

Se varukorgen

Pris (ex. moms) Var (i ett paket med 2)

54,54 kr

(exkl. moms)

68,18 kr

(inkl. moms)

Enheter	Per unit	Per Pack*
2 +	54,54 kr	109,08 kr

RS-artikelnummer:: 191-6888
Tillv. art.nr:: MAX2309ETI+
Tillverkare / varumärke:: Maxim Integrated

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Complete IF Subsystem Includes VCO and Synthesizer
Supports Dual-Band, Triple-Mode Operation
VGA with >110dB Gain Control
Quadrature Demodulator
High Output Level (2.7V)
Programmable Charge-Pump Current
Supports Any IF Frequency Between 40MHz and 300MHz
3-Wire Programmable Interface
Low Supply Voltage (+2.7V)
Applications
Globalstar Dual-Mode Handsets
Single/Dual/Triple-Mode CDMA Handsets
WCDMA Handsets
Wireless Data Links
Wireless Local Loop (WLL)

Specifikationer

Attribute	Value
Device Type	Demodulator
Modulation Type	Quadrature
Maximum Conversion Gain	110dB
Maximum I/Q Frequency	300MHz
Programmable	Yes
Mounting Type	Surface Mount
Package Type	TQFN
Pin Count	28
Maximum Supply Current	41.5 (CDMA) mA
Typical Output Power	-13.7dBm
Dimensions	5 x 5 x 0.75mm
Height	0.75mm
Length	5mm
Maximum Operating Temperature	+85 °C
Minimum Operating Supply Voltage	2.7 V
Maximum Operating Supply Voltage	3.6 V
Minimum Operating Temperature	+85 °C
Width	5mm
