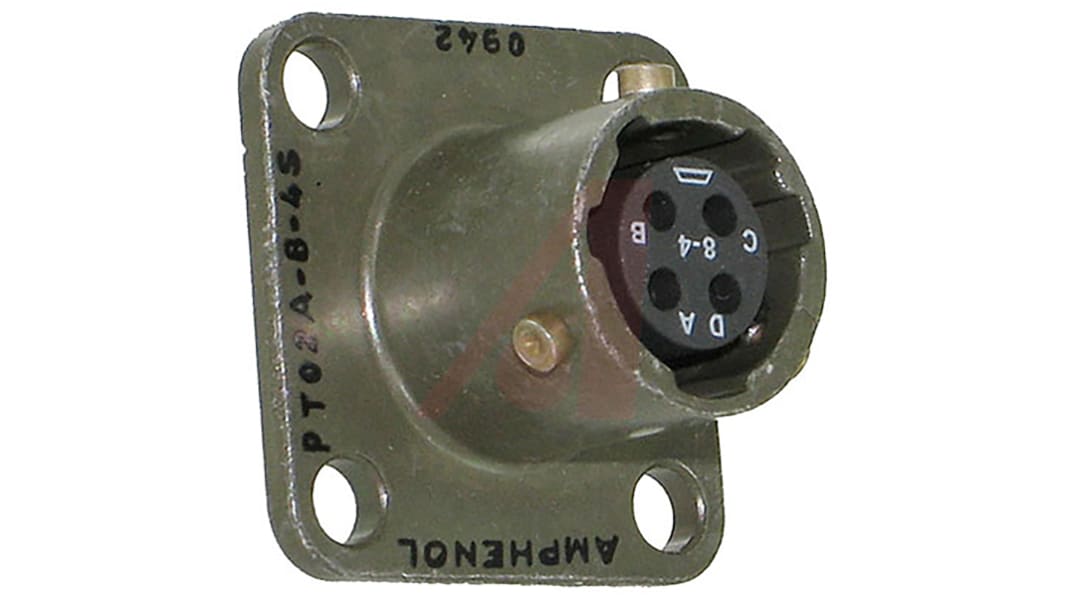

Amphenol, PT 4 Way Panel Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 8, Bayonet,

RS-artikelnummer:: 872-1449
Tillv. art.nr:: PT02A-8-4S
Tillverkare / varumärke:: Amphenol Socapex

Amphenol, PT 4 Way Panel Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 8, Bayonet,

Se kategorien

40 I lager för avsändande samma dag

Lagt till varukorgen

Se varukorgen

Pris (ex. moms) Varje

189,92 kr

(exkl. moms)

237,40 kr

(inkl. moms)

Enheter	Per unit
1 +	189,92 kr

RS-artikelnummer:: 872-1449
Tillv. art.nr:: PT02A-8-4S
Tillverkare / varumärke:: Amphenol Socapex

Datablad

Lagstiftning och ursprungsland

Uppfyller ej RoHS

Produktdetaljer

Amphenol PT Series Connectors

The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.

PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)

Amphenol PT Series Connectors

Specifikationer

Attribute	Value
Number of Contacts	4
Gender	Female
Contact Gender	Female
Voltage Rating	1 kV ac
Shell Size	8
Mounting Type	Panel Mount
Military Standard	MIL-DTL-26482
Termination Method	Solder
Mating Type	Bayonet
Connector Size	Miniature
Body Orientation	Straight
Housing Material	Aluminium
Series	PT
Contact Plating	Gold
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-55°C
Shell Plating	Cadmium
Colour	Green
Contact Material	Copper Alloy
