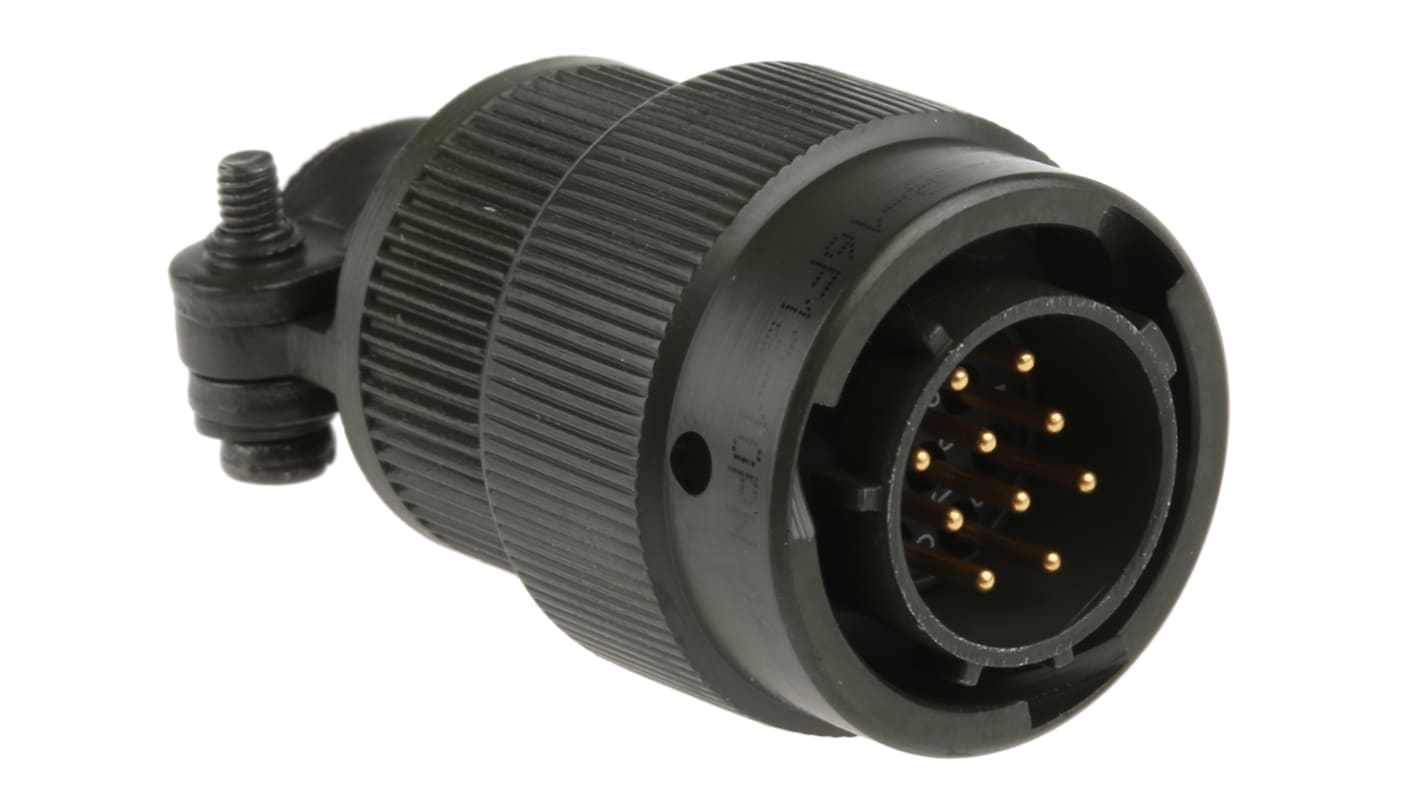

Amphenol Socapex 62GB Series, 10 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 12

  • RS-artikelnummer 442-2016
  • Tillv. art.nr 62GB-16F12-10PN
  • Tillverkare / varumärke Amphenol
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Amphenol 62GB Series Miniature Bayonet Lock Plug Connectors

Amphenol 62GB miniature circular bayonet cable plug connectors with a convenient bayonet lock mating system for an assured connection. These 62GB miniature bayonet lock connectors are durable and versatile and made to the stringent demands of the MIL-DTL-26482 military standard. These connectors are made from solid aluminium bar with a zinc cobalt olive drab finish, which ensures a high resistance to corrosion. Polychloroprene rubber inserts, insert seals and grommet seals provide a high degree of environmental protection when the connector is mated. These miniature circular bayonet plug connectors are supplied with a grommet nut with an integral strain relief clamp and gold plated contacts. The 62 GB range of connectors are similar in design and function to MIL-DTL-26482, but with an added keyway that helps prevent mismating.

Features & Benefits

Bayonet lock mating system for secure connection
Military Specification Compliant to MIL-C-26482E
Shell style originally specified in MIL-C-26482
Polychloroprene rubber inserts
High degree of environmental protection when mated
Durable construction with stainless steel shell
Zinc cobalt olive drab finish for high resistance to corrosion
Keying to prevent mismating
Supplied with gold plated contacts

Product Application Information

These durable 62GB miniature bayonet connectors are resistant to harsh environments and extreme temperatures and are ideal for use in many military and industrial connector applications.

Note

Size 16 contacts, except for stock no. 442-1849 which has 8 size 16 and 4 size 20 contacts.

//media.rs-online.com/t_line/L472304-02.gif

Standards

RS MIL-C-26482; BS 9522 F0017

Specifikationer
Attribute Value
Number of Contacts 10
Gender Male
Contact Gender Male
Voltage Rating 500 V ac, 700 V dc
Shell Size 12
Mounting Type Cable Mount
Military Standard MIL-DTL-26482
Termination Method Solder
Mating Type Bayonet Coupling
Body Orientation Straight
Series 62GB
Minimum Operating Temperature -55°C
Strain Relief Yes
Colour Olive
Maximum Operating Temperature +125°C
Contact Plating Gold
Shell Plating Zinc Cobalt
23 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
754,13 kr
(exkl. moms)
942,66 kr
(inkl. moms)
Enheter
Per unit
1 - 4
754,13 kr
5 - 24
690,09 kr
25 +
525,89 kr
