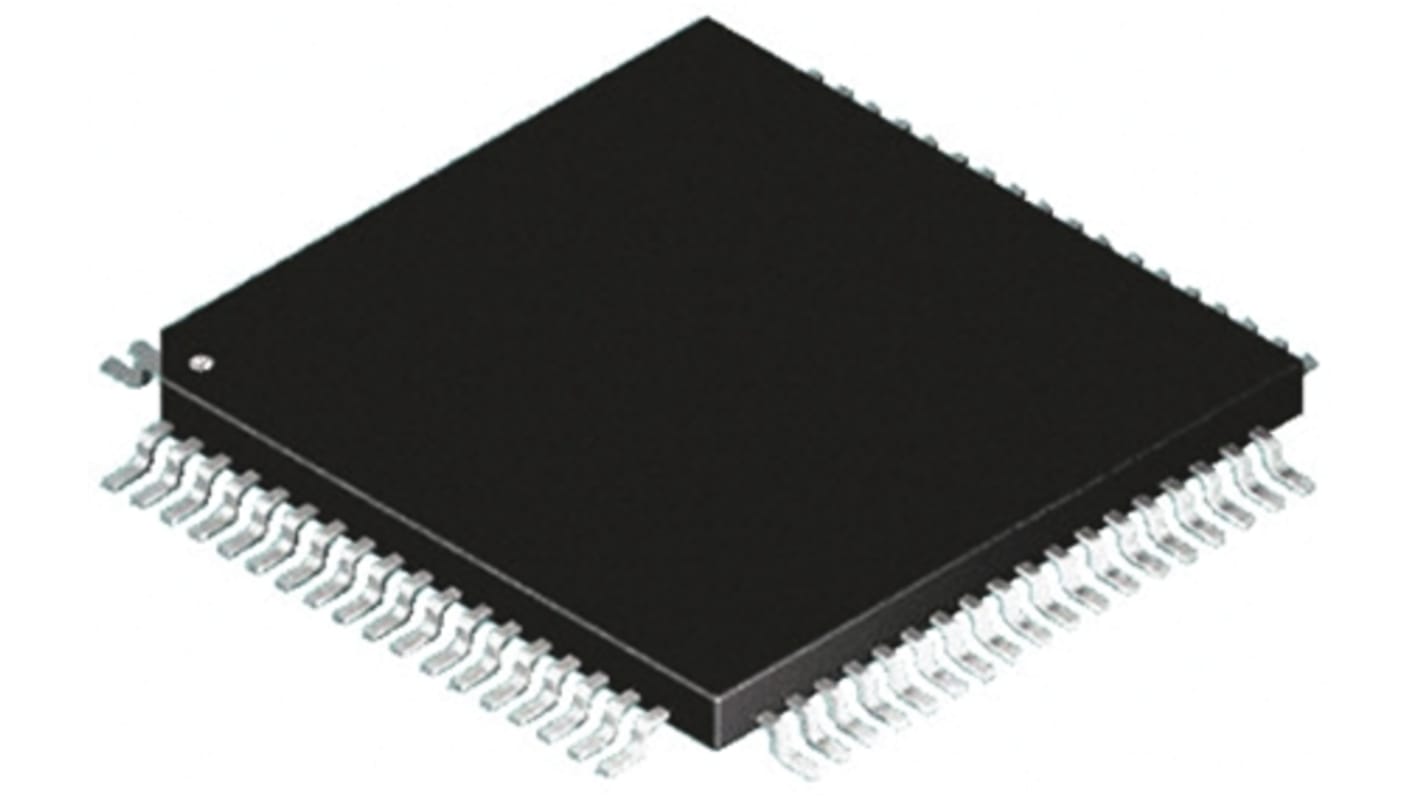

Microchip DSPIC30F6010A-30I/PF, 16bit PIC Microcontroller, dsPIC30F, 25MHz, 144 kB Flash, 80-Pin TQFP
- RS-artikelnummer:
- 819-5386
- Tillv. art.nr:
- DSPIC30F6010A-30I/PF
- Tillverkare / varumärke:
- Microchip
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 90)
87,982 kr
(exkl. moms)
109,978 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
90 - 90 | 87,982 kr | 7 918,38 kr |
180 + | 80,29 kr | 7 226,10 kr |
- RS-artikelnummer:
- 819-5386
- Tillv. art.nr:
- DSPIC30F6010A-30I/PF
- Tillverkare / varumärke:
- Microchip
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
dsPIC30F6010A/6015 16-Bit Digital Signal Controllers
Microchips dsPIC30F family of Digital Signal Controllers (DSCs) offer designers DSP like performance with the simplicity of an MCU. The dsPIC30F5010A/6015 devices are DSCs that feature peripherals suitable for Motor Control applications.
CPU Features
30 MIPS Max. CPU Speed
Modified Harvard architecture
C compiler optimized instruction set architecture
83 base instructions with flexible addressing modes
24-bit wide instructions, 16-bit wide data path
144 Kbytes on-chip Flash program space (Instruction words)
8 Kbytes of on-chip data RAM
4 Kbytes of non-volatile data EEPROM 16 x 16-bit working register array
Up to 44 interrupt sources
Modified Harvard architecture
C compiler optimized instruction set architecture
83 base instructions with flexible addressing modes
24-bit wide instructions, 16-bit wide data path
144 Kbytes on-chip Flash program space (Instruction words)
8 Kbytes of on-chip data RAM
4 Kbytes of non-volatile data EEPROM 16 x 16-bit working register array
Up to 44 interrupt sources
DSP Engine Features
Dual data fetch
Accumulator write-back for DSP operations
Modulo and Bit-Reversed Addressing modes
Two, 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single-cycle hardware fractional/integer multiplier
All DSP instructions single cycle
±16-bit single-cycle shift
Accumulator write-back for DSP operations
Modulo and Bit-Reversed Addressing modes
Two, 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single-cycle hardware fractional/integer multiplier
All DSP instructions single cycle
±16-bit single-cycle shift
Peripheral Features
High-current sink/source I/O pins: 25 mA/25 mA
10-Bit 1 Msps Analogue-to-Digital Converter (ADC) – 16 Channels
Five 16-bit timers/counters – option to pair up 16-bit timers into 32-bit timer modules
One 16-bit Capture input functions
One 16-bit Compare/PWM output functions
Motor Control PWM Module
Quadrature Encoder Interface Module
3-wire SPI modules
I2CTM module
Two UART Modules
CAN bus Modules – Two for dsPIC30F6010A, One for dsPIC30F6015
10-Bit 1 Msps Analogue-to-Digital Converter (ADC) – 16 Channels
Five 16-bit timers/counters – option to pair up 16-bit timers into 32-bit timer modules
One 16-bit Capture input functions
One 16-bit Compare/PWM output functions
Motor Control PWM Module
Quadrature Encoder Interface Module
3-wire SPI modules
I2CTM module
Two UART Modules
CAN bus Modules – Two for dsPIC30F6010A, One for dsPIC30F6015
Specifikationer
Attribute | Value |
---|---|
Family Name | dsPIC30F |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 80 |
Device Core | PIC |
Data Bus Width | 16bit |
Program Memory Size | 144 kB |
Maximum Frequency | 25MHz |
RAM Size | 8.192 kB |
USB Channels | 0 |
Number of PWM Units | 8 |
Number of SPI Channels | 2 |
Number of I2C Channels | 1 |
Number of CAN Channels | 2 |
Typical Operating Supply Voltage | 2.5 → 5.5 V |
Number of USART Channels | 0 |
Number of UART Channels | 2 |
Maximum Number of Ethernet Channels | 0 |
Dimensions | 14 x 14 x 1.2mm |
Number of LIN Channels | 0 |
Height | 1.2mm |
Pulse Width Modulation | 8 (8 x 16 bit) |
Program Memory Type | Flash |
ADCs | 1 (16 x 10 bit) |
Number of Ethernet Channels | 0 |
Number of PCI Channels | 0 |
Width | 14mm |
Length | 14mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Instruction Set Architecture | RISC |
