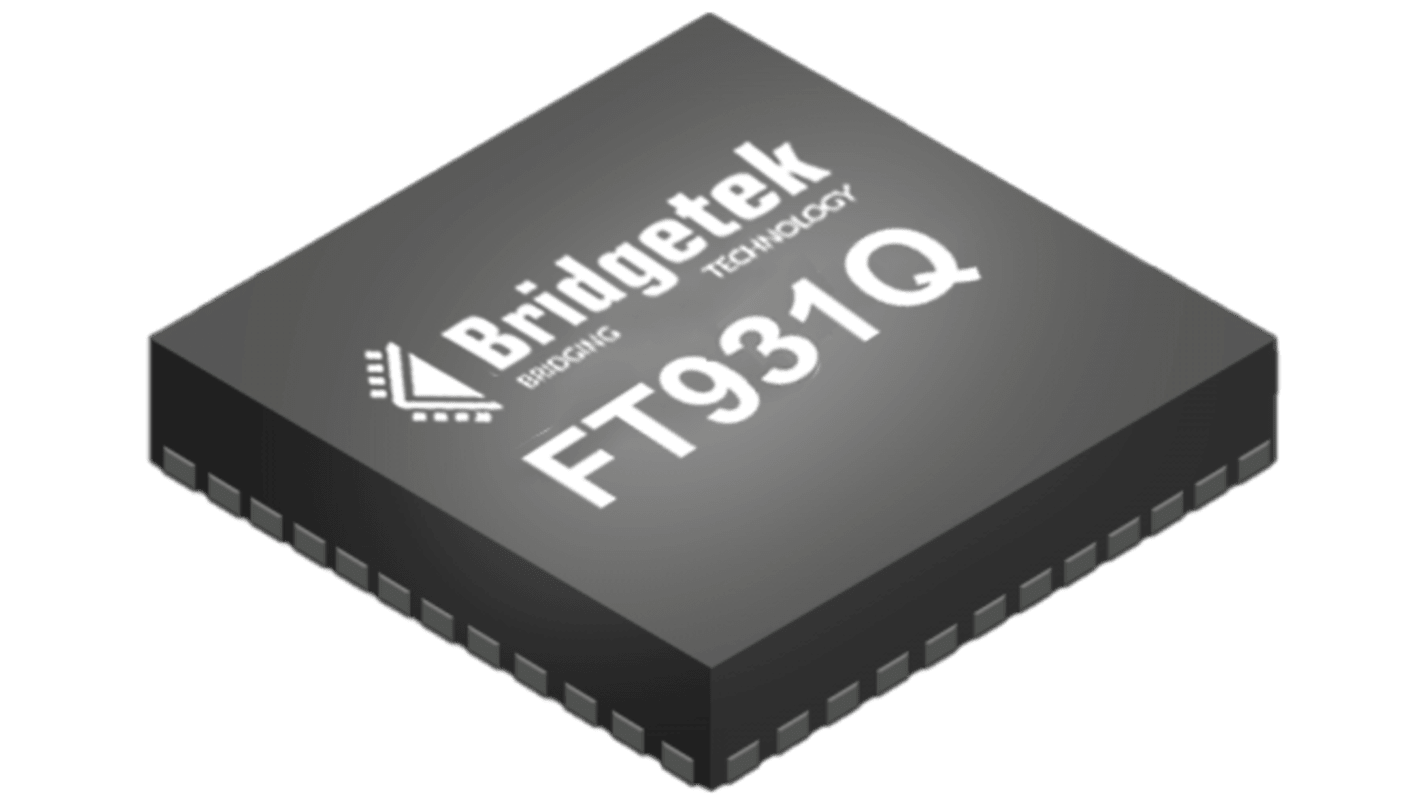

Bridgetek FT931Q-T, 32bit FT32B Microcontroller, FT93, 100MHz, 128 kB Flash, 56-Pin QFN
- RS-artikelnummer:
- 176-9102
- Tillv. art.nr:
- FT931Q-T
- Tillverkare / varumärke:
- Bridgetek
696 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 348)
47,37 kr
(exkl. moms)
59,21 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 348 + | 47,37 kr | 16 484,76 kr |
- RS-artikelnummer:
- 176-9102
- Tillv. art.nr:
- FT931Q-T
- Tillverkare / varumärke:
- Bridgetek
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
FT93x series – 32 bit MCU The FT93x series includes the FT930, FT931, FT932 and FT933 which are complete System-On-Chip 32-bit RISC microcontrollers for USB to multi-interface bridging and embedded applications featuring a high level of integration and low power consumption. With a D2XX hardware engine built-in, it is compatible with D2XX drivers.Using the industry standard GCC compiler, together with the Eclipse IDE, the FT9xx Toolchain (V.2.3.2) will allow the FT93x to utilise a wide variety of third-party and open source software.
Specifikationer
Attribute | Value |
|---|---|
| Family Name | FT93 |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 56 |
| Device Core | FT32B |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 x 8/16 bit |
| Number of SPI Channels | 1 |
| Number of UART Channels | 4 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of I2C Channels | 1 |
| Height | 0.85mm |
| Width | 8mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Pulse Width Modulation | 1 (8 x 16 bit) |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 3 x 8 bit |
| Length | 8mm |
| Dimensions | 8 x 8 x 0.85mm |
