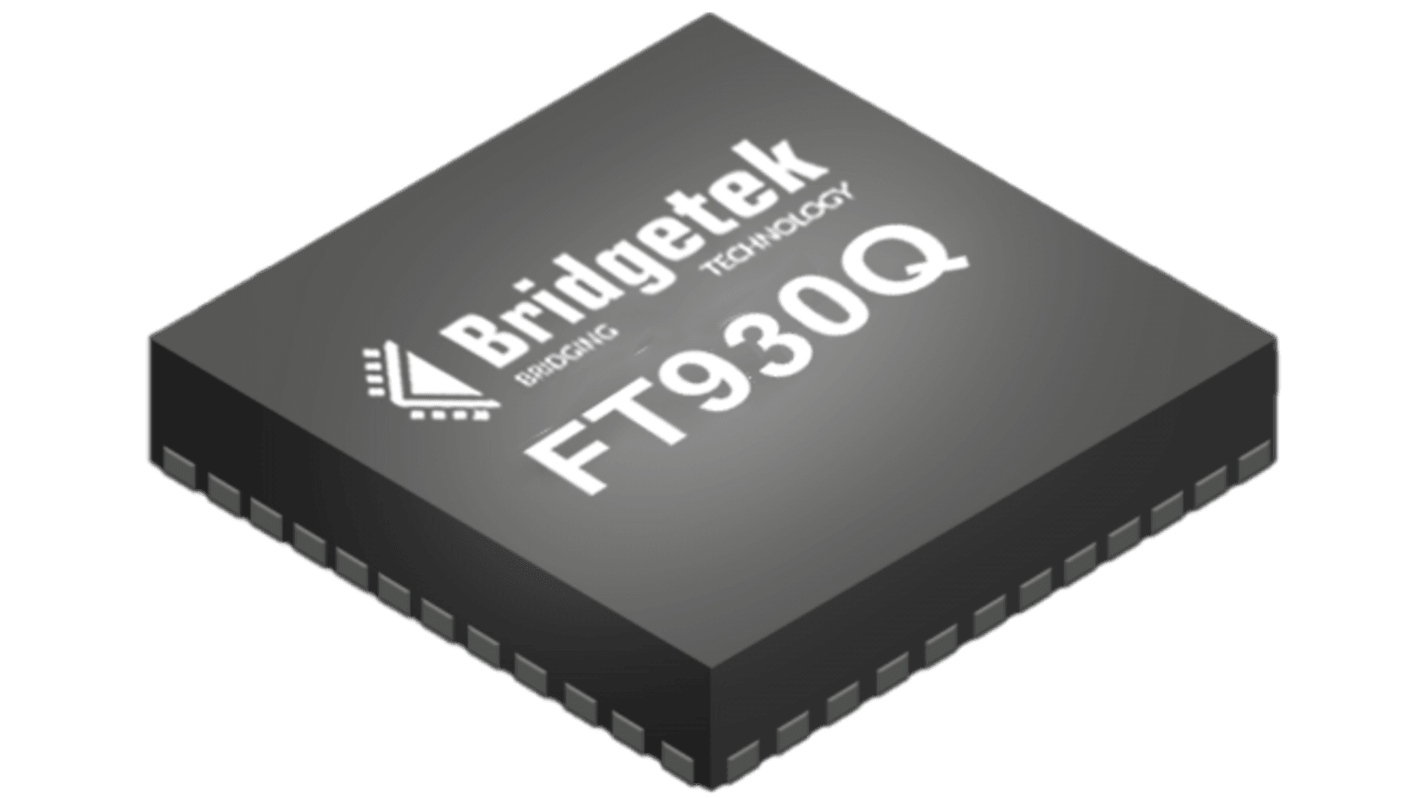

Bridgetek FT930Q-T, 32bit FT32B Microcontroller, FT93, 100MHz, 128 kB Flash, 68-Pin QFN
- RS-artikelnummer:
- 176-9101
- Tillv. art.nr:
- FT930Q-T
- Tillverkare / varumärke:
- Bridgetek
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 348)
48,50 kr
(exkl. moms)
60,62 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 348 + | 48,50 kr | 16 878,00 kr |
- RS-artikelnummer:
- 176-9101
- Tillv. art.nr:
- FT930Q-T
- Tillverkare / varumärke:
- Bridgetek
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
FT93x series – 32 bit MCU The FT93x series includes the FT930, FT931, FT932 and FT933 which are complete System-On-Chip 32-bit RISC microcontrollers for USB to multi-interface bridging and embedded applications featuring a high level of integration and low power consumption. With a D2XX hardware engine built-in, it is compatible with D2XX drivers.Using the industry standard GCC compiler, together with the Eclipse IDE, the FT9xx Toolchain (V.2.3.2) will allow the FT93x to utilise a wide variety of third-party and open source software.
Specifikationer
Attribute | Value |
|---|---|
| Family Name | FT93 |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 68 |
| Device Core | FT32B |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 x 8/16 bit |
| Number of SPI Channels | 1 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of UART Channels | 4 |
| Instruction Set Architecture | RISC |
| Height | 0.85mm |
| Width | 8mm |
| Pulse Width Modulation | 1 (8 x 16 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 8 x 8 x 0.85mm |
| Number of ADC Units | 1 |
| ADCs | 3 x 8 bit |
| Length | 8mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
