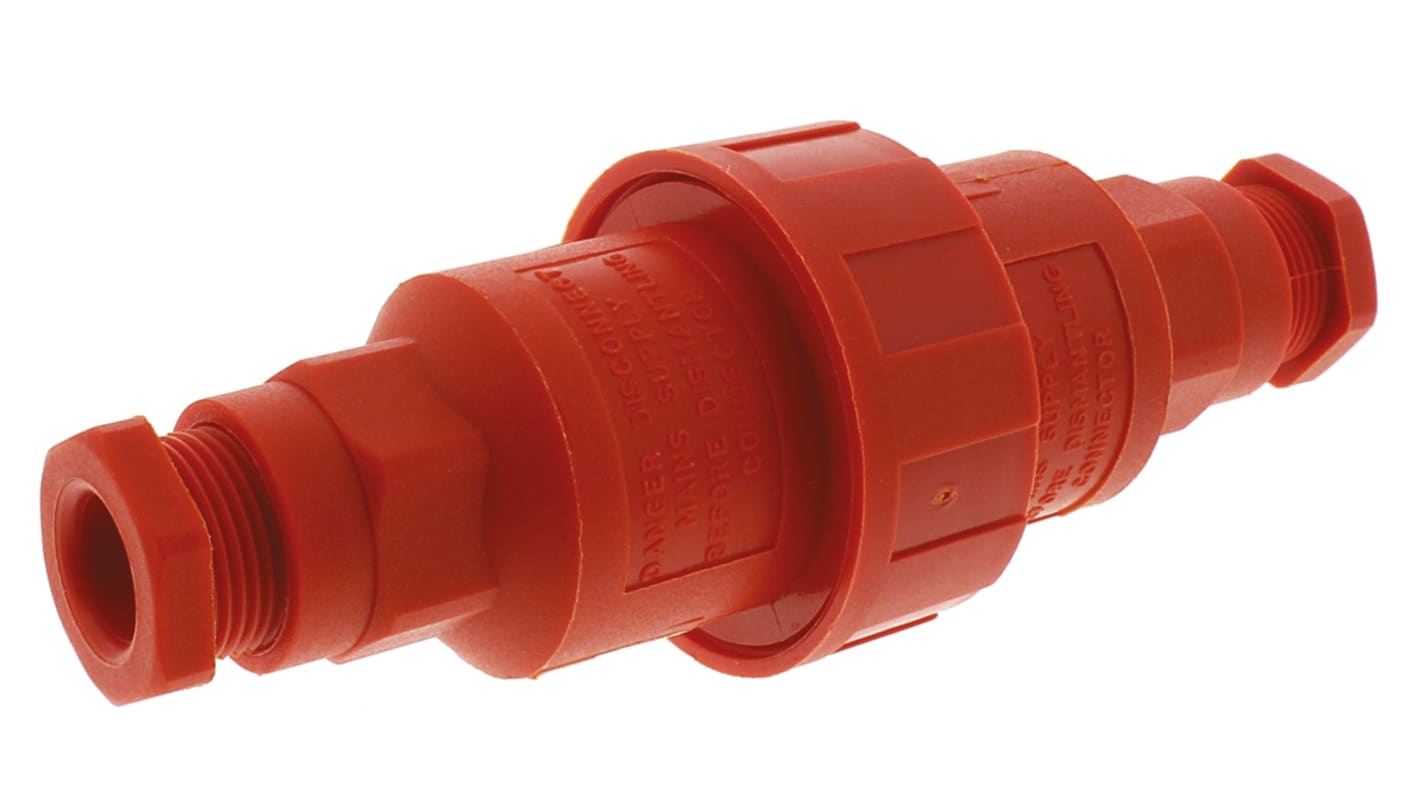

Bulgin 3 Pole IP68 Rating Cable Mount Mains Inline Connector Rated At 16A

  • RS-artikelnummer 110-949
  • Tillv. art.nr PX0777/OR
  • Tillverkare / varumärke Bulgin
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TN
Produktdetaljer

IP68 3-Core Mains Couplers

Black or orange versions incorporating a 3-way terminal block. Wiring instructions supplied.

Contact material: Nickel plated brass
Housing material: Glass filled polyamide
Operating temp: -25 to +70°C
Torque rating: Gland nut and locking 1.13Nm (min)

Specifikationer
Attribute Value
Pole Format 3
Mounting Type Cable Mount
Cable Diameter 6 → 8mm
Current Rating 16A
Voltage Rating 250 V ac
IP Rating IP68
Termination Method Crimp, Screw Down
Contact Material Brass
Contact Plating Nickel
Diameter 38.1mm
Length 105mm
Maximum Cable Diameter 8mm
Minimum Cable Diameter 6mm
Tillfälligt slut i lager – restorder för leverans 2020-11-25
Pris (ex. moms) Each
123,15 kr
(exkl. moms)
153,94 kr
(inkl. moms)
Enheter
Per unit
1 +
123,15 kr
