ABUS Rectangular Reed Switch, NC, 24V, 200mA
- RS-artikelnummer:
- 524-5472
- Tillv. art.nr:
- MK1010W
- Tillverkare / varumärke:
- ABUS Security-Center
65 I lager för avsändande samma dag
331 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
114,67 kr
(exkl. moms)
143,34 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 114,67 kr |
- RS-artikelnummer:
- 524-5472
- Tillv. art.nr:
- MK1010W
- Tillverkare / varumärke:
- ABUS Security-Center
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- CN
Produktdetaljer
2 or 4-wire Magnetic Contacts
Combined opening sensor (reed contact) for flush/surface mounting with NC or NO contact
Suitable for private and commercial buildings with large switching distances
Suitable for all applications
The contacts are suitable for both parallel and overhead mounting (magnet/contact)
Suitable for private and commercial buildings with large switching distances
Suitable for all applications
The contacts are suitable for both parallel and overhead mounting (magnet/contact)
Approvals
VdS class B-approved
Supplied with

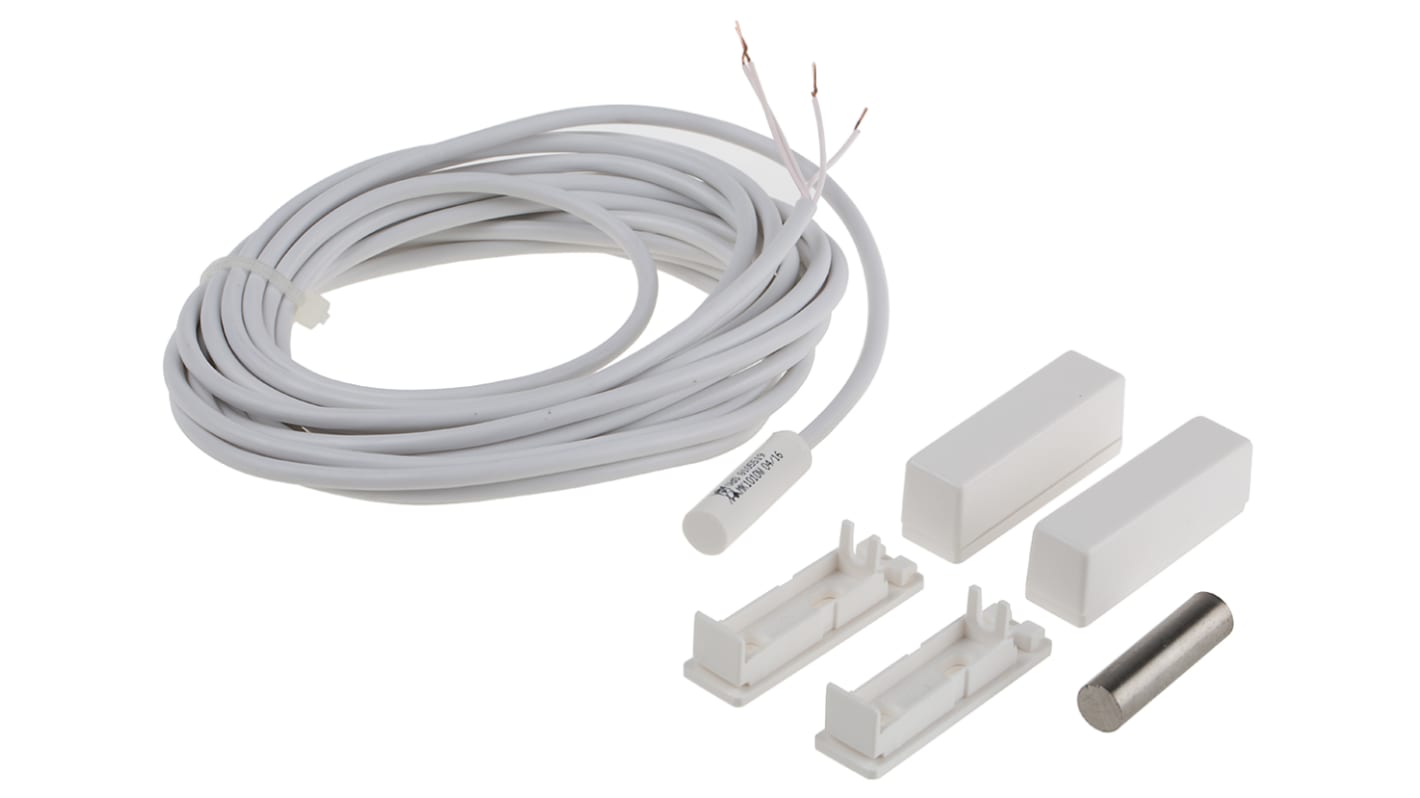

Opening sensor, mounting kit (comprising mounting housing, shims and fastening screws)
ABUS Reed Switch Sensor, NC, Rectangular, 24V, 200 mA, white
Specifikationer
Attribute | Value |
|---|---|
| Switch Shape | Rectangular |
| Normal State Configuration | NC |
| Terminal Type | Wire Lead |
| Maximum Current | 200mA |
| Maximum AC Voltage | 24V |
| Maximum DC Voltage | 24V |
| Total Length | 4048mm |
| Length | 48mm |
| Dimensions | 48 x 11 x 12mm |
| Depth | 48mm |
| Width | 11mm |
