- RS-artikelnummer:
- 761-5400
- Tillv. art.nr:
- DS90LV049TMT/NOPB
- Tillverkare / varumärke:
- Texas Instruments
- RS-artikelnummer:
- 761-5400
- Tillv. art.nr:
- DS90LV049TMT/NOPB
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

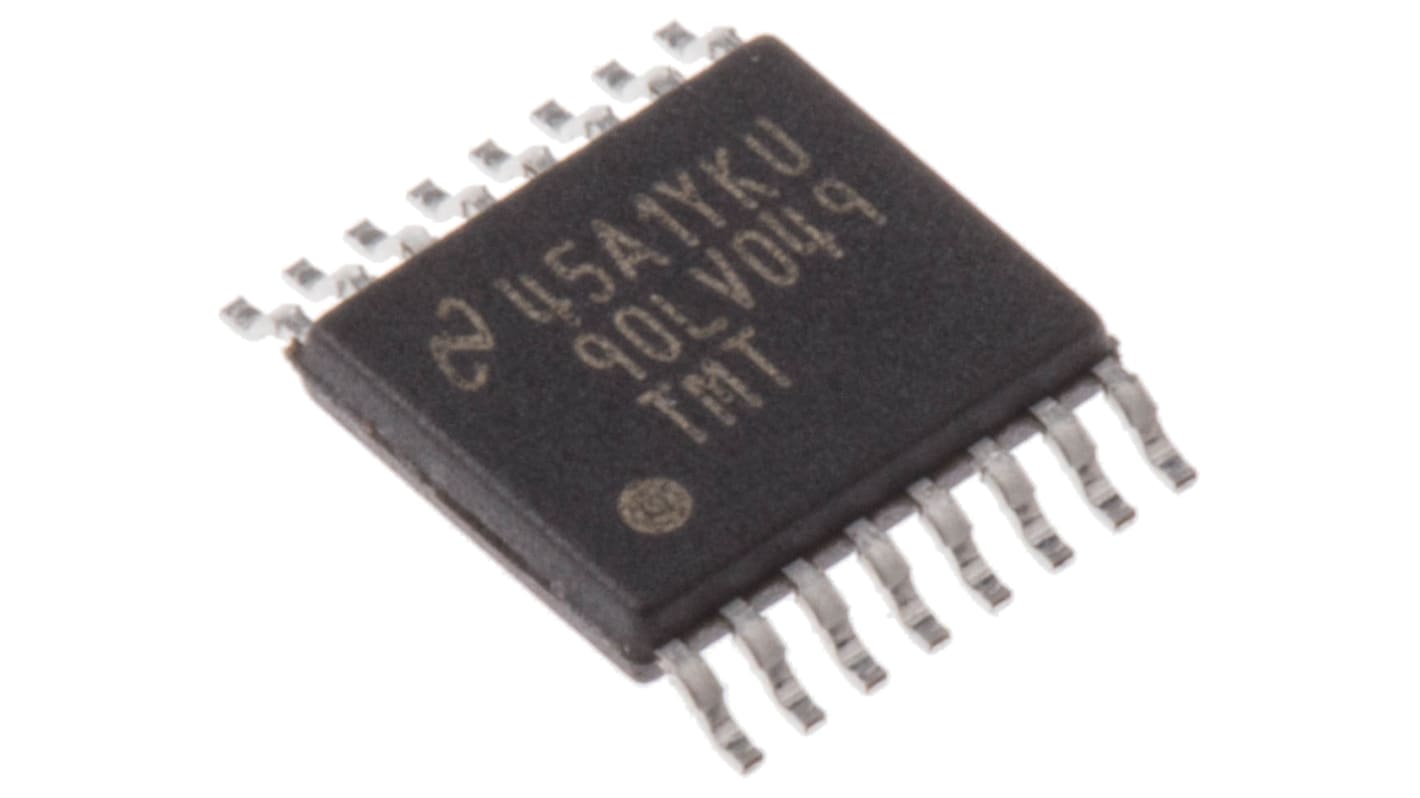

Differential Line Drivers and Receivers (LVDS PHY), Texas Instruments
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
Specifikationer
Attribute | Value |
---|---|
Number of Drivers | 2 |
Input Type | LVCMOS, LVTTL |
Output Type | LVDS |
IC Type | Transmitter IC |
Transmission Data Rate | 400Mbps |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Pin Count | 16 |
Differential Input High Threshold Voltage | +35mV |
Differential Input Low Threshold Voltage | -100mV |
Dimensions | 5 x 4.4 x 0.9mm |
Height | 0.9mm |
Length | 5mm |
Maximum Operating Supply Voltage | 3.6 V |
Minimum Operating Supply Voltage | 3 V |
Width | 4.4mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
