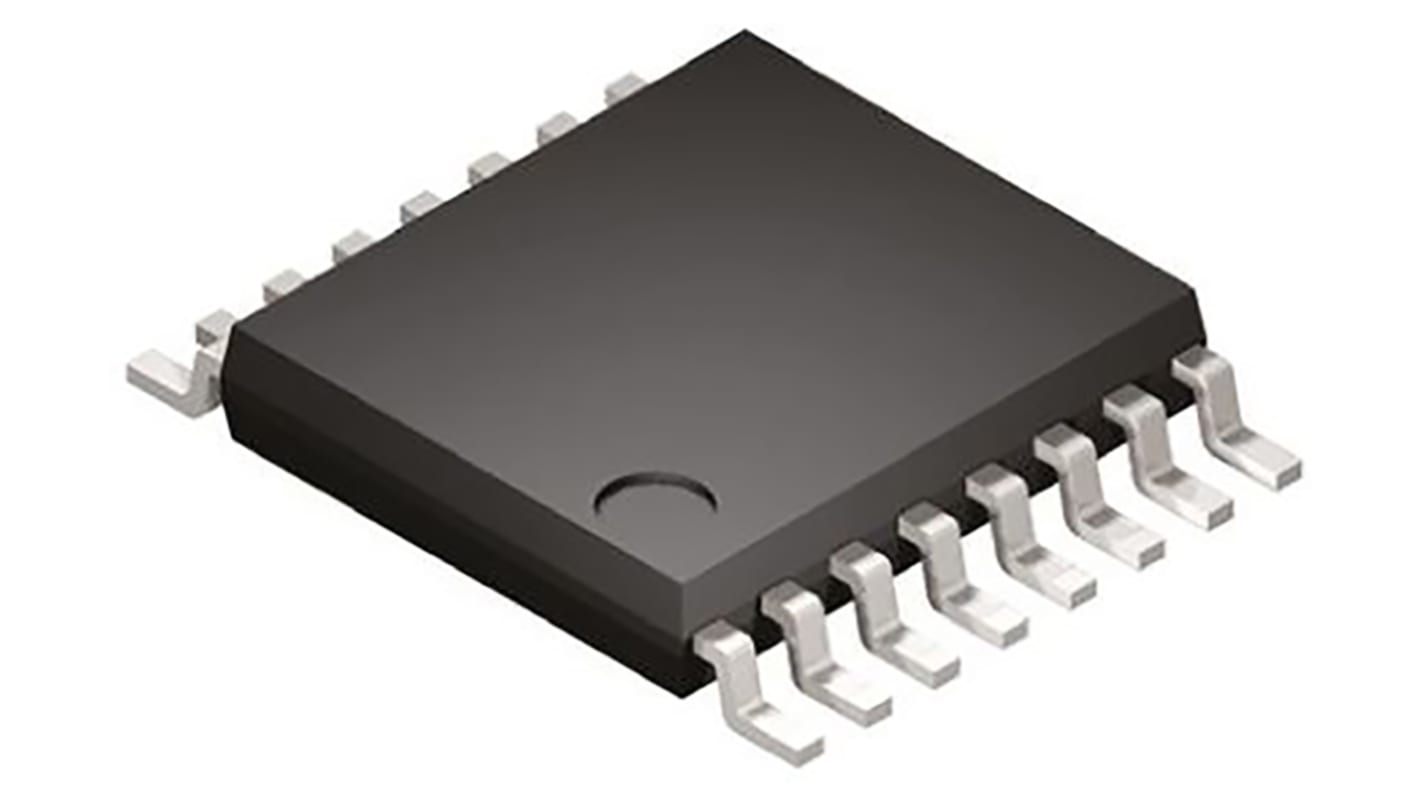

Texas Instruments SN65LVDS32PW, LVDS Receiver Quad LVTTL, 16-Pin TSSOP
- RS-artikelnummer:
- 462-0305
- Tillv. art.nr:
- SN65LVDS32PW
- Tillverkare / varumärke:
- Texas Instruments
20 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
28,55 kr
(exkl. moms)
35,69 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 28,55 kr |
| 5 - 9 | 27,13 kr |
| 10 - 24 | 24,51 kr |
| 25 - 49 | 22,10 kr |
| 50 + | 20,79 kr |
- RS-artikelnummer:
- 462-0305
- Tillv. art.nr:
- SN65LVDS32PW
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
LVDS Line Receivers, Texas Instruments
A range of Differential line receivers for balanced or unbalanced digital data transmission via LVDS networks fromTexas Instruments.
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
Specifikationer
Attribute | Value |
|---|---|
| Number of Drivers | 4 |
| Input Type | LVDS |
| IC Type | Receiver IC |
| Output Type | LVTTL |
| Transmission Data Rate | 100Mbps |
| Number of Elements per Chip | 4 |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 16 |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
| Dimensions | 5 x 4.4 x 1.15mm |
| Height | 1.15mm |
| Length | 5mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Width | 4.4mm |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -40 °C |
