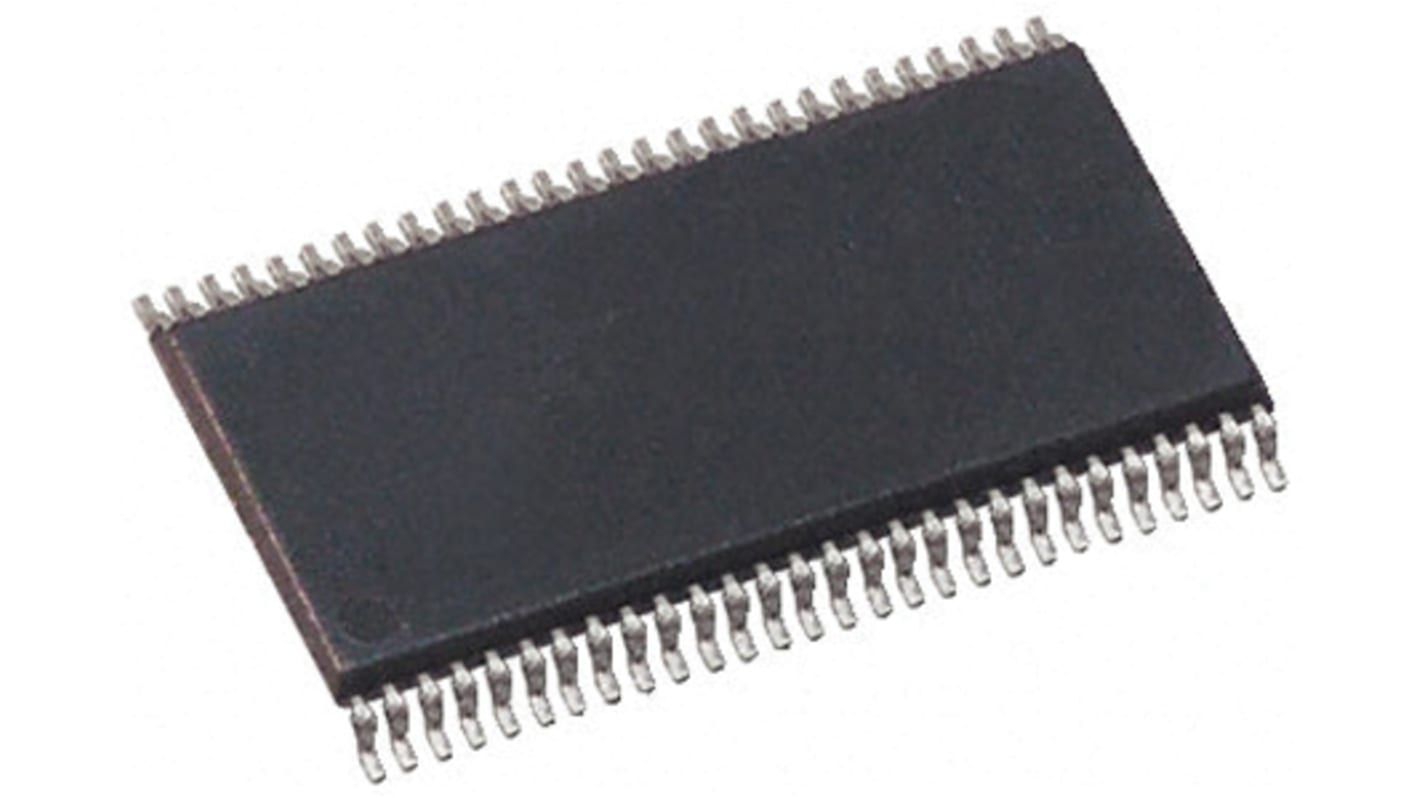

Texas Instruments DS90CF386MTD/NOPB, LVDS Receiver 28 LVCMOS, 56-Pin TSSOP
- RS-artikelnummer:
- 178-9096
- Tillv. art.nr:
- DS90CF386MTD/NOPB
- Tillverkare / varumärke:
- Texas Instruments
Tillfälligt slut i lager – restorder för leverans 2025-10-07
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 34)
51,245 kr
(exkl. moms)
64,056 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 34 + | 51,245 kr | 1 742,33 kr |
- RS-artikelnummer:
- 178-9096
- Tillv. art.nr:
- DS90CF386MTD/NOPB
- Tillverkare / varumärke:
- Texas Instruments
Lagstiftning och ursprungsland
Produktdetaljer
FlatLink/FPD-Link Serialiser/Deserialiser, Texas Instruments
LVDS Transmitters for use with 24-bit FPD (Flat Panel Display) links operating at 65 and 85 MHz.
LVCMOS/LVTTL inputs
3.3V Low-power operation
PLL transmitter data clock
Complies with TIA/EIA-644 LVDS standard
3.3V Low-power operation
PLL transmitter data clock
Complies with TIA/EIA-644 LVDS standard
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
Specifikationer
Attribute | Value |
|---|---|
| Number of Drivers | 28 |
| Input Type | LVDS |
| Output Type | LVCMOS |
| IC Type | Receiver IC |
| Transmission Data Rate | 2380Mbps |
| Number of Elements per Chip | 3 |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 56 |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
| Dimensions | 14 x 6.1 x 0.9mm |
| Height | 0.9mm |
| Length | 14mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Width | 6.1mm |
| Minimum Operating Temperature | -10 °C |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Temperature | +70 °C |
