- RS-artikelnummer:
- 795-9940
- Tillv. art.nr:
- 174-185D
- Tillverkare / varumärke:
- Mitutoyo
I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
8 380,04 kr
(exkl. moms)
10 475,05 kr
(inkl. moms)
Enheter | Per unit |
1 + | 8 380,04 kr |
- RS-artikelnummer:
- 795-9940
- Tillv. art.nr:
- 174-185D
- Tillverkare / varumärke:
- Mitutoyo
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer

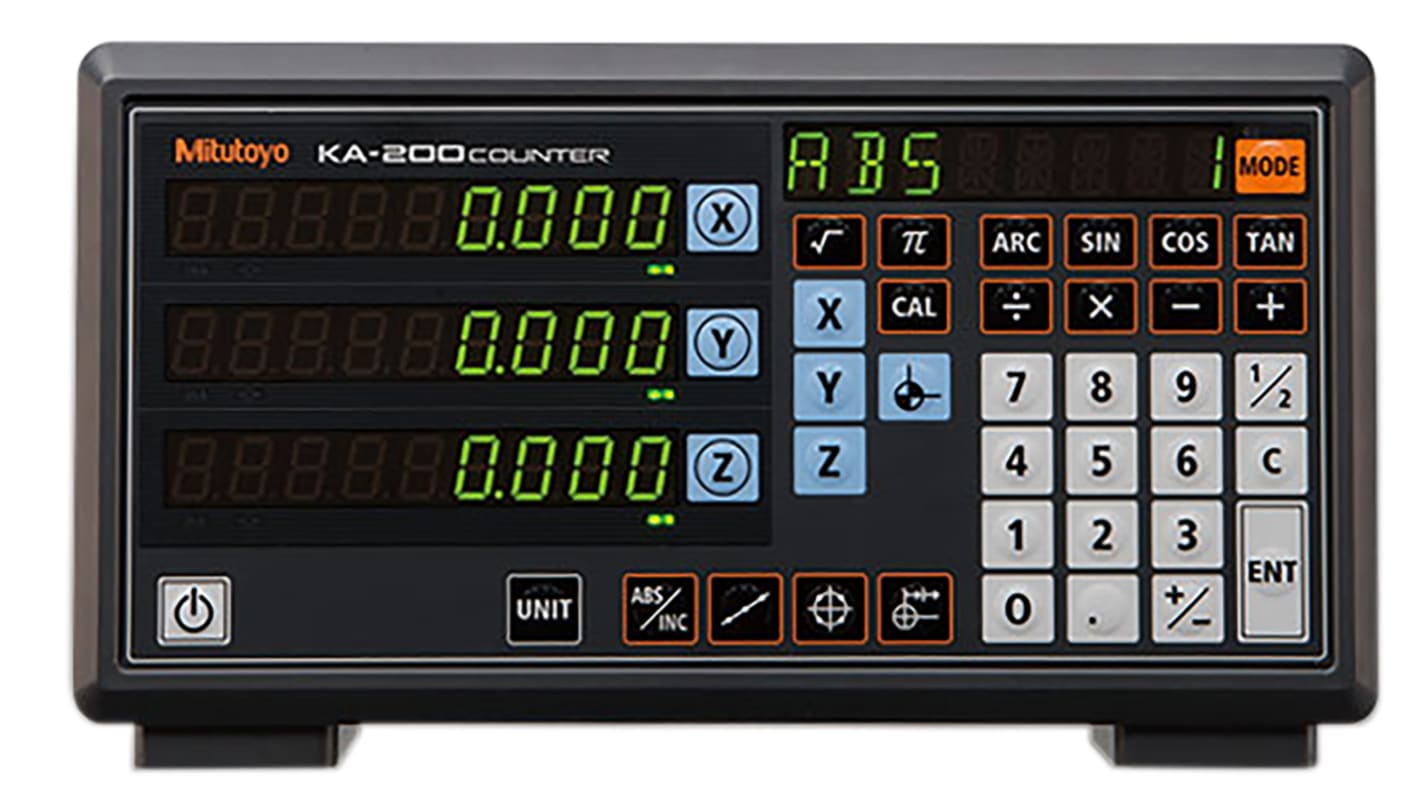

KA-200 Counter
The KA-200 Counter from Mitutoyo is an intuitive display unit for linear scales. It features a large display for easy reading. Improvement to the sub display makes it easier to navigate through parameters. You can switch between absolute and incremental modes, there are ten pre-set modes and a function lock that holds the settings and prevents accidental changes.
Features and Benefits
3 Axis
Absolute and incremental modes
Non-linear error compensation
Function lock
Adjustable LED intensity
Multiplier function and an option to output directly to spreadsheets using a USB card
Feed speed display
Taper machining function
Tool data and a calculation function
Absolute and incremental modes
Non-linear error compensation
Function lock
Adjustable LED intensity
Multiplier function and an option to output directly to spreadsheets using a USB card
Feed speed display
Taper machining function
Tool data and a calculation function
Application Information
General Lathes
General milling machines
Inspection
Research equipment
General milling machines
Inspection
Research equipment
Linear Scales
Specifikationer
Attribute | Value |
---|---|
Counter Series | KA-213 |
Counter Type | Linear Scale |
Number of Axes | 3 |
Resolution | 0.0001 mm, 0.0005 in, 0.001 in, 0.005 mm |
Function Type | Multi Function |
Display Type | LED |
For Use With | AT102 Scale, AT103 Scale, AT111 Scale, AT112 Scale, AT113 Scale, AT115 Scale, AT116 Scale, AT181 Scale, AT715 Scale |
Operating Voltage | 220V ac |
Operating Temperature Range | 0 → +40 °C |
Maximum Operating Temperature | +40°C |
Minimum Operating Temperature | 0°C |
Overall Height | 167mm |
Overall Width | 260mm |
