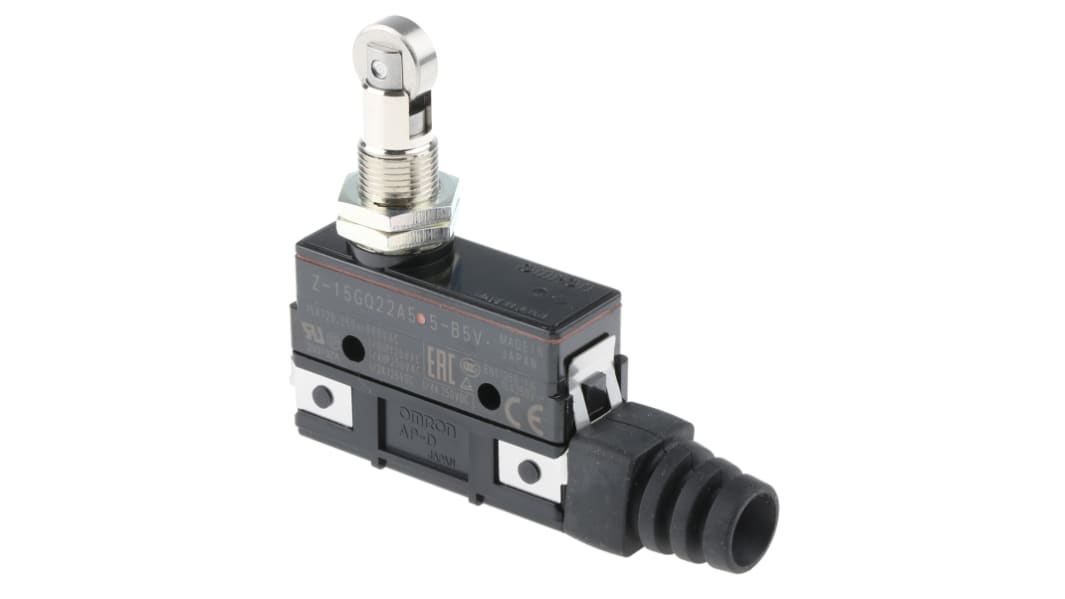

IP62 Snap Action Limit Switch Roller Plunger, NO/NC, 500V

  • RS-artikelnummer 822-5591
  • Tillv. art.nr Z-15GQ22A55-B5V
  • Tillverkare / varumärke Omron
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Z15 Series – Basic Switch

The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies.

High precision basic switch in a wide range of variations
Large switching capacity of 15A with high repeat accuracy
Contact configuration: SPDT
Contact rating: 250Vac 15A, 14Vdc 15A
Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)

Approvals

UL recognised, CSA

Specifikationer
Attribute Value
Actuator Type Roller Plunger
Pole and Throw Configuration SPDT
Normal State Configuration NO/NC
IP Rating IP62
Maximum Current 15 A
Maximum AC Voltage 500V
Maximum DC Voltage 250V
Connection Type M4
Contact Type Snap Action
Terminal Type Screw
Length 81.6mm
Width 35.5mm
Depth 17.45mm
Maximum Operating Temperature +80°C
Mechanical Life Minimum 20000000 Operations
Dimensions 81.6 x 35.5 x 17.45 mm
Minimum Operating Temperature -25°C
21 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
435,90 kr
(exkl. moms)
544,88 kr
(inkl. moms)
Enheter
Per unit
1 - 4
435,90 kr
5 - 14
418,22 kr
15 +
404,54 kr
