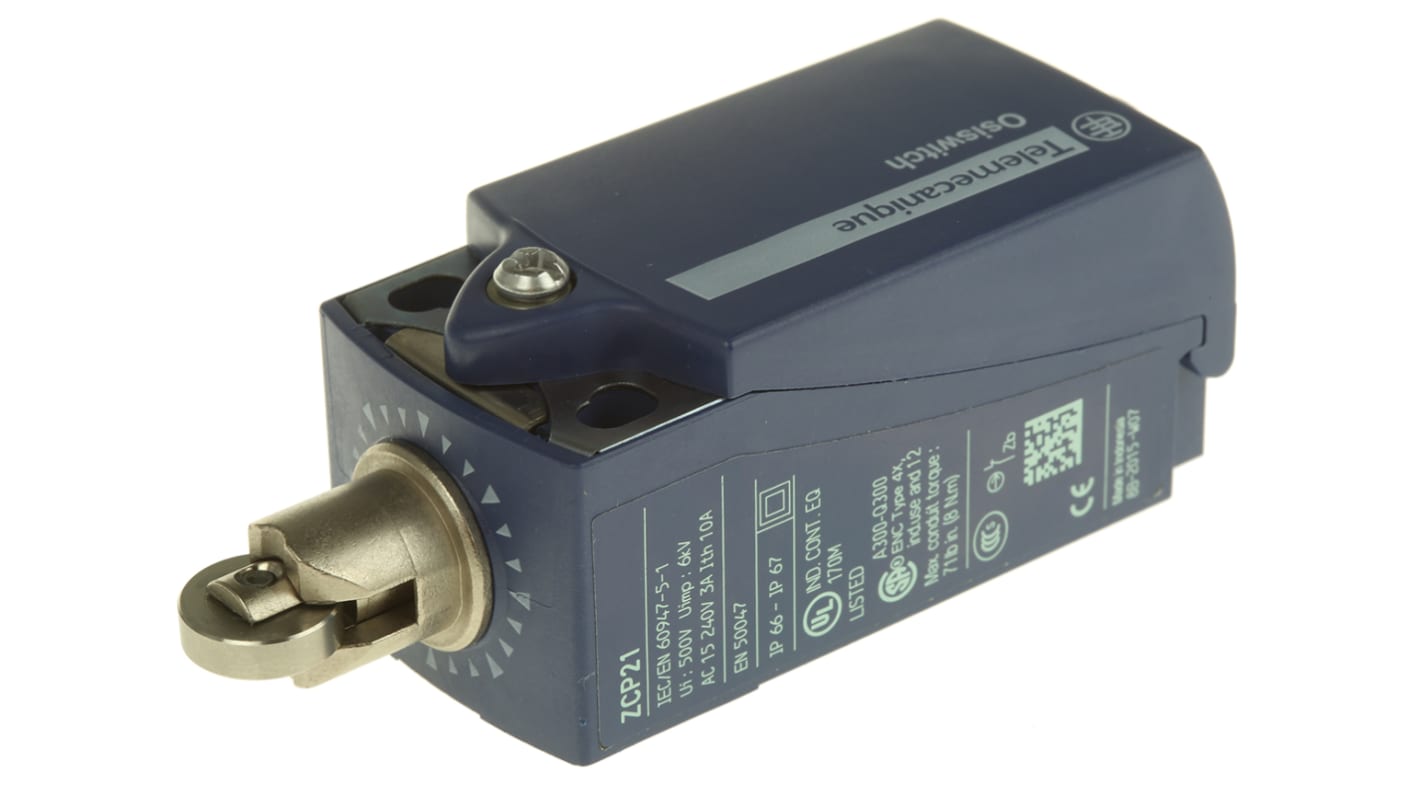

IP66, IP67 Snap Action Limit Switch Plunger Plastic, NO/NC, 240V

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): ID
Produktdetaljer

Telemecanique Limit Switches

Introducing Telemecanique XCKP range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. Telemecanique OsiSense XCKP series limit switches are compact in design and offer users a 40% time-saving reduction on an electrical connection.

How does a limit switch work?

The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.

Specifikationer
Attribute Value
Actuator Type Plunger
Pole and Throw Configuration DP
Normal State Configuration NO/NC
IP Rating IP66, IP67
Maximum Current 10 A
Housing Material Plastic
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Series OsiSense XC
Contact Type Snap Action
Terminal Type Screw
Length 65mm
Width 31mm
Depth 30mm
Minimum Operating Temperature -25°C
Mechanical Life Minimum 10000000 cycles
Maximum Operating Temperature +70°C
Dimensions 65 x 31 x 30 mm
10 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
294,69 kr
(exkl. moms)
368,36 kr
(inkl. moms)
Enheter
Per unit
1 - 4
294,69 kr
5 - 14
282,72 kr
15 +
273,47 kr
