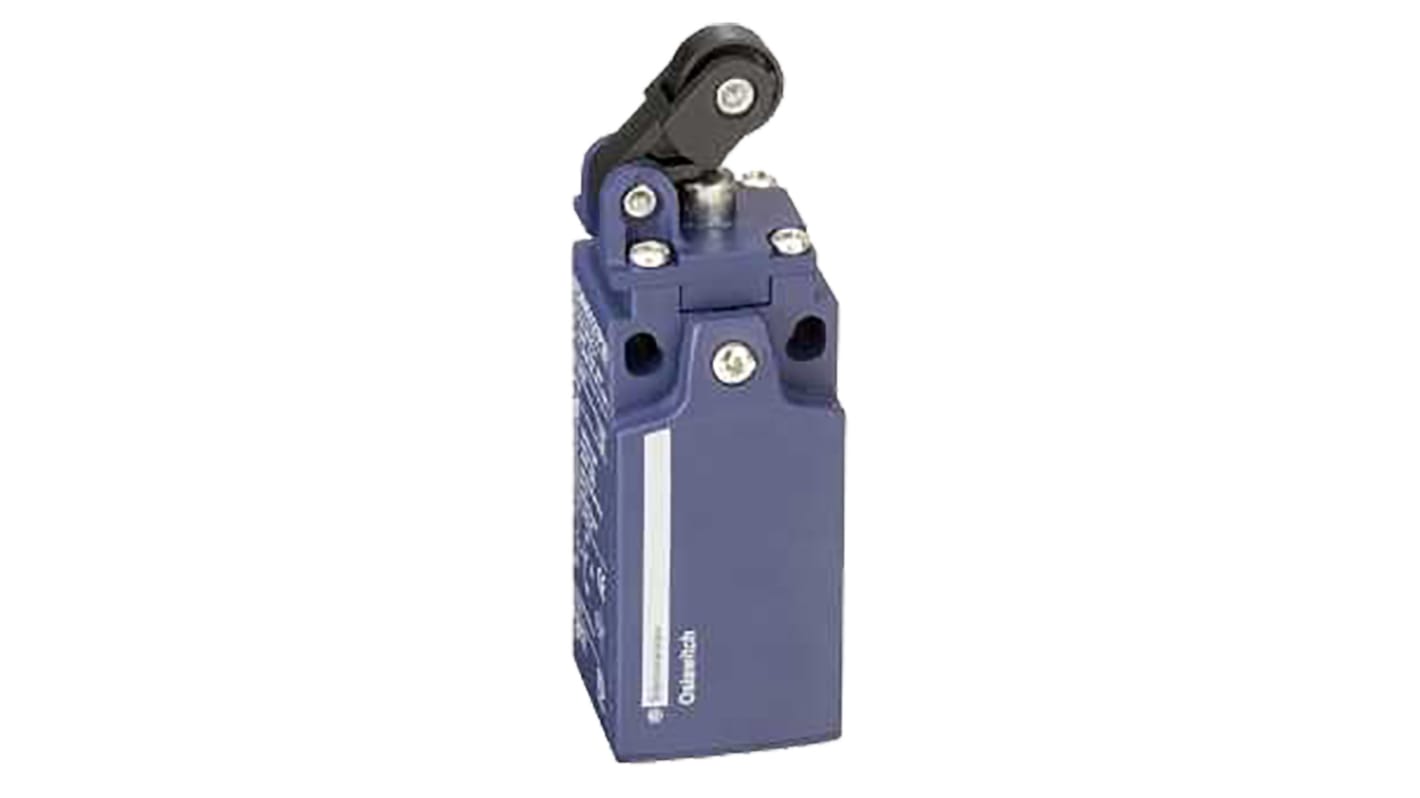

Telemecanique Sensors OsiSense XC Series Plunger Roller Lever Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac
- RS-artikelnummer:
- 125-8463
- Tillv. art.nr:
- XCKN2121P20
- Tillverkare / varumärke:
- Telemecanique Sensors
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
271,94 kr
(exkl. moms)
339,92 kr
(inkl. moms)
Enheter | Per unit |
1 + | 271,94 kr |
- RS-artikelnummer:
- 125-8463
- Tillv. art.nr:
- XCKN2121P20
- Tillverkare / varumärke:
- Telemecanique Sensors
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
Produktdetaljer
Telemecanique Limit Switches
Introducing Telemecanique XCKN range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. Telemecanique OsiSense XCKN series limit switches are a compact design with a wide variety of actuator heads available. The XCKN series is a monolithic plastic limit switch dedicated to repetitive action.
How does a limit switch work?
The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
Specifikationer
Attribute | Value |
---|---|
Actuator Type | Plunger Roller Lever |
Pole and Throw Configuration | DP |
Normal State Configuration | NO/NC |
IP Rating | IP65 |
Maximum Current | 10A |
Housing Material | Plastic |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Connection Type | M20 |
Series | OsiSense XC |
Action Type | Snap Action |
Length | 30mm |
Minimum Operating Temperature | -25°C |
Depth | 93.7mm |
Maximum Operating Temperature | +70°C |
Width | 30mm |
Operating Force | 6 N |
Mechanical Life | 10000000Cycles |
Mounting Orientation | EN50047 |
