Wago 250 Series PCB Terminal Strip, 12-Pole, Female, 12-Way, PCB Mount, 10 (CSA) A, 17.5 (IEC/EN 60664-1) A, 2 (UL) A
- RS-artikelnummer:
- 126-8924
- Tillv. art.nr:
- 250-612
- Tillverkare / varumärke:
- Wago
Tillfälligt slut i lager – restorder för leverans 2024-06-10
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
37,306 kr
(exkl. moms)
46,632 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 20 | 37,306 kr | 186,53 kr |
| 25 - 45 | 36,102 kr | 180,51 kr |
| 50 + | 34,92 kr | 174,60 kr |
- RS-artikelnummer:
- 126-8924
- Tillv. art.nr:
- 250-612
- Tillverkare / varumärke:
- Wago
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CH
Produktdetaljer

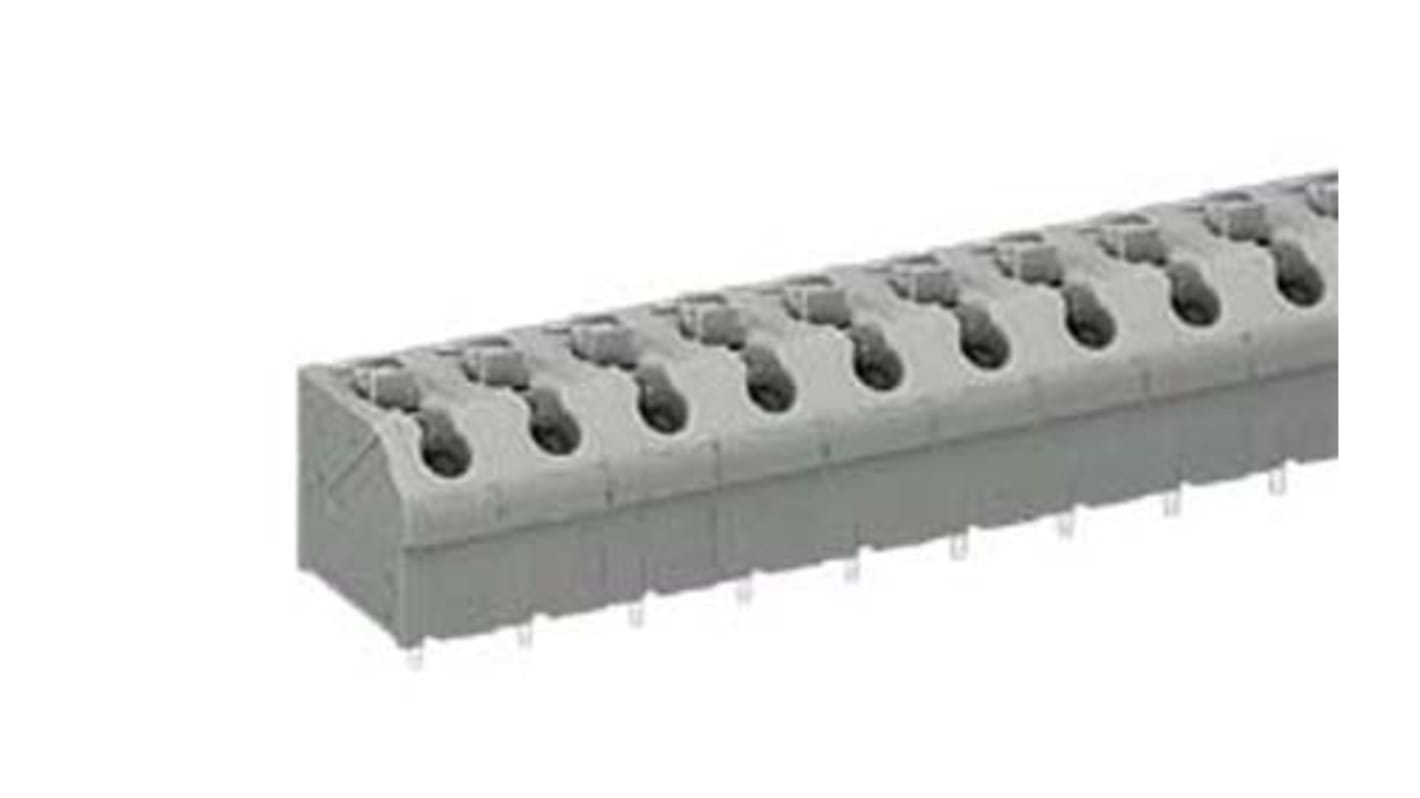

Wago Terminal Strip with Pushbuttons,7.5 mm Pitch
Wago offer this range of PCB Terminal Strips with push buttons and tin-plated contact. With a pin spacing of 7.5 mm
Features and Benefits
• Compact terminal strips with push buttons
• Simple, push in terminations of solid and ferruled conductors
• Termination/removal of fine-stranded conductors via push buttons
• 45° conductor entry angle provides easy, space-saving wiring
• Simple, push in terminations of solid and ferruled conductors
• Termination/removal of fine-stranded conductors via push buttons
• 45° conductor entry angle provides easy, space-saving wiring
Wago PCB Terminal Blocks
Specifikationer
Attribute | Value |
|---|---|
| Pole Format | 12 |
| Series | 250 |
| Gender | Female |
| Number of Ways | 12 |
| Plug/Socket | Socket |
| Colour | Grey |
| Type | PCB Terminal Strip |
| Mounting Type | PCB Mount |
| Current Rating | 10 (CSA) A, 17.5 (IEC/EN 60664-1) A, 2 (UL) A |
| Voltage Rating | 1 kV |
| Wire Size | 20 → 14 (Solid) AWG, 20 → 16 AWG |
| Contact Plating | Tin |
| Termination Method | Push-In Cage Clamp |
