Siemens Level Probe Relay Output

  • RS-artikelnummer 513-2427
  • Tillv. art.nr 7ML5610-0BD20
  • Tillverkare / varumärke Siemens
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
Produktdetaljer

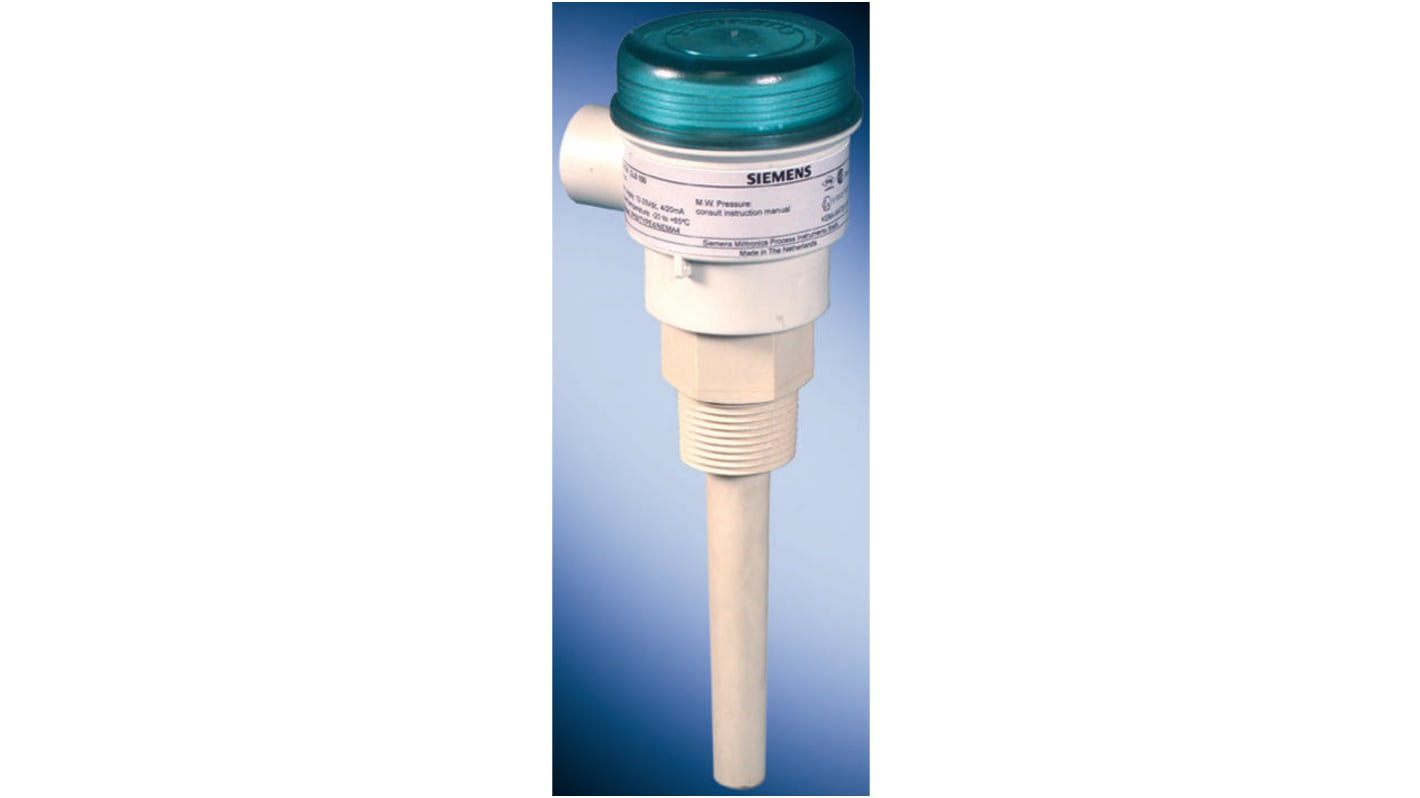

CLS100 Pointek Capacitance Point Level Sensor

Simens CLS100 Pointek range provide accurate, reliable, repeatable level detection. Inverse frequency shift technology uses the inverse relationship between capacitance frequency to monitor fluid level. Small changes in level result in a large change in frequency resulting in excellent accuracy. Compact design to aid installation in tight spaces, on small chemical batch tanks, for empty pipe line detection or for water/oil lubrication pump reservoirs.

Tip sensitive
Versatile, compact 100mm insertion level switch
Suitable for liquids, solids, slurries, foam and interface applications
Inverse ’Frequency Shift’ technology for difficult applications where vibrating fork (tuning fork) or traditional sensors prove unsuitable
High resistance to material build-up
Easy to install and calibrate
PPS (Polyphenylene Sulfide) corrosion-resistant material offers excellent chemical compatibility
Low or zero maintenance - no moving parts
May be installed in tight spaces e.g. a high and low level switch on

Approvals

CSA Certified, FM

//media.rs-online.com/t_line/L513242-01.gif
Specifikationer
Attribute Value
Device Type Capacitance
Switch Output Relay
Body Material Polyphenylene Sulfide
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Maximum Current 20 mA
Maximum Pressure 10bar
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Pris (ex. moms) Each
1 487,80 kr
(exkl. moms)
1 859,75 kr
(inkl. moms)
Enheter
Per unit
1 +
1 487,80 kr
