Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

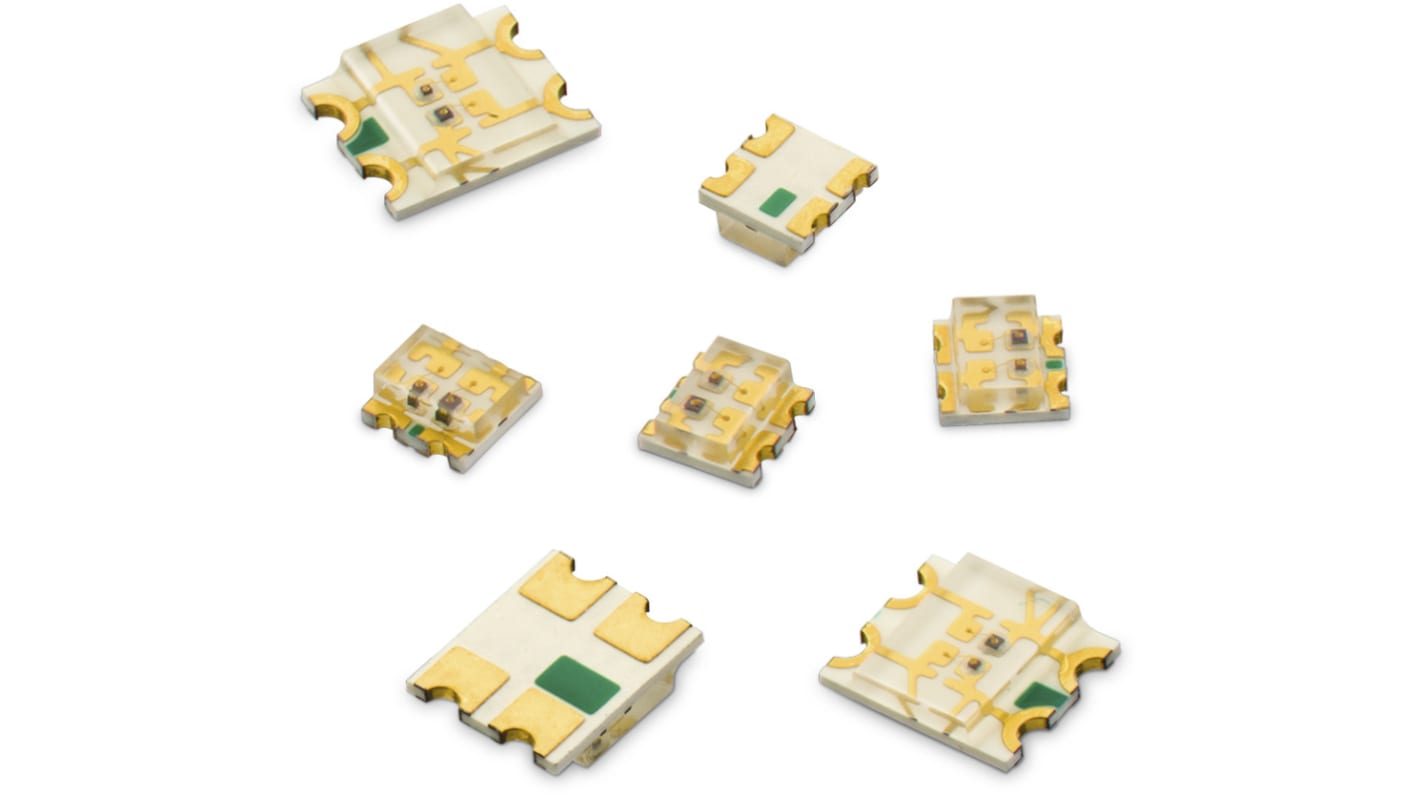

Characteristics
Two chips in one package
Small size
Standard Soldering Pad
High efficiency
Low power consumption
Wide viewing angle
Small package for exceptional brightness
Compatible with automatic placement machines
Packaged in standard tape and reel 7"
Applications
Backlighting applications
Status indicator
Front panel indicators
Push button backlighting
Two chips in one package
Small size
Standard Soldering Pad
High efficiency
Low power consumption
Wide viewing angle
Small package for exceptional brightness
Compatible with automatic placement machines
Packaged in standard tape and reel 7"
Applications
Backlighting applications
Status indicator
Front panel indicators
Push button backlighting
Specifikationer
Attribute | Value |
---|---|
LED Colours | Green, Yellow |
Package Type | 1616 (0606) |
Mounting Type | Surface Mount |
Number of LEDs | 2 |
Forward Voltage | 2.4 V |
Luminous Intensity | 30 mcd, 120 mcd |
Number of Pins | 4 |
Viewing Angle | 130 ° |
Lens Shape | Rectangle |
Dominant Wavelength | 570 (Bright Green) nm, 590 (Yellow) nm |
Forward Current | 30mA |
Dimensions | 1.6 x 1.6 x 0.4mm |
Lens Colour | Clear |
Lens Finish | Clear |
Series | WL-SBCW |
