- RS-artikelnummer:
- 891-0618
- Tillv. art.nr:
- CP13072_IRENE-IR-16
- Tillverkare / varumärke:
- Ledil
Tillfälligt slut i lager – restorder för leverans 2024-05-23
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 4)
29,785 kr
(exkl. moms)
37,231 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
4 - 36 | 29,785 kr | 119,14 kr |
40 - 96 | 26,393 kr | 105,572 kr |
100 - 196 | 17,12 kr | 68,48 kr |
200 - 396 | 16,245 kr | 64,98 kr |
400 + | 15,315 kr | 61,26 kr |
- RS-artikelnummer:
- 891-0618
- Tillv. art.nr:
- CP13072_IRENE-IR-16
- Tillverkare / varumärke:
- Ledil
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

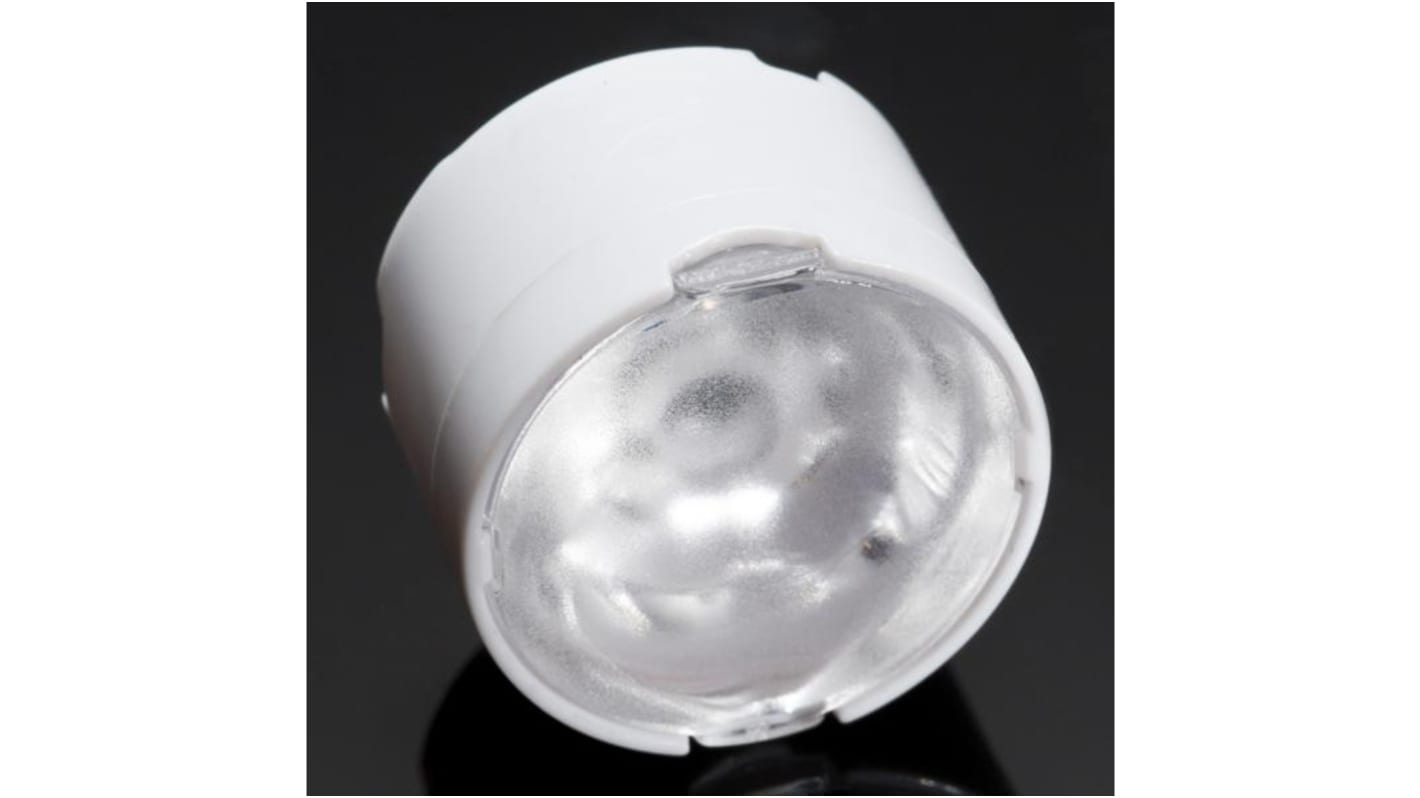

LEDiL IRENE Series LED Lenses
The IRENE series from LEDil, are a family of round LED lenses with a white PC holder. This range is designed for use with a single LED and has a square beam pattern designed for IR CCT camera chip compatibility.
The IRENE lenses offer a range of beam angles and direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
Made using an optical grade PMMA, the IRENE lenses offer a high UV and temperature resistance. IRENE lenses have been designed and optimised for use with a variety of IR LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
The IRENE lenses offer a range of beam angles and direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
Made using an optical grade PMMA, the IRENE lenses offer a high UV and temperature resistance. IRENE lenses have been designed and optimised for use with a variety of IR LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.
Note
The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.
LEDiL Single LED Lenses
Specifikationer
Attribute | Value |
---|---|
Series | Irene |
Product Type | LED Lens |
Number of LEDs Per Lens | 1 |
Emission Pattern | Round |
Affixing Method | Glue, Pin |
For Use With | OSRAM SFH 4715S, OSRAM SFH 4725S |
Dimensions | 21.6 x 14.28mm |
Diameter | 21.6mm |
Height | 14.28mm |
Kit Contents | Holder, Lens |
- RS-artikelnummer:
- 891-0618
- Tillv. art.nr:
- CP13072_IRENE-IR-16
- Tillverkare / varumärke:
- Ledil
