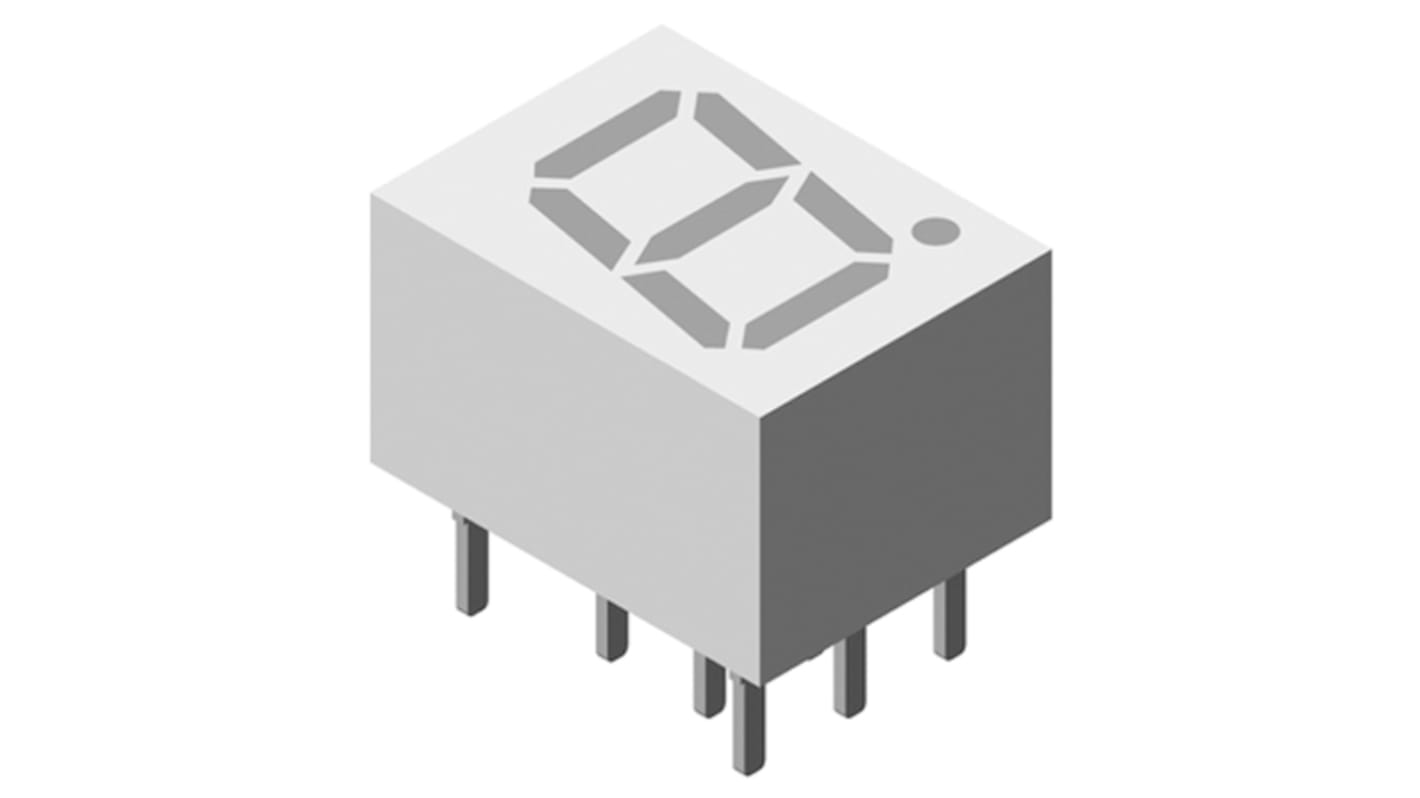

TDSO1150 Vishay 7-Segment LED Display, CA Red-Orange 3 mcd RH DP 7mm

  • RS-artikelnummer 178-0935
  • Tillv. art.nr TDSO1150
  • Tillverkare / varumärke Vishay
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

7-Segment LED Displays, Vishay

Single digit, 7-Segment LED Displays from Vishay.

Vishay LED Displays

Specifikationer
Attribute Value
Display Type 7-Segment
Number of Characters 1
LED Colours Red-Orange
Number of Segments 7
Dominant Wavelength 625 nm
Character Width 4.7mm
Character Height 7mm
Common Connection Anode
Mounting Type Through Hole
External Dimensions 6 x 7.4mm
External Width 7.4mm
External Height 6mm
Luminous Intensity 3 mcd
Colour of Face Grey
Power Dissipation 400mW
Forward Voltage 2 V
Maximum Operating Temperature +85°C
Operating Temperature Range -40 → +85°C
Forward Current 17mA
Decimal Orientation Right Side
Minimum Operating Temperature -40°C
Tillfälligt slut i lager – restorder för leverans 2020-06-08
Pris (ex. moms) Each (In a Box of 500)
7,195 kr
(exkl. moms)
8,994 kr
(inkl. moms)
Enheter
Per unit
Per Box*
500 - 1000
7,195 kr
3 597,50 kr
1500 - 2000
6,835 kr
3 417,50 kr
2500 - 4500
6,531 kr
3 265,50 kr
5000 - 9500
6,363 kr
3 181,50 kr
10000 +
6,204 kr
3 102,00 kr
