EPCOS 10 μH ±10% Ferrite Leaded Inductor, Max SRF:35MHz, Q:70, 680mA Idc, 490mΩ Rdc, BC
- RS-artikelnummer:
- 167-8350
- Tillv. art.nr:
- B78108S1103K000
- Tillverkare / varumärke:
- EPCOS
Tillfälligt slut i lager – restorder för leverans 2024-07-22
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 5000)
1,444 kr
(exkl. moms)
1,805 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 5000 + | 1,444 kr | 7 220,00 kr |
- RS-artikelnummer:
- 167-8350
- Tillv. art.nr:
- B78108S1103K000
- Tillverkare / varumärke:
- EPCOS
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

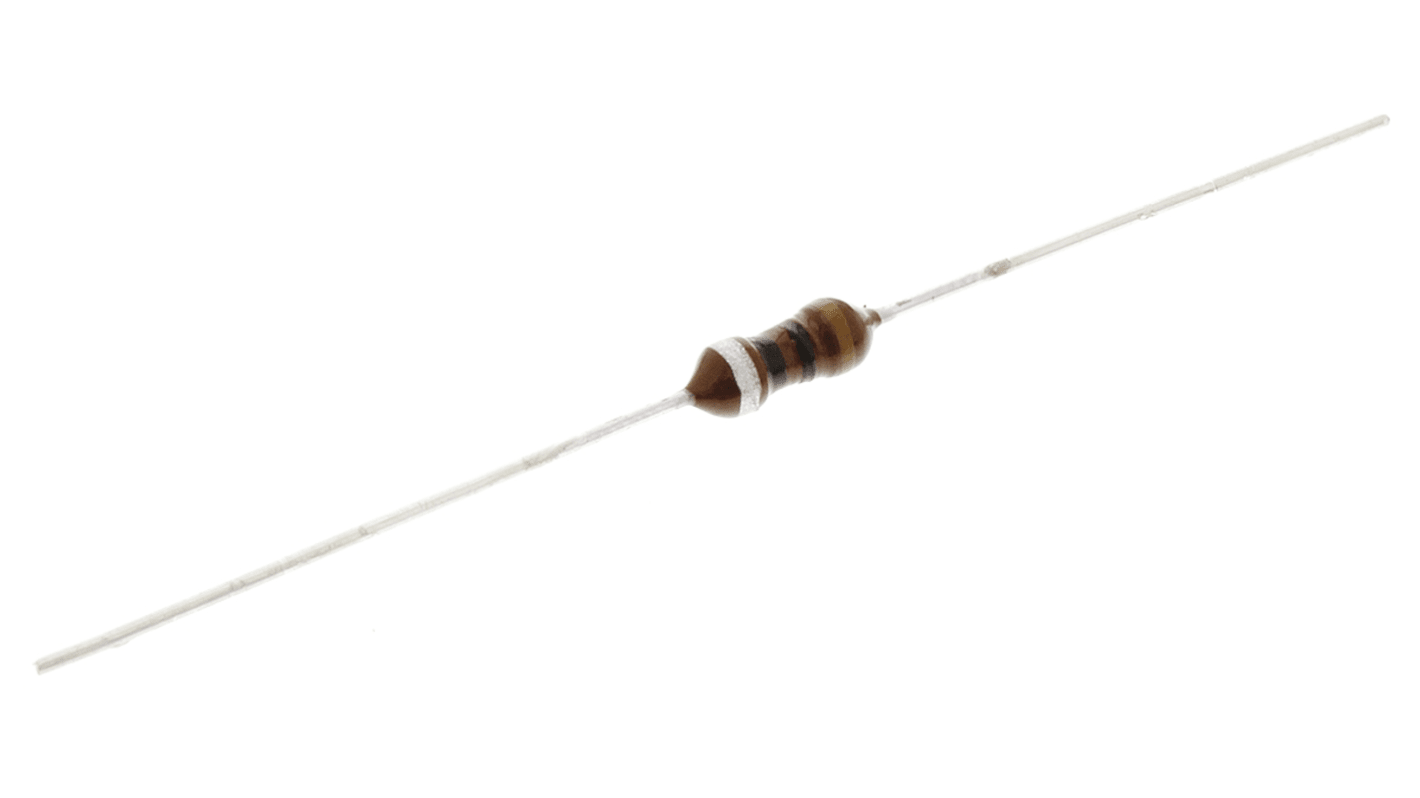

Epcos B78108S BC Series Axial Inductors
Consists of a large ferrite drum core with enamel copper wire winding with a flame-retardant lacquer coating
Suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems, energy saving lamps and automotive electronics
LBC type also suitable for telecommunications (16 kHz blocking filter)
Inductance indicated by colour bands in accordance with IEC 62 (μH)
Suitable for RF blocking and filtering, decoupling and interference suppression, antenna systems, energy saving lamps and automotive electronics
LBC type also suitable for telecommunications (16 kHz blocking filter)
Inductance indicated by colour bands in accordance with IEC 62 (μH)
Specifikationer
Attribute | Value |
|---|---|
| Inductance | 10 μH |
| Maximum DC Current | 680mA |
| Mounting Type | Axial |
| Maximum DC Resistance | 490mΩ |
| Tolerance | ±10% |
| Diameter | 4mm |
| Length | 11.5mm |
| Dimensions | 4 (Dia.) x 11.5mm |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 35MHz |
| Series | BC |
| Minimum Quality Factor | 70 |
