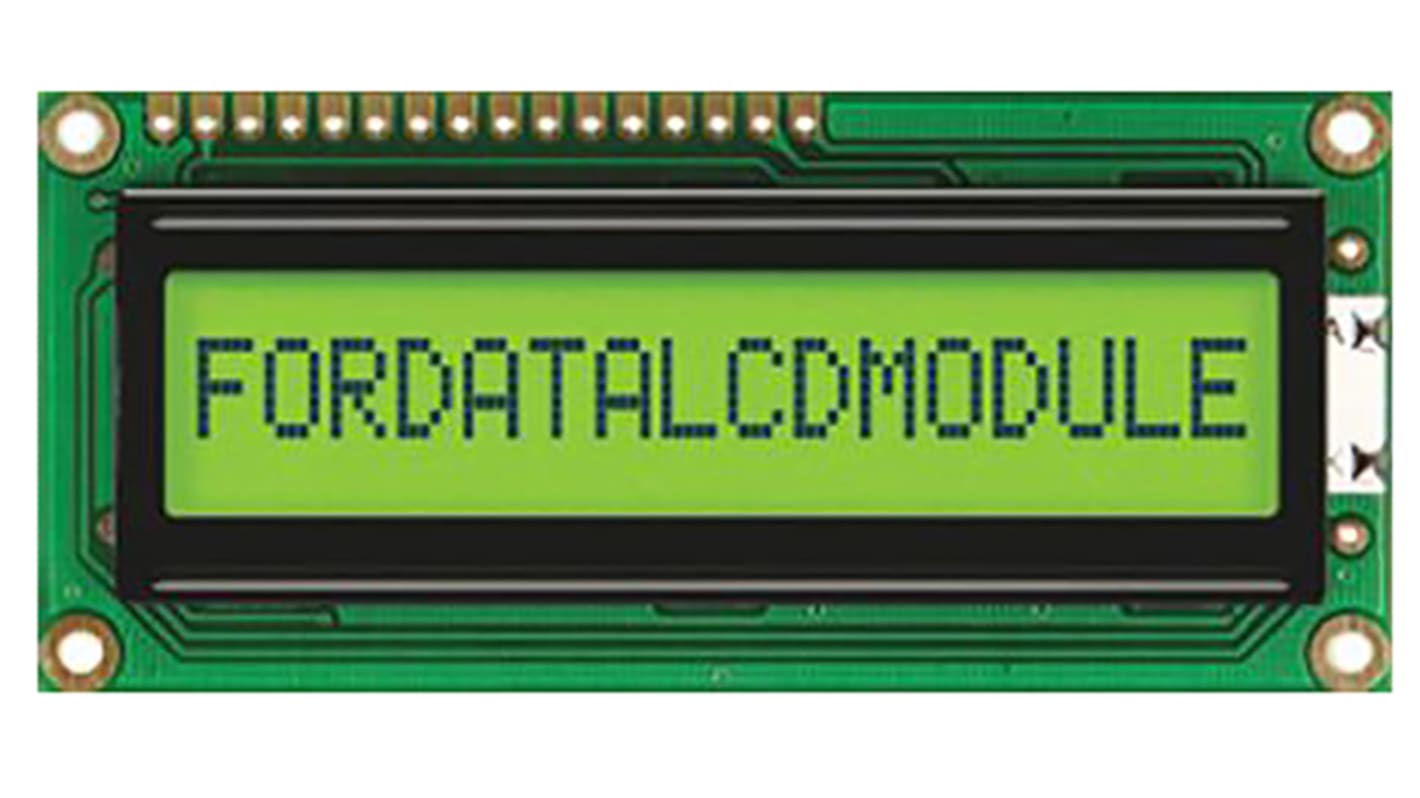

Fordata FC1601E01-FHYYBW-51SE FC Alphanumeric LCD Alphanumeric Display, Green, Yellow on Yellow-Green, 1 Row by 16
- RS-artikelnummer:
- 171-1661
- Tillv. art.nr:
- FC1601E01-FHYYBW-51SE
- Tillverkare / varumärke:
- Fordata
1170 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 45)
101,671 kr
(exkl. moms)
127,089 kr
(inkl. moms)
| Enheter | Per unit | Per Box* |
| 45 - 180 | 101,671 kr | 4 575,195 kr |
| 225 - 405 | 99,026 kr | 4 456,17 kr |
| 450 + | 96,589 kr | 4 346,505 kr |
- RS-artikelnummer:
- 171-1661
- Tillv. art.nr:
- FC1601E01-FHYYBW-51SE
- Tillverkare / varumärke:
- Fordata
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Fordata Transflective Alphanumeric LCD Display STN
The transflective Fordata display series boasts an LED backlit LCD screen presenting crisp and clear text over a green background with a yellow illumination. Its STN display matrix technology enables the screen to function at less power and runs at just 5 V. The monochrome passive-matrix display has superior characteristics against its TN predecessor with a 180° to 270° twisted display molecule over the 90° twist in standard TN displays.
5 x 8 dots with cursor
Build-in controller
Power supply +5 V
1/16 duty cycle
Build-in controller
Power supply +5 V
1/16 duty cycle
Note
Reverse voltage polarity connection causes irreparable damage.
Caution
Observe ANTI-STATIC precautions when storing or handling these LCD modules.
Fordata Alphanumeric Displays
Specifikationer
Attribute | Value |
|---|---|
| Display Type | Alphanumeric |
| Character Matrix | 1 Row by 16 Characters |
| Characters per Row | 16 |
| Character Rows | 1 |
| Character Height | 6.6mm |
| Character Width | 3.1mm |
| Viewing Area Dimensions | 65 x 14mm |
| Viewing Area Width | 64.5mm |
| Viewing Area Height | 13.8mm |
| External Depth | 10.1mm |
| Illumination Colour | Green, Yellow |
| Backlight Type | LED |
| Background Colour | Yellow-Green |
| External Height | 36mm |
| External Width | 80mm |
| External Dimensions | 80 x 36 x 10.1mm |
| Controller Type | SPLC780D |
| Display Matrix Technology | STN |
| Display Mode | Transflective |
| Minimum Operating Temperature | -20°C |
| Voltage Rating | 5.5V |
| Maximum Operating Temperature | +70°C |
| Series | FC |
| Driver Mounting | COB |
| Current Rating | 4mA |
| Operating Temperature Range | -20 → +70°C |
