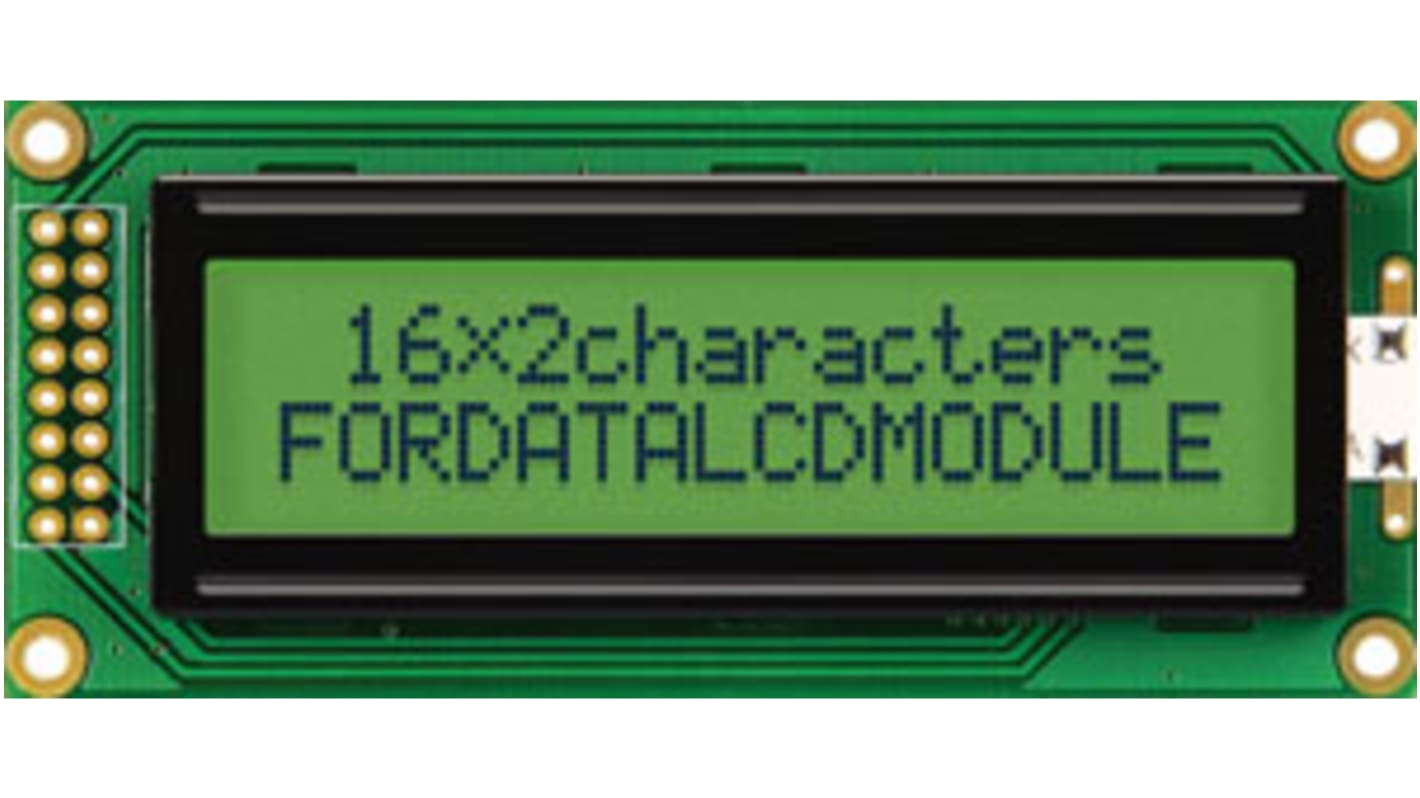

Fordata FC1602B01-RNNYBW-66SE FC LCD LCD Graphic Display, Green, Yellow on, 2 Rows by 16 Characters, Reflective
- RS-artikelnummer:
- 163-1910
- Tillv. art.nr:
- FC1602B01-RNNYBW-66SE
- Tillverkare / varumärke:
- Fordata
45 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 45)
108,277 kr
(exkl. moms)
135,346 kr
(inkl. moms)
| Enheter | Per unit | Per Box* |
| 45 - 45 | 108,277 kr | 4 872,465 kr |
| 90 + | 105,571 kr | 4 750,695 kr |
- RS-artikelnummer:
- 163-1910
- Tillv. art.nr:
- FC1602B01-RNNYBW-66SE
- Tillverkare / varumärke:
- Fordata
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
5x8 Dots with cursor
Built-in controller (SPLC780D or Equivalent)
+5.0V power supply (Also available for +3.0V)
1/16 duty cycle
4-bit or 8-bit MPU interface
BKL to be driven by PIN1,PIN2,or PIN15,PIN16,or A,K
Built-in controller (SPLC780D or Equivalent)
+5.0V power supply (Also available for +3.0V)
1/16 duty cycle
4-bit or 8-bit MPU interface
BKL to be driven by PIN1,PIN2,or PIN15,PIN16,or A,K
Specifikationer
Attribute | Value |
|---|---|
| Display Type | LCD |
| Character Matrix | 2 Rows by 16 Characters |
| Character Rows | 2 |
| Characters per Row | 16 |
| Character Width | 3mm |
| Character Height | 5.8mm |
| Viewing Area Dimensions | 63 x 16mm |
| Viewing Area Height | 16.4mm |
| Viewing Area Width | 63mm |
| External Depth | 9.5mm |
| Illumination Colour | Green, Yellow |
| External Width | 85mm |
| External Height | 36mm |
| External Dimensions | 85 x 9.5 x 36mm |
| Controller Type | SPLC780D |
| Display Mode | Reflective |
| Display Matrix Technology | STN |
| Voltage Rating | 5.5V |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Driver Mounting | COB |
| Current Rating | 4mA |
| Series | FC |
| Operating Temperature Range | -20 → +70°C |
