- RS-artikelnummer:
- 135-9754
- Tillv. art.nr:
- MC42005A6W-FPTLW-V2
- Tillverkare / varumärke:
- Midas
19 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
220,66 kr
(exkl. moms)
275,82 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 220,66 kr |
5 - 9 | 198,78 kr |
10 + | 185,43 kr |
- RS-artikelnummer:
- 135-9754
- Tillv. art.nr:
- MC42005A6W-FPTLW-V2
- Tillverkare / varumärke:
- Midas
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

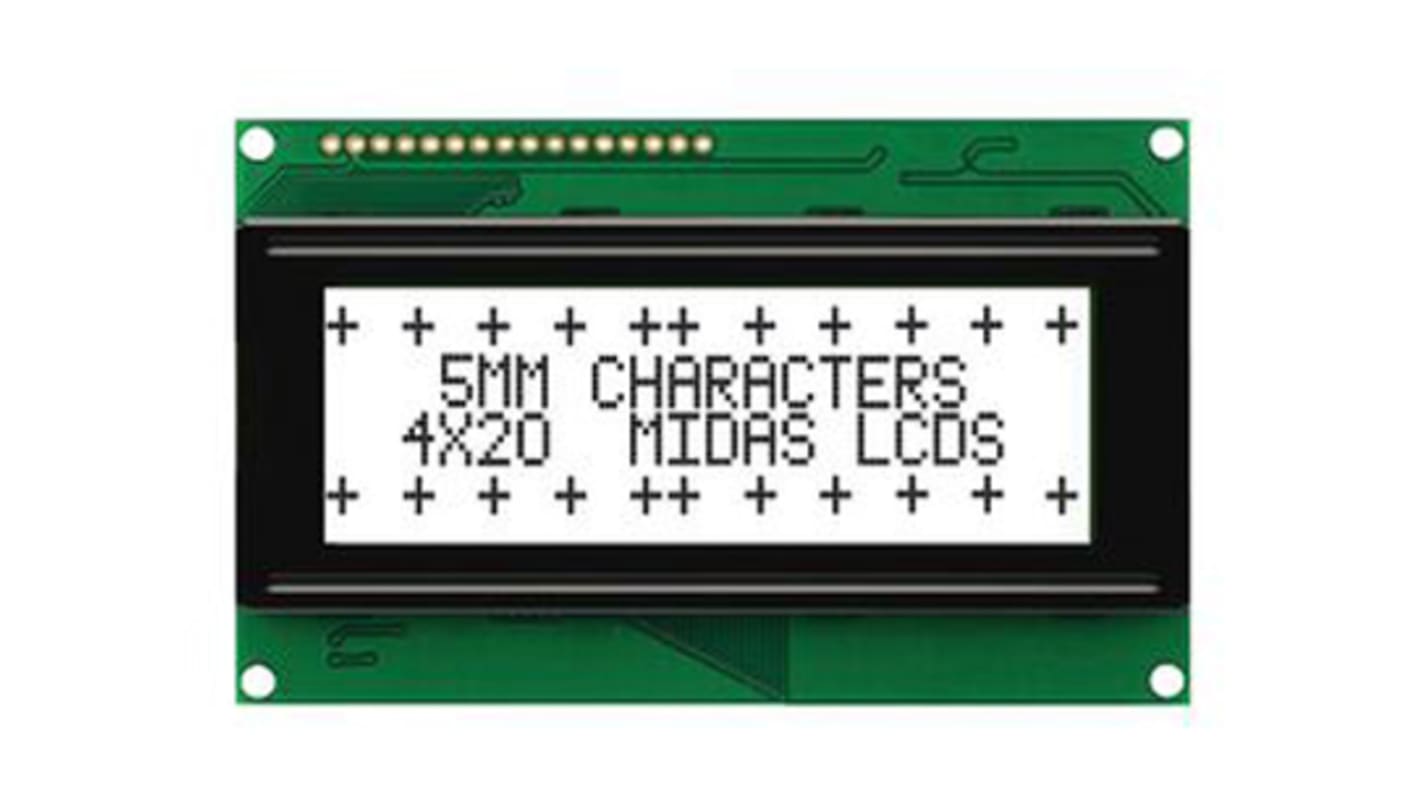

Midas Character COB LCD Displays
This series of character LCD displays, from Midas Displays, have chip-on-board (COB) mechanical construction. The LCD displays are available in 16, 20 and 40 character options with super twisted nematic (STN) or film compensated super twisted nematic (FSTN) technologies. Alternative appearances are created with positive and negative modes available in the COB LCD displays. The majority of character LCD controllers come with conventional interface equivalent to HD44780 and include standard on board character sets. In order to meet the demands of customer applications the COB LCD displays are available with a viewing angle of 6 o'clock.
Chip-on-board (COB) LCD display
Parallel interface
Operational temperature -20 to +70 °C
STN and FSTN display options
Parallel interface
Operational temperature -20 to +70 °C
STN and FSTN display options
Midas Alphanumeric Displays
Specifikationer
Attribute | Value |
---|---|
Display Type | Alphanumeric |
Character Matrix | 4 Rows by 20 Characters |
Characters per Row | 20 |
Character Rows | 4 |
Character Height | 4.8mm |
Character Width | 3mm |
Viewing Area Height | 26mm |
Viewing Area Width | 76mm |
Viewing Area Dimensions | 76 x 26mm |
Interface Type | 8-bit |
External Depth | 60mm |
Backlight Type | LED |
Background Colour | White |
External Dimensions | 98 x 60 x 14.5mm |
External Height | 14.5mm |
External Width | 98mm |
Display Matrix Technology | FSTN |
Display Mode | Transflective |
Voltage Rating | 4.7 → 5.5V |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -20°C |
Driver Mounting | COB |
Series | A |
Operating Temperature Range | -20 → +70°C |
Current Rating | 1.5mA |
