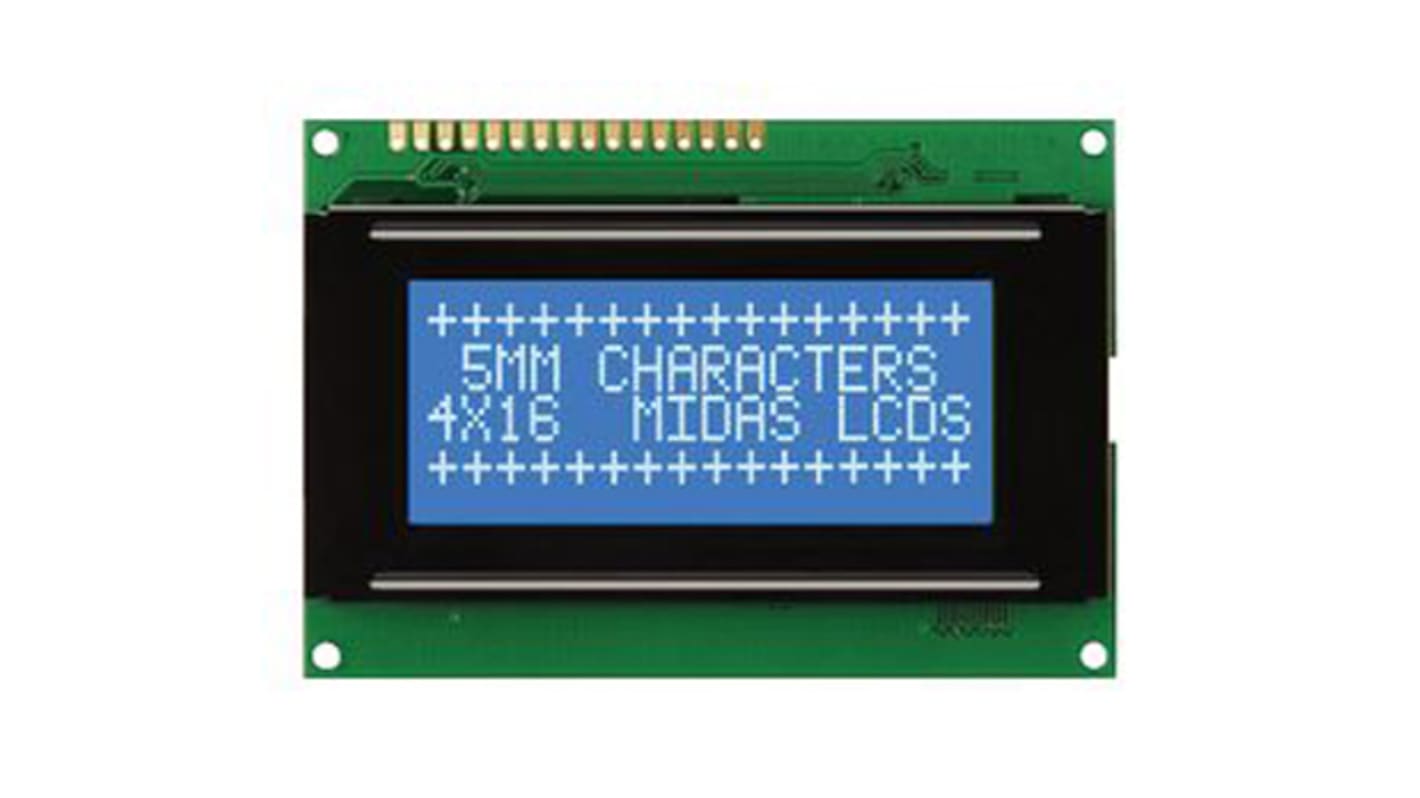

Midas MC41605A6W-BNMLW-V2 A Alphanumeric LCD Display, Blue on White, 4 Rows by 16 Characters, Transmissive
- RS-artikelnummer:
- 135-9748
- Tillv. art.nr:
- MC41605A6W-BNMLW-V2
- Tillverkare / varumärke:
- Midas
41 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
201,62 kr
(exkl. moms)
252,02 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 201,62 kr |
5 - 9 | 181,43 kr |
10 + | 165,35 kr |
- RS-artikelnummer:
- 135-9748
- Tillv. art.nr:
- MC41605A6W-BNMLW-V2
- Tillverkare / varumärke:
- Midas
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Midas Character COB LCD Displays
This series of character LCD displays, from Midas Displays, have chip-on-board (COB) mechanical construction. The LCD displays are available in 16, 20 and 40 character options with super twisted nematic (STN) or film compensated super twisted nematic (FSTN) technologies. Alternative appearances are created with positive and negative modes available in the COB LCD displays. The majority of character LCD controllers come with conventional interface equivalent to HD44780 and include standard on board character sets. In order to meet the demands of customer applications the COB LCD displays are available with a viewing angle of 6 o'clock.
Chip-on-board (COB) LCD display
Parallel interface
Operational temperature -20 to +70 °C
STN and FSTN display options
Parallel interface
Operational temperature -20 to +70 °C
STN and FSTN display options
Midas Alphanumeric Displays
Specifikationer
Attribute | Value |
---|---|
Display Type | Alphanumeric |
Character Matrix | 4 Rows by 16 Characters |
Characters per Row | 16 |
Character Rows | 4 |
Character Width | 3mm |
Character Height | 4.8mm |
Viewing Area Width | 61.8mm |
Viewing Area Dimensions | 62 x 25mm |
Viewing Area Height | 25.2mm |
Interface Type | 8-bit |
External Depth | 14mm |
Background Colour | White |
Illumination Colour | Blue |
Backlight Type | LED |
External Height | 60mm |
External Width | 87mm |
External Dimensions | 87 x 14 x 60mm |
Display Mode | Transmissive |
Display Matrix Technology | STN |
Voltage Rating | 4.7 → 5.5V |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -20°C |
Series | A |
Driver Mounting | COB |
Operating Temperature Range | -20 → +70°C |
Current Rating | 1.5mA |
