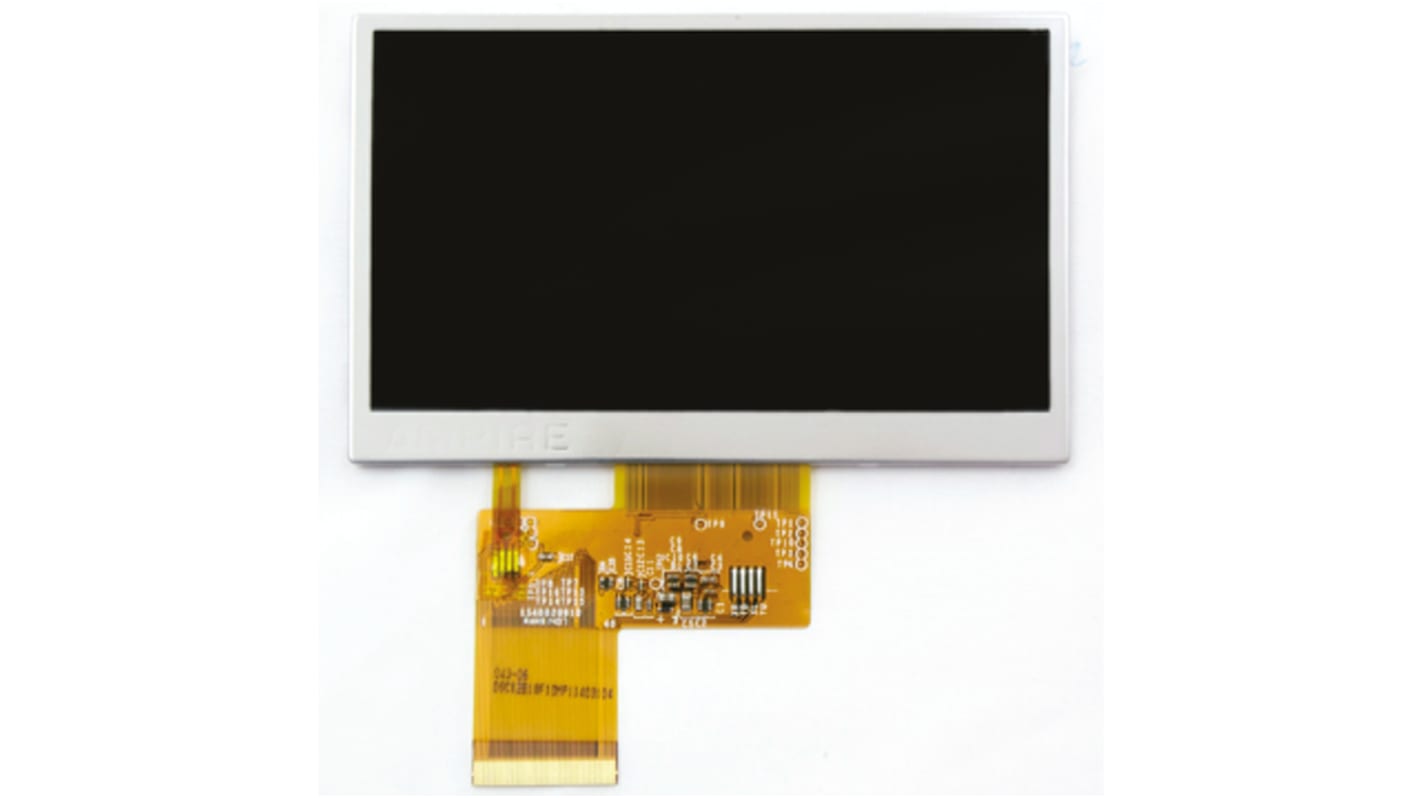

Ampire AM-480272METMQW-02H TFT LCD Colour Display, 4.3in, 480 x 272pixels
- RS-artikelnummer:
- 830-4694
- Tillv. art.nr:
- AM-480272METMQW-02H
- Tillverkare / varumärke:
- Ampire
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Lagt till varukorgen
Pris (ex. moms) Varje
940,46 kr
(exkl. moms)
1 175,58 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 940,46 kr |
- RS-artikelnummer:
- 830-4694
- Tillv. art.nr:
- AM-480272METMQW-02H
- Tillverkare / varumärke:
- Ampire
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
Ampire High Brightness TFT LCD Display Panels
This family of displays, from Ampire, are high brightness TFT LCD displays. They utilise an amorphous silicon TFT-LCD with driver unit, stainless bezel and white LED backlight. The Ampire displays also have a 3.3V built-in power supply circuit. Available in a variety of display sizes, this family of TFT displays are ideal for a wide variety of applications. This family of Ampire displays are good quality and reliable TFT LCD display.
Features of the Ampire high brightness TFT LCD displays:
- TFT LCD (thin film transistor liquid crystal display) modules
- Variety of display sizes
- Colour arrangement: RGB-stripe
- TFT LCD (thin film transistor liquid crystal display) modules
- Variety of display sizes
- Colour arrangement: RGB-stripe
Ampire Colour Graphic Displays
Specifikationer
Attribute | Value |
|---|---|
| Diagonal Display Size | 4.3in |
| Interface Type | Parallel, RGB |
| Resolution | 480 x 272pixels |
| Touch Screen | No |
| Viewing Area Dimensions | 95 x 54mm |
| Supply Voltage | 3.3 V |
| Touch Screen Type | None |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | dc |
| Dimensions | 114.05 x 3.95 x 105.5mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Brightness | 800cd/m² |
| Viewing Area Width | 95.04mm |
| Viewing Area Height | 53.856mm |
| Contrast Ratio | 250:1 |
| Width | 114.05mm |
| Number of Colours | 16,777,216 |
| Operating Temperature Range | -20 → +70°C |
| Depth | 3.95mm |
| Height | 105.5mm |
| Response Time | 40ms |
