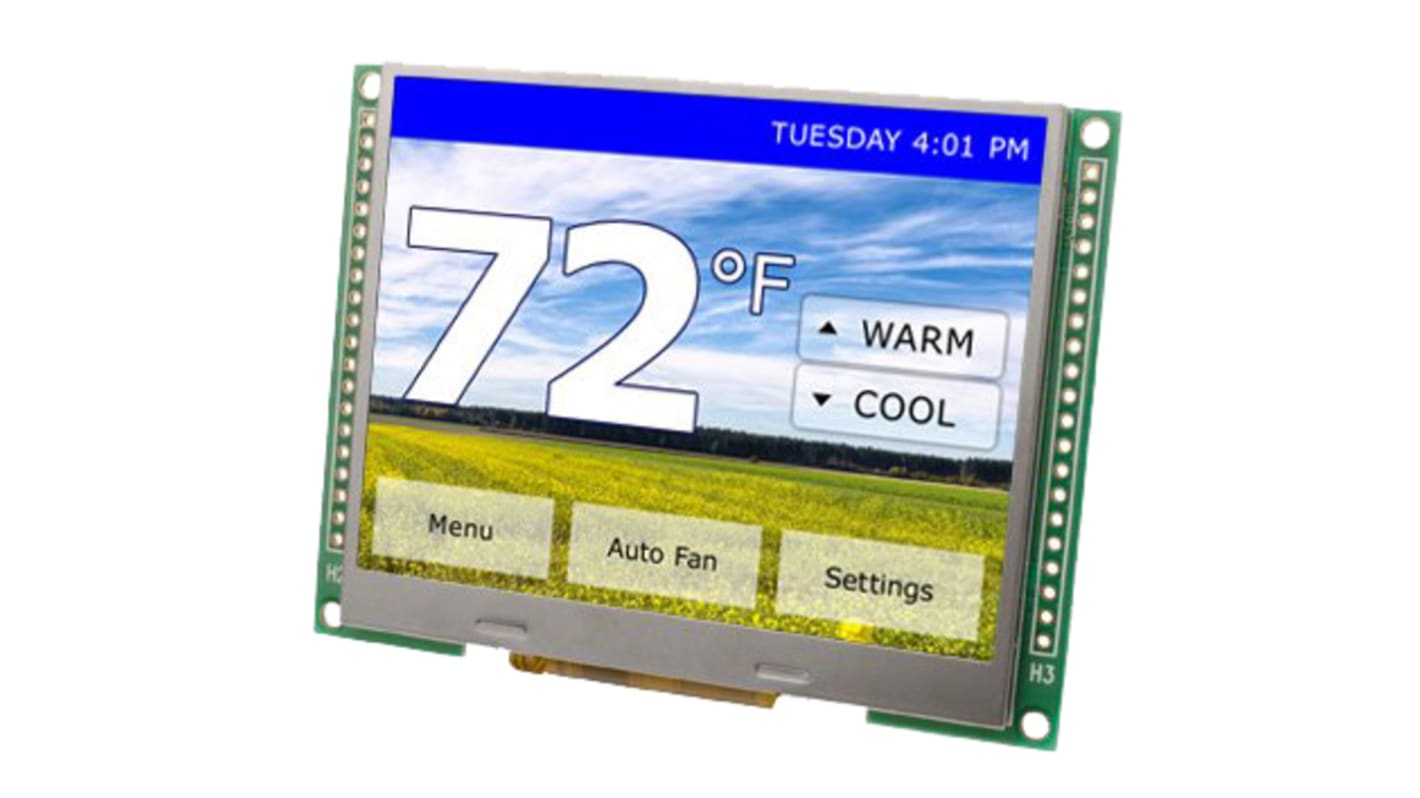

Displaytech INT035TFT-TS TFT LCD Colour Display / Touch Screen, 3.5in QVGA, 320 x 240pixels
- RS-artikelnummer:
- 146-1603
- Tillv. art.nr:
- INT035TFT-TS
- Tillverkare / varumärke:
- Displaytech
350 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 50)
418,31 kr
(exkl. moms)
522,89 kr
(inkl. moms)
| Enheter | Per unit | Per Box* |
| 50 + | 418,31 kr | 20 915,50 kr |
- RS-artikelnummer:
- 146-1603
- Tillv. art.nr:
- INT035TFT-TS
- Tillverkare / varumärke:
- Displaytech
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Displaytech Integrated TFT Modules
A range of integrated TFT LCD modules from Displaytech that overcomes the frustration of ever-changing driver ICs, screens and connection arrangements used in TFT display panels. These Displaytech modules offer designers a stable and versatile platform to work with whilst insulating them from changes made to the elements used within the modules over time. The modules include an auto-initialisation feature that provides a consistent user interface and reduces design time requirements. They are simple to mount and connections are made via two rows of plated-through holes. The smaller displays use the RAIO RA8872 LCD controller and the 3.5 inch displays and larger use the Soloman Systech SSD1963 controller.
• Built-in LCD controller
• LED backlighting with PWM control
• 8080/6800 MCU Interface (selectable)
• Auto-initialisation feature
• Low-power sleep mode
• Screen display rotation
• Touch-panel versions have an embedded 4-Wire Touch-Panel Controller
• LED backlighting with PWM control
• 8080/6800 MCU Interface (selectable)
• Auto-initialisation feature
• Low-power sleep mode
• Screen display rotation
• Touch-panel versions have an embedded 4-Wire Touch-Panel Controller
RAIO RA8872 Controlled Displays
Soloman Systech SSD1963 Controlled Displays
Displaytech Colour LCD Graphic Dispalys
Specifikationer
Attribute | Value |
|---|---|
| Diagonal Display Size | 3.5in |
| Interface Type | 18 Data Bus |
| Resolution | 320 x 240pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 70.08 x 52.56mm |
| Touch Screen Type | Resistive |
| Supply Voltage | 20.4 V |
| Backlight Type | LED |
| Display Mode | Transmissive |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Brightness | 220cd/m² |
| Graphics Array Type | QVGA |
| Number of Colours | 16,777,216 |
| Contrast Ratio | 400:1 |
| Aspect Ratio | 4:3 |
| Response Time | 30ms |
| Height | 66mm |
| Operating Temperature Range | -20 → +70°C |
| Power Supply Included | Yes |
| Width | 87mm |
