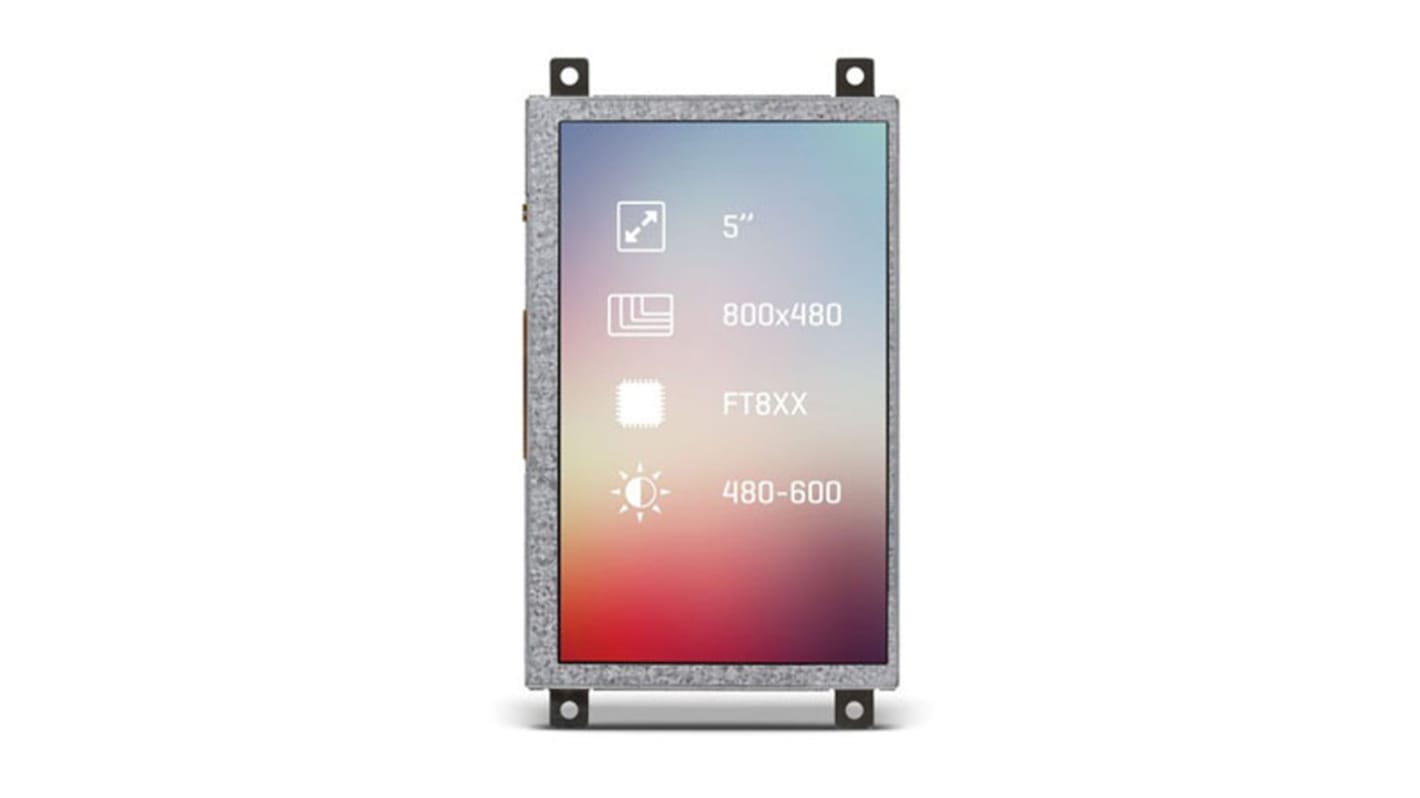

MikroElektronika MIKROE-2169 TFT LCD Colour Display, 5in, 800 x 480pixels

  • RS-artikelnummer 139-3641
  • Tillv. art.nr MIKROE-2169
  • Tillverkare / varumärke MikroElektronika
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CS
Produktdetaljer

Riverdi Colour TFT LCD Displays

A range of high quality, cost effective Riverdi colour TFT LCD displays from MikroElektronika. These portrait format displays are suitable for a wide range of industrial and consumer applications and are available in basic or capacitive touch screen versions. Most of the displays are available with a white or black protective bezel. The interface type is I2C/SPI for the 2.8, 3.5 and 4.3 inch displays, and SPI/QSPI for the 5 and 7 inch displays. A MikroElektronika Riverdi click adapter board is available to allow use of the displays with various items of MikroElektronika hardware, see RS 136-0795.

2.82" Displays, 320 x 240 pixels
MIKROE-2156 (139-3629) – Non touchscreen
MIKROE-2158 (139-3630) – Capacitive Touch
MIKROE-2159 (139-3631) – Capacitive Touch with White Bezel
MIKROE-2160 (139-3632) – Capacitive Touch with Black Bezel

3.5" Displays, 320 x 240 pixels
MIKROE-2161 (139-3633) – Non touchscreen
MIKROE-2163 (139-3635) – Capacitive Touch

4.3" Displays, 480 x 272 pixels
MIKROE-2164 (139-3636) – Non touchscreen
MIKROE-2166 (139-3637) – Capacitive Touch
MIKROE-2167 (139-3638) – Capacitive Touch with White Bezel
MIKROE-2168 (139-3639) – Capacitive Touch with Black Bezel

5.0" Displays, 800 x 480 pixels
MIKROE-2169 (139-3641) – Non touchscreen
MIKROE-2171 (139-3642) – Capacitive Touch
MIKROE-2172 (139-3643) – Capacitive Touch with White Bezel
MIKROE-2173 (139-3644) – Capacitive Touch with Black Bezel

7.0" Displays, 800 x 480 pixels
MIKROE-2174 (139-3645) – Non touchscreen
MIKROE-2176 (139-3646) – Capacitive Touch
MIKROE-2177 (139-3647) – Capacitive Touch with White Bezel
MIKROE-2178 (139-3648) – Capacitive Touch with Black Bezel

MikroElektronika Industrial Displays

Specifikationer
Attribute Value
Diagonal Display Size 5in
Interface Type QSPI, SPI
Resolution 800 x 480pixels
Touch Screen No
Viewing Area Dimensions 108 x 64.8mm
Supply Voltage 3 → 3.6 V
Touch Screen Type None
Backlight Type LED
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 121.5 x 76.6 x 7.06mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Height 76.6mm
Current Rating 363mA
Width 121.5mm
Brightness 600cd/m²
Response Time 20ms
Viewing Area Width 108mm
Contrast Ratio 500:1
Depth 7.06mm
Viewing Area Height 64.8mm
Number of Colours 16,777,216
Operating Temperature Range -20 → +70°C
5 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
701,98 kr
(exkl. moms)
877,48 kr
(inkl. moms)
Enheter
Per unit
1 - 9
701,98 kr
10 - 24
683,99 kr
25 +
666,93 kr
