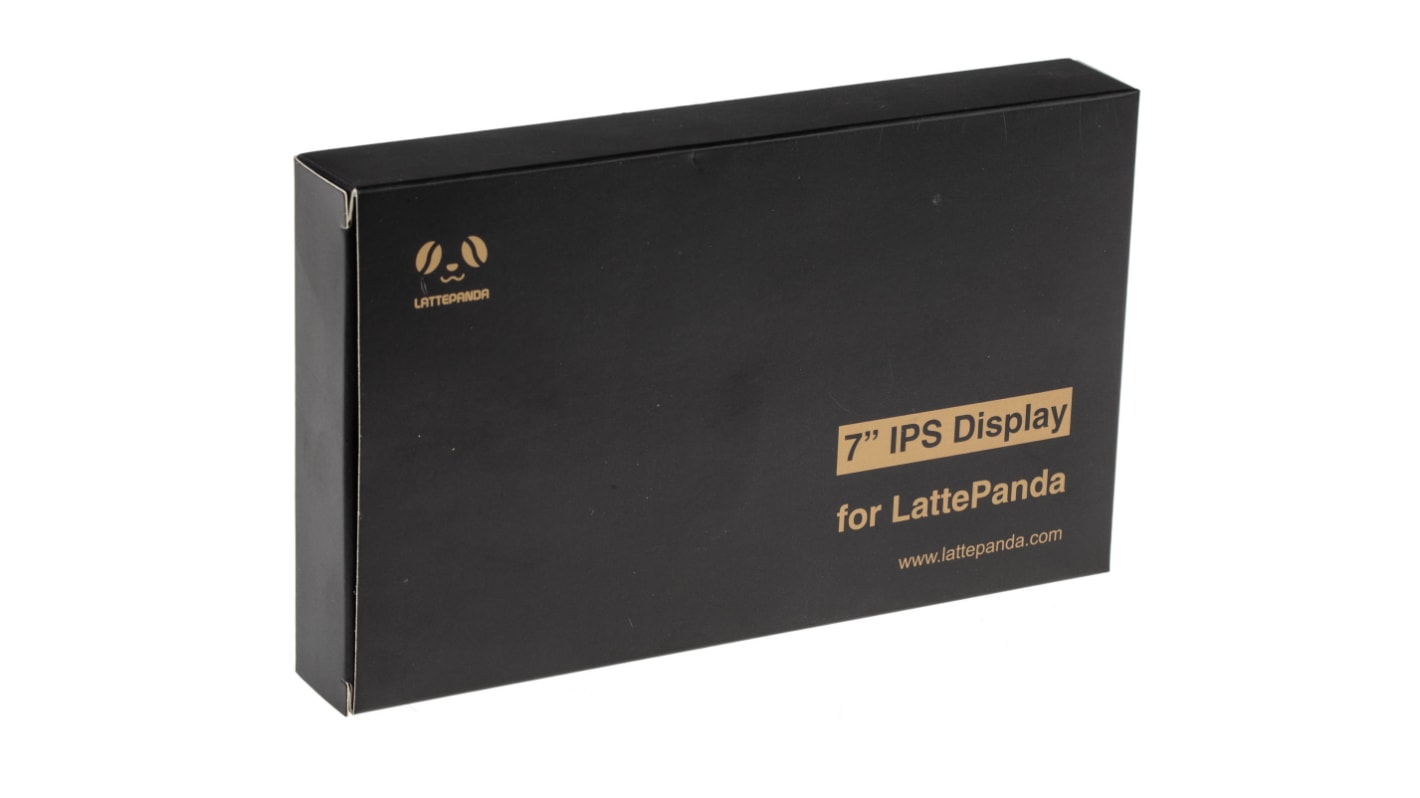

DFRobot FIT0477 IPS TFT LCD Colour Display, 7in WSVGA, 1024 x 600pixels

  • RS-artikelnummer 126-3116
  • Tillv. art.nr FIT0477
  • Tillverkare / varumärke DFRobot
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

7 inch LattePanda IPS LCD Display

This 7 inch IPS display is a perfect add-on for your LattePanda. Set up is quick and easy, simply connect the FPC cable to the display connector on the LattePanda and you are ready to go. The FPC cable connection is able to carry both power and signal so no extra power cables are required. Simplified connection with the single cable not only makes set up easy, but modifications to your LattePanda are made easy without the need to navigate around a web of peripheral cables. What’s more, you can also connect another screen to the HDMI input to give you a sleek dual screen setup for any range of applications.

The border of the display is insulated with black tape to ensure no possibility of a short circuit even without an enclosure. This insulated edge helps to prevent dust ingress to the screens construction to ensure a clear and vibrant screen over time. With a 1024 x 600 pixel resolution, the LattePanta LCD display is crisp and clear ideal for simple read outs such as temperature and humidity monitoring as well as for more visual based image/video content as a streaming screen for TV and movies.

In addition to the various features and functions the 7” LattePanda display has, it also boasts compatibility with the LattePanda official touch screen overlay. This module can be used in conjunction with the 7” display to create even an even more versatile module with even more applications.

Features

• 7 inch IPS display screen
• 1024 x 600 pixel resolution
• 10 cm FPC cable
• Ultra-thin design
• Dimensions: 164.0 x 96.0 x 2.6 mm
• Black insulated screen boarder

Applications

• Monitoring display for sensors systems such as temperature and humidity
• Video screen for streaming Film and TV content
• Games screen for use with LattePanda gaming platforms and peripherals such as joysticks and game pads
• Computing screen for converting LattePanda into a standard computer system with the use of Windows
• Combine with the LattePanda official capacitive touch overlay to create a 7” full 5-finger touch input screen

DFRobot

Specifikationer
Attribute Value
Diagonal Display Size 7in
Interface Type USB
Resolution 1024 x 600pixels
Touch Screen No
Touch Screen Type None
Backlight Type LED
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 164 x 96 x 2.6mm
Display Matrix Technology IPS TFT
Graphics Array Type WSVGA
Width 164mm
Depth 2.6mm
Height 96mm
Aspect Ratio 128:75
Series LattePanda
