Lumberg Jack Connector 2.5 mm Cable Mount Mono Plug, 2Pole 500mA
- RS-artikelnummer:
- 505-1277
- Tillv. art.nr:
- KLS 10
- Tillverkare / varumärke:
- Lumberg
405 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
10,06 kr
(exkl. moms)
12,58 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 10,06 kr |
| 5 - 9 | 9,85 kr |
| 10 - 14 | 9,74 kr |
| 15 - 24 | 9,30 kr |
| 25 + | 9,08 kr |
- RS-artikelnummer:
- 505-1277
- Tillv. art.nr:
- KLS 10
- Tillverkare / varumärke:
- Lumberg
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer

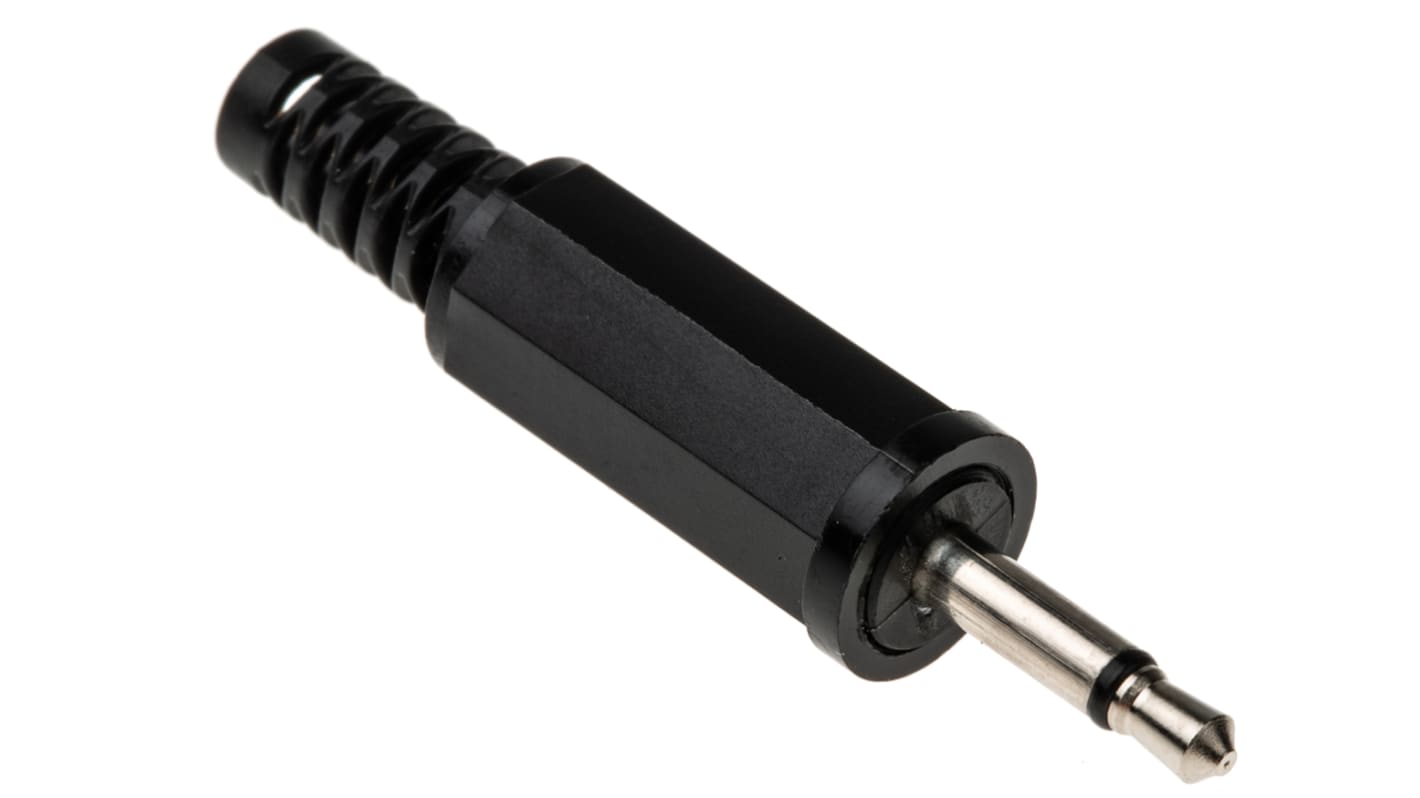

2.5 mm Male Jack Plugs
From Lumberg, this phone audio jack connector is suitable for high quality applications. With an ergonomic hexagonal housing, this cable mounted connector also has an integrated strain relief for bend protection, reducing damage to the connector caused by every day wear and tear.
With a nickel plated contact and insulating body material, the jack plug is cost effective and reliable.
Jack plugs, or phone connectors, are prevalent in domestic and commercial hi-fi applications, but also have uses in computing and commercial public address systems. Where ever a custom audio set up is required, you will likely find a need for jack connectors.
With a nickel plated contact and insulating body material, the jack plug is cost effective and reliable.
Jack plugs, or phone connectors, are prevalent in domestic and commercial hi-fi applications, but also have uses in computing and commercial public address systems. Where ever a custom audio set up is required, you will likely find a need for jack connectors.
Features and Benefits
• Ergonomic Body
• Nickel Plated
• Rated current of 0.5A
• Rated voltage of 34VAC/VDC
• Temperature range from -20°C to 70°C
• Nickel Plated
• Rated current of 0.5A
• Rated voltage of 34VAC/VDC
• Temperature range from -20°C to 70°C
Specifikationer
Attribute | Value |
|---|---|
| Gender | Male |
| Size | 2.5 mm |
| Mounting Type | Cable Mount |
| Type | Mono |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 500mA |
| Housing Material | PP |
| Voltage Rating | 34 V ac/dc |
| Contact Material | Brass |
| No of Poles/ Way | 2 |
