- RS-artikelnummer:
- 166-327
- Tillv. art.nr:
- NP2X
- Tillverkare / varumärke:
- Neutrik
108 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
38,29 kr
(exkl. moms)
47,86 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 38,29 kr |
5 - 9 | 35,99 kr |
10 - 24 | 34,57 kr |
25 - 49 | 32,71 kr |
50 + | 30,41 kr |
- RS-artikelnummer:
- 166-327
- Tillv. art.nr:
- NP2X
- Tillverkare / varumärke:
- Neutrik
Lagstiftning och ursprungsland
- COO (Country of Origin):
- LI
Produktdetaljer

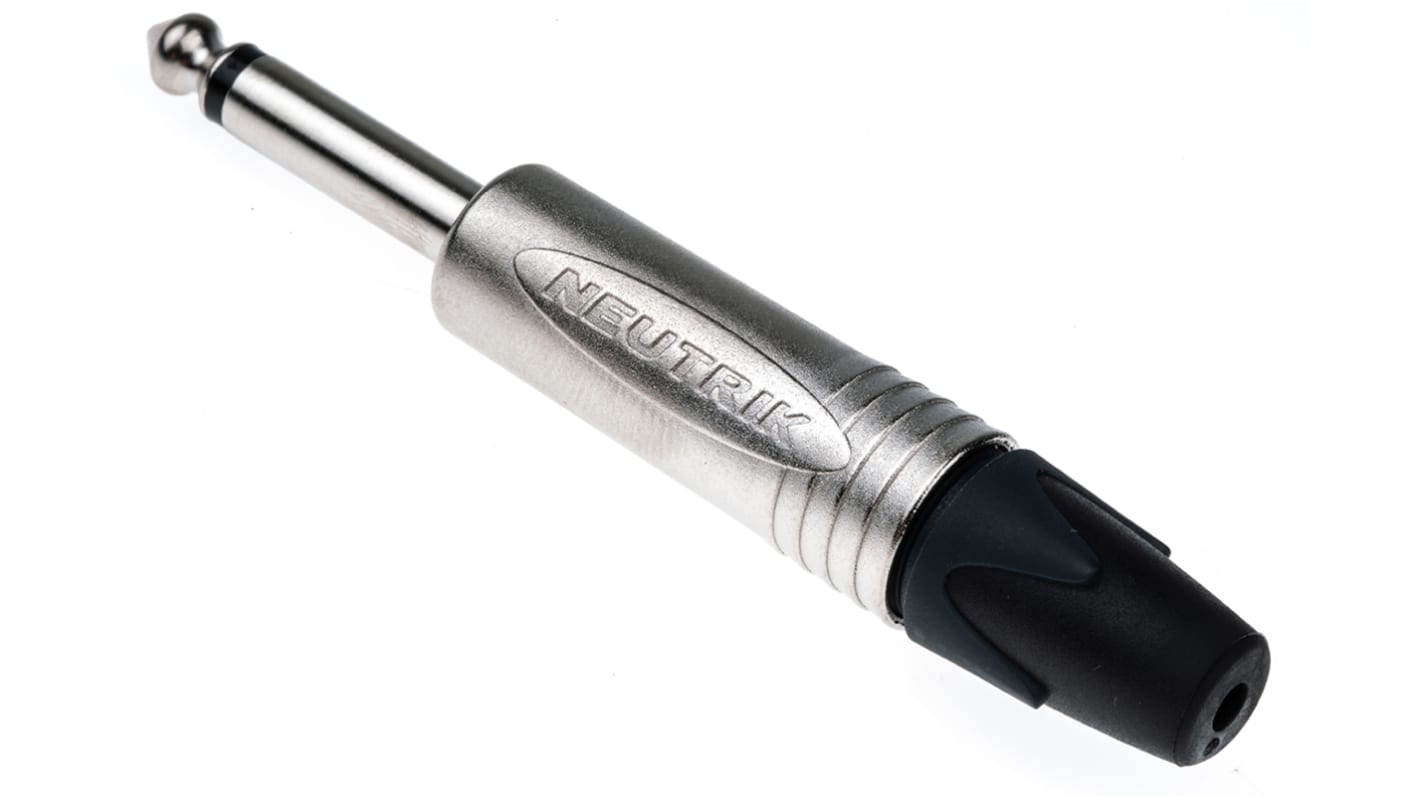

Neutrik Phone Plug
The Neutrik 2-pole 1/4in male mono phone plug has an improved design as compared to the existing C series by offering the thinnest available A-gauge 1/4in plug. The slimline cable mount shell with a width of 14.5mm meets the most recent requirements for high-density jack fields (15.88 mm jack pitch).
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.
Features and Benefits
Voltage rating is 50V and current rating is 15A
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts to avoid hook up of tip contact
Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for handling convenience
Operating temperature ranging between -20°C and 65°C
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts to avoid hook up of tip contact
Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for handling convenience
Operating temperature ranging between -20°C and 65°C
Certifications
IEC 60603-11
EIA RS-453 compliant
IEC 68-2-20
EIA RS-453 compliant
IEC 68-2-20
Specifikationer
Attribute | Value |
---|---|
Gender | Male |
Size | 6.35 mm |
Mounting Type | Cable Mount |
Type | Mono |
Body Orientation | Straight |
Termination Method | Solder |
Current Rating | 15A |
Contact Material | Brass |
No of Poles/ Way | 2 |
