Chauvin Arnoux CA 6524 Insulation & Continuity Tester, 50V Min, 1000V Max, 200GΩ Max, CAT IV - RS Calibration
- RS-artikelnummer:
- 913-6919
- Tillv. art.nr:
- P01140824
- Tillverkare / varumärke:
- Chauvin Arnoux
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
8 176,20 kr
(exkl. moms)
10 220,25 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 8 176,20 kr |
- RS-artikelnummer:
- 913-6919
- Tillv. art.nr:
- P01140824
- Tillverkare / varumärke:
- Chauvin Arnoux
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- FR
Produktdetaljer

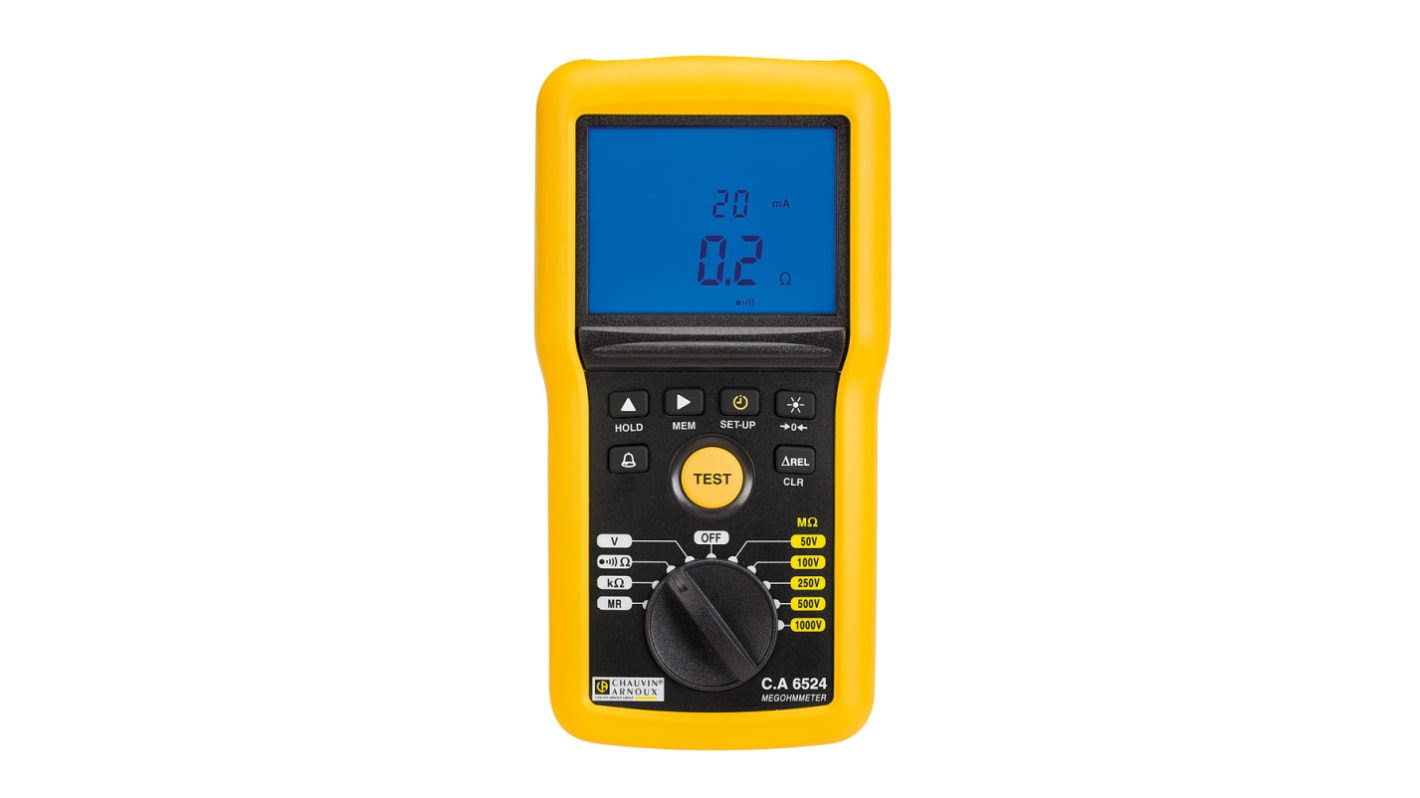

Chauvin Arnoux Insulation and Continuity Testers for Industrial Maintenance
Chauvin Arnoux models C.A 6522, C.A 6524 and C.A 6526 are simple-to-use insulation and continuity testers designed for industrial maintenance operations. They are particularly popular for use in planned periodic insulation tests on installations and equipment. This helps prevent incidents by detecting ageing and the premature deterioration of insulation characteristics.
Features and Benefits
Measurement of insulation over a programmed duration
PI and DAR ratios to determine the quality of the insulation
Storage in memory to compare the measurement histories
Display 2 x 4000 counts + logarithmic bar graph
Compact (211 x 108 x 60 mm) and lightweight (850 g)
Protection to IP 54
PI and DAR ratios to determine the quality of the insulation
Storage in memory to compare the measurement histories
Display 2 x 4000 counts + logarithmic bar graph
Compact (211 x 108 x 60 mm) and lightweight (850 g)
Protection to IP 54
Note
C.A 6526 features Alarms and Pass/Fail indicator light and comes with CD containing Megohmmeter Transfer software.
Supplied with
Carrying bag for hands-free use, elbowed-straight safety leads 1.5 m long (1 red, 1 black) , red crocodile clip, black test probe, batteries (x6), multilingual user manual on CD, quick start-up guide, multilingual safety datasheet
Chauvin Arnoux Insulation Testers
Specifikationer
Attribute | Value |
|---|---|
| Model Number p | CA 6524 |
| Tester Type | Insulation & Continuity Tester |
| Minimum Test Voltage | 50V |
| Maximum Test Voltage | 1000V |
| Maximum Insulation Resistance Measurement | 200GΩ |
| Display Type | Digital |
| Calibrated | RSCAL |
| Test Current | 200mA |
| Battery Type | AA |
| Power Source | Battery |
| Battery Life | 3000 Measurements, 6000 Measurements |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Safety Category Level | CAT IV |
| Safety Category Voltage | 600V |
| Safety Category | CAT IV 600V |
| Length | 108mm |
| Width | 60mm |
| Dimensions | 108 x 60 x 211mm |
| Weight | 850g |
| Height | 211mm |
