Fluke 1577, Insulation Tester 2GΩ CAT III 1000 V, CAT IV 600 V

  • RS-artikelnummer 512-2492
  • Tillv. art.nr FLUKE-1577
  • Tillverkare / varumärke Fluke
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): US
Produktdetaljer

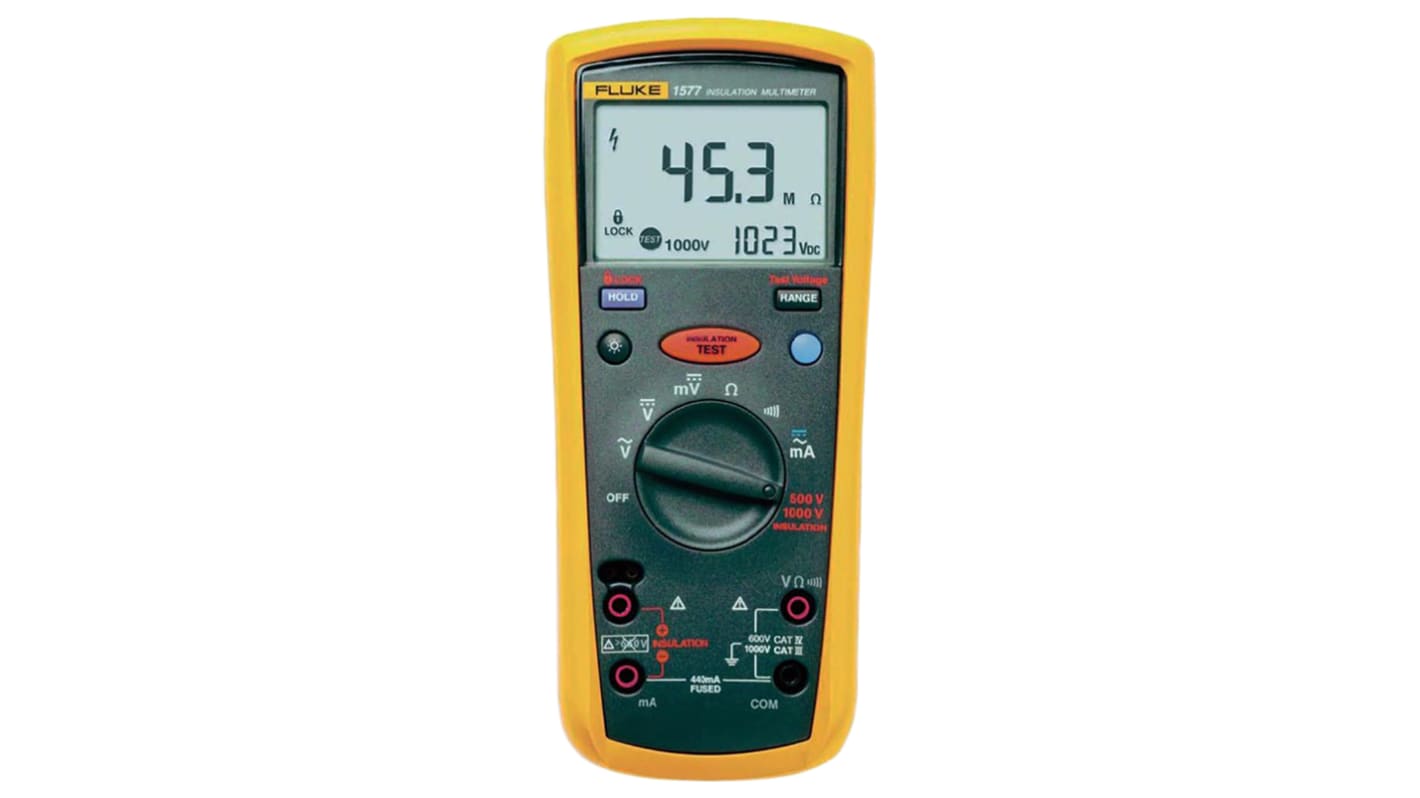

Fluke 1577 & 1587 Insulation Multimeters

The Fluke Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.

Fluke 1577 & 1587

Large display with backlight
Insulation test: 1587: 0.01 MΩ to 2 GΩ. 1577: 0.1 MΩ to 600 MΩ
Insulation test voltages (V) 1587: 50, 100, 250, 500, 1000; 1577: 500, 1000) for many applications
Live circuit detection prevents insulation test if voltage >30V is detected for added user protection
Auto-discharge of capacitive voltage for added user protection
AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (Ω), Continuity
Auto power off
CAT III 1000V, CAT IV 600V measurement category
H. 50 x W. 203 x D.100mm; Wt. 550g

Fluke 1587 additional features:

Filter for motor drive measurements
Capacitance, diode test, temperature, Min/Max, frequency (Hz)
Insulation test smoothing reading
K-type thermocouple

Supplied with

Batteries, remote probe, test leads and probes, alligator clips, instruction manual, rugged utility hard case and (1587 only) K-type thermocouple.

Specifikationer
Attribute Value
Tester Type Insulation Multimeter
Minimum Test Voltage 500V
Maximum Test Voltage 1000V
Maximum Insulation Resistance Measurement 2GΩ
Test Current 1mA
Battery Life 1000 h
Minimum Operating Temperature -20°C
Maximum Operating Temperature +55°C
Power Source Battery
Safety Category Level CAT III, CAT IV
Safety Category Voltage 600 V, 1000 V
Safety Category CAT III 1000 V, CAT IV 600 V
Battery Type AA
Width 100mm
Height 50mm
Dimensions 203 x 100 x 50mm
Length 203mm
Model Number p 1577
Weight 550g
