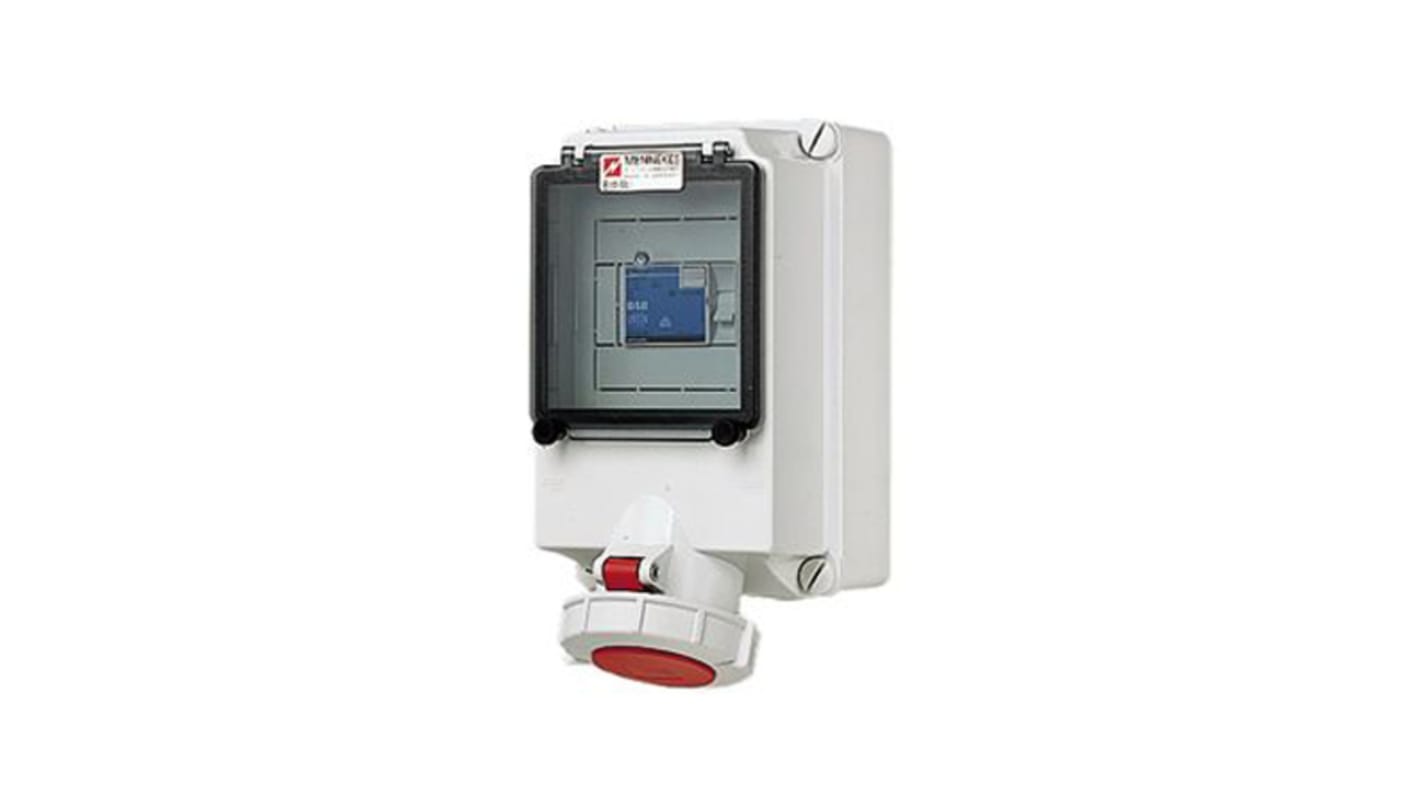

MENNEKES IP67 Red Wall Mount 3P + N + E 20 ° Industrial Power Socket, Rated At 64A, 400 V

RS-artikelnummer:: 111-5509
Tillv. art.nr:: 7170
Tillverkare / varumärke:: MENNEKES

MENNEKES IP67 Red Wall Mount 3P + N + E 20 ° Industrial Power Socket, Rated At 64A, 400 V

2 I lager för avsändande samma dag

Lagt till varukorgen

Pris (ex. moms) Varje

9 105,91 kr

(exkl. moms)

11 382,39 kr

(inkl. moms)

Enheter	Per unit
1 +	9 105,91 kr

RS-artikelnummer:: 111-5509
Tillv. art.nr:: 7170
Tillverkare / varumärke:: MENNEKES

Datablad

Lagstiftning och ursprungsland

COO (Country of Origin):: DE

Produktdetaljer

Wall Mounted Receptacles

From Mennekes, this wall mounted socket features a hinged socket protector and is available in contact arrangements of 3 to 5 Pole. With a vertically oriented socket for a more secure connection, these wall mounted receptacles are well suited to industrial applications.

Note

16/32A suitable for mating with AM-TOP, ProTOP or StarTOP free plugs. 63/125A suitable for mating with PowerTOP plugs.

X-CONTACT

Due to a completely new manufacturing process, the X-CONTACT® sleeve obtains resilient properties based solely on its material characteristics, without the need to use any additional spring elements. Thanks to the shape of the X-CONTACT® sleeve, a particularly safe contact closure can be achieved.

The special design of the X-CONTACT® reduces the effort of insertion and withdrawal by up to 50%. An advantage that simplifies work processes and improves safety especially with high electrical currents. With X-CONTACT®, MENNEKES creates a safe contact closure and easy handling at a new, equally high level.

But how does X-CONTACT® achieve these benefits even with currents of 63 A or 125 A? A glance into the opening of an X-CONTACT® sleeve reveals the intelligent functional principle: the X-shaped slot and groove in the inner wall provides four advantages of the new design: innovative, simple, durable and safe. We call it the X principle

Specifikationer

Attribute	Value
Current Rating	64A
Plug/Socket	Socket
Pole Format	3P + N + E
Voltage Rating	400 V
Mounting Type	Wall Mount
Gender	Female
Body Orientation	20 °
Termination Method	Screw Terminal
IP Rating	IP67
Colour	Red
Cable CSA	6 → 25mm²
Maximum Operating Temperature	+40°C
Minimum Operating Temperature	-25°C
Low Voltage	No
