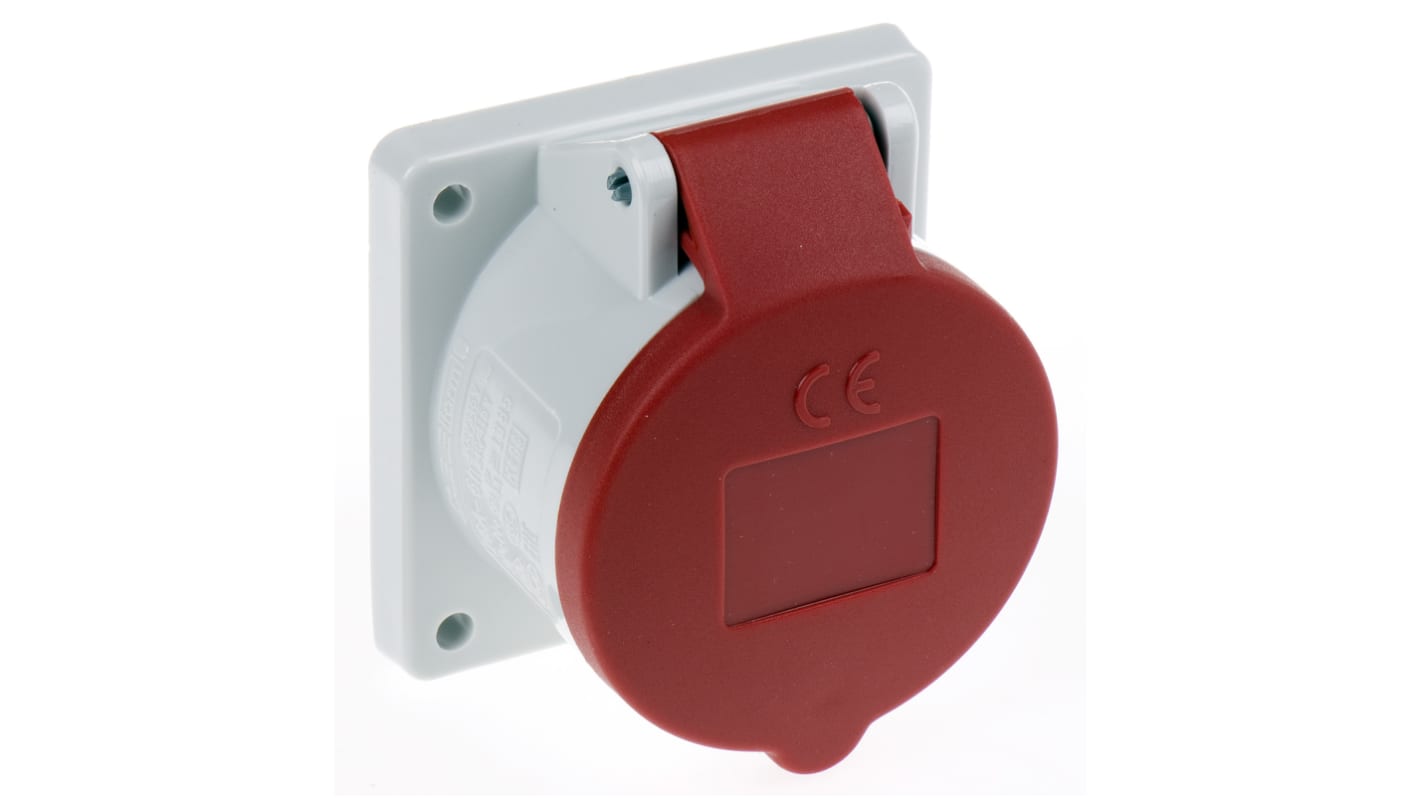

MENNEKES IP44 Red Panel Mount 5P Industrial Power Socket, Rated At 16.0A, 400 V


35 I lager för leverans inom 1 arbetsdagar
Add to Basket

Pris (ex. moms) Each

245,59 kr

(exkl. moms)

306,99 kr

(inkl. moms)

Enheter

Lagt till varukorgen

RS-artikelnummer:
490-059
Tillv. art.nr:
1385
Tillverkare / varumärke:
MENNEKES
COO (Country of Origin):
DE
EnheterPer unit
1 - 4245,59 kr
5 +233,43 kr

Panel Sockets - Large Flange


Spring loaded protection cover with connector retaining device


Mennekes Panel Sockets

Plugs, sockets, appliance inlets and interlocked sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (polycarbonate) for excellent mechanical performance from -25 to +55°C (ambient temperature). This material provides good electrical insulation and will meet the requirements of most industrial environments.
Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage. All types are colour coded by voltage and are suitable for 50/60Hz operation. Products are type tested to VDE.
These through panel mounting sockets are supplied with a spring return cover, which will latch with a mating plug for secure connection.

Features include:

Fully shrouded terminals
Ribbed flange for additional strength
Supplied with sealing gasket

AttributeValue
Current Rating16.0A
Plug/SocketSocket
Pole Format5P
Voltage Rating400 V
Mounting TypePanel Mount
IP RatingIP44
ColourRed
GenderFemale
Body OrientationStraight
Termination MethodScrew Terminal
Cable CSA1.5 → 4mm²
Minimum Operating Temperature-25
Maximum Operating Temperature+55°C
Low VoltageNo
